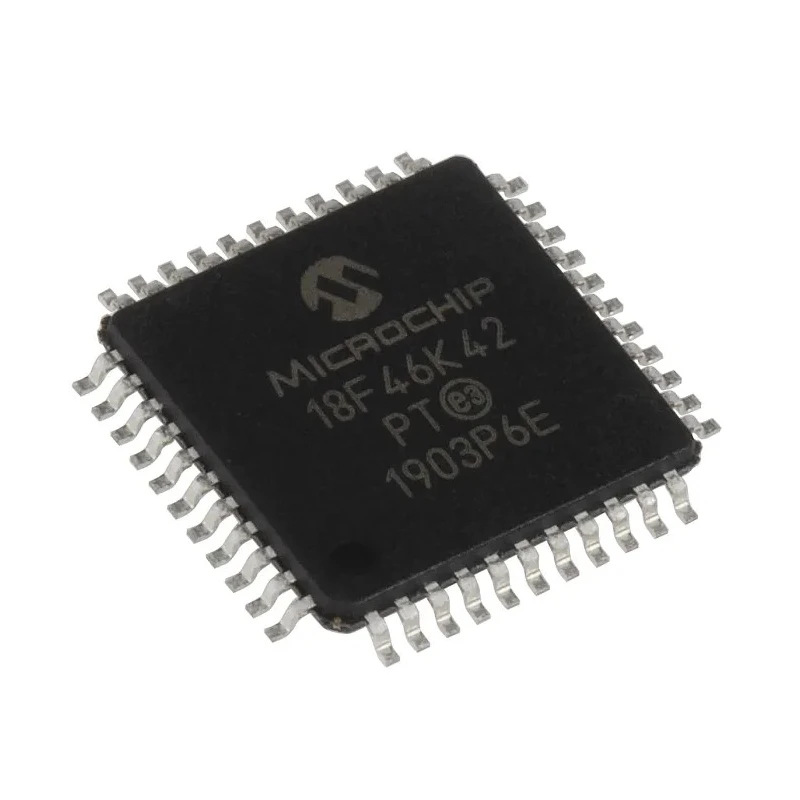

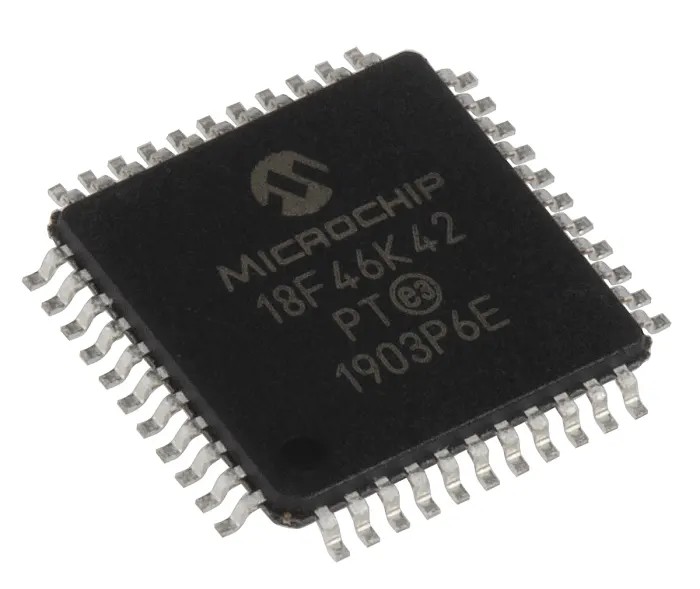

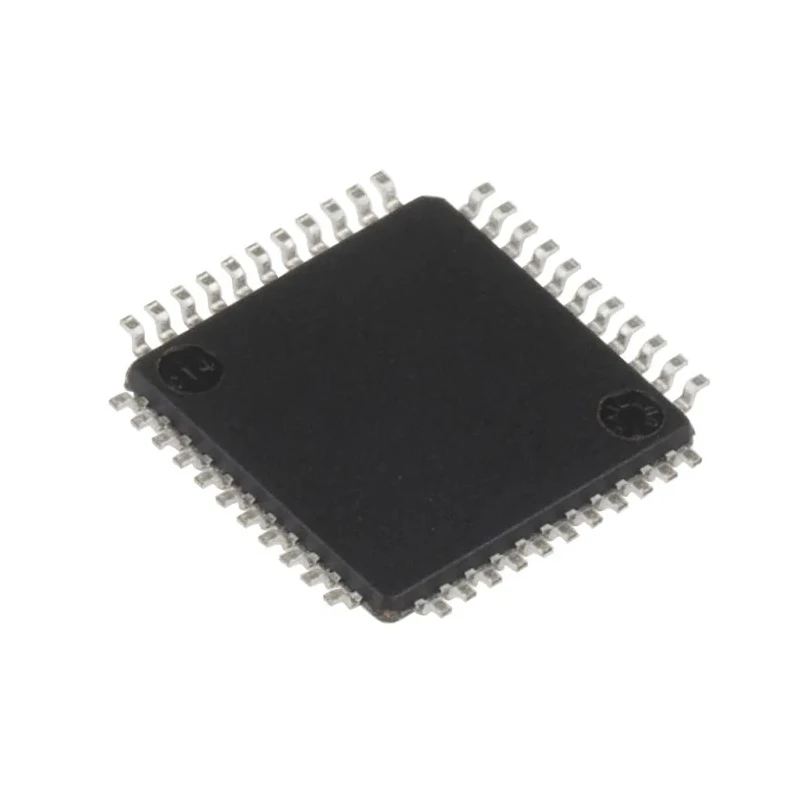

Microchip 8 bit PIC Microcontroller 64 MHz, 64kB FLASH, 4kB SRAM, 44-Pin TQFP PIC18F46K42
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC18F46K42 |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC18F46K42 |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 4kB |
| Standards/Approvals | RoHS |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 64MHz |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 64kB |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 35 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- 44-pin TQFP surface mount package ensures compact integration.
- Supports 1.8V to 5.5V operating voltage range for versatile applications.
- Equipped with 2 analogue comparators and 35-channel 12-bit ADC.
- Includes 2 timers and supports RISC instruction set architecture.
- Maximum power dissipation of 1W supports low power operation.
- Operating temperature from -40°C to 85°C for industrial environments.
- Memory expansion capability up to 64kB for flexible program storage.
- Features asynchronous UART compatible with RS-232 and RS-485 protocols.
Product Description
Microchip PIC18F46K42 8 bit PIC Microcontroller is designed for high performance embedded applications with a maximum clock frequency of 64 MHz. It combines 64kB Flash program memory, 4kB SRAM, and 1kB EEPROM, making it suitable for a wide range of industrial, household appliance, and embedded system use cases.
This 44-pin TQFP surface mount device supports a supply voltage range of 1.8V to 5.5V, allowing for flexible power management. It features 2 analogue comparators and a sophisticated 35-channel 12-bit ADC, providing precise analog input processing. The microcontroller includes 2 timers, supports RISC instruction set architecture, and incorporates a fixed voltage reference module along with device information storage for calibration and identification.
Additional features include asynchronous UART compatible with RS-232 and RS-485 communication standards, direct memory access controllers to reduce CPU overhead during data transfer, and vectored interrupt for faster response times. Operational temperature range spans from -40°C to 85°C, making this device appropriate for demanding industrial and laboratory environments.
Other advanced functionalities encompass programmable priority interrupt handling, zero cross detection, and customizable flash partitioning with bootloader write protection. Its compact 10 mm by 10 mm by 1.05 mm form factor allows integration into space-constrained applications.
44-pin TQFP surface mount package. 64 MHz max clock frequency with RISC architecture. 64kB flash and 4kB SRAM memory capacity. 2 analogue comparators and 35-channel 12-bit ADC. 1W max power dissipation for low power designs.
Operating voltage from 1.8V to 5.5V. Operating temperature from -40°C to 85°C suitable for industrial use. UART with RS-232/RS-485 compatibility. Advanced DMA controllers for efficient data handling. Includes fixed voltage reference and device info area.
This microcontroller is ideal for embedding into household appliances, industrial automation equipment, and other electronic systems requiring reliable processing efficiency and low power consumption. It supports multi-tasking with multiple timers and interrupt capabilities, contributing to enhanced system responsiveness.
Explore a wide range of Microchip Microcontrollers in the Electronics & Electricals category at EnvMart for cutting-edge semiconductor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 64 MHz.
It supports an operating voltage range of 1.8V to 5.5V.
This microcontroller has 64kB of Flash program memory.
The dimensions of this unit are 10 mm in length, 10 mm in width, and 1.05 mm in height.
It includes asynchronous UART compatibility with RS-232 and RS-485 communication protocols.
It is equipped with 4kB of SRAM.
The PIC18F46K42 features 2 analogue comparators.
The operating temperature range spans from -40°C to 85°C, making it suitable for industrial environments.
This microcontroller includes 2 timers.
The maximum power dissipation is 1W, supporting low power operation.
It comes in a 44-pin TQFP (Thin Quad Flat Package) surface mount package.
This microcontroller uses a RISC instruction set architecture.
