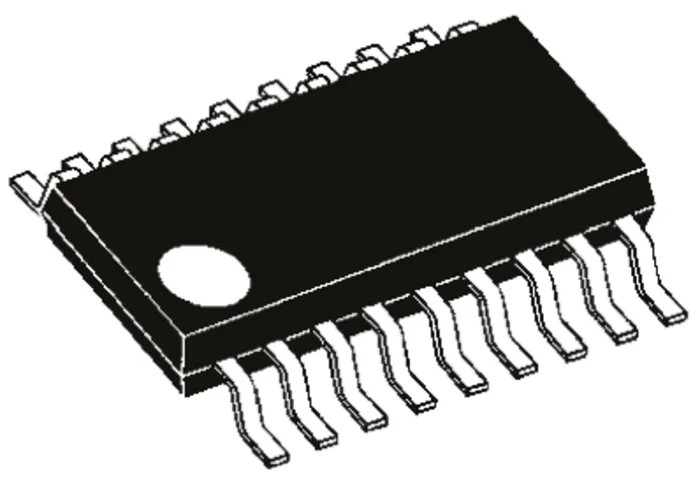

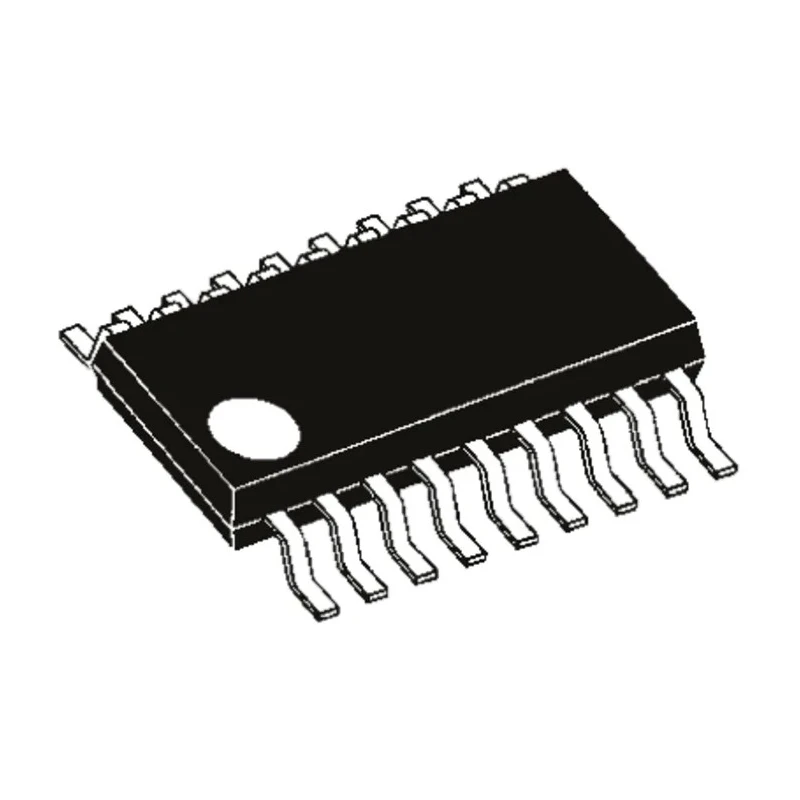

Microchip 8 bit PIC PIC16F8X Microcontroller 4 MHz 1.75kB FLASH 18-Pin SOIC PIC16F84-04/SO
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.36mm |
| Length | 11.73mm |
| Model | PIC16F84-04/SO |
| Width | 7.59mm |
| Mount Type | Surface |
| Series | PIC16F8X |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Ram size | 68bit |
| Interface Type | RS232 |
| Standards/Approvals | RoHS |
| Pin Count | 18 |
| Maximum Supply Voltage | 6V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 1.75kB |
| Maximum Clock Frequency | 4MHz |
| Number of Programmable I/Os | 13 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
Key Features
- Executes instructions every 200 nanoseconds for high performance.
- Contains 33-word instructions with a 2-level deep hardware stack.
- 8-bit data path with a 12-bit wide instruction set architecture.
- Includes a single 8-bit timer and watchdog timer for system control.
- Program memory uses fast and flexible FLASH technology for convenient programming.
- Supports in-circuit debugging for efficient development.
- Operating voltage ranges from 2V to 6V for versatile applications.
- RoHS compliant, ensuring environmental standards compliance.
Product Description
Microchip PIC16F84-04/SO is an 8-bit PIC microcontroller featuring a 4 MHz maximum clock speed and 1.75kB of FLASH program memory, packaged in an 18-pin SOIC surface mount form factor. Designed with a 12-bit instruction set architecture and an 8-bit data bus, this microcontroller executes instructions every 200 nanoseconds, offering efficient processing suitable for diverse embedded applications.
This device integrates 13 programmable I/O pins, a single 8-bit timer, and watchdog timer functionalities to ensure reliable system control and timing operations. The use of FLASH memory technology enables rapid program customization and in-circuit reprogramming convenience, supported by in-circuit debugging features. The microcontroller operates over a wide voltage range of 2V to 6V, supporting various power conditions with a maximum power dissipation of 800mW.
The compact dimensions of 11.73 mm length, 7.59 mm width, and 2.36 mm height make it ideal for surface mount applications where space is at a premium. Compliance with RoHS environmental directives guarantees safer usage in modern electronic manufacturing. Its robust instruction set combined with a low operating temperature range from 0°C to 70°C makes it suitable for numerous industrial and automotive uses.
Typical applications include high speed automotive controls, appliance motor control, and low power transmitter and receiver systems. Additional accessories, including PICkit debugger and MPLAB programmers, enhance development and prototyping workflows.
Executes instructions every 200 nanoseconds for rapid processing. Features 33 instructions with 2-level deep hardware stack. Utilizes 12-bit wide instructions and an 8-bit data path. Includes 13 programmable I/O pins for flexible interfacing.
Supports in-circuit debugging for ease of development. Operates between 2V and 6V supply voltage. Compact 18-pin SOIC package ideal for surface mount applications. RoHS compliant for environmental safety. Maximum power dissipation of 800mW.
Operating temperature range from 0°C to 70°C. Explore our Electronics & Electricals category for more Microcontrollers and Semiconductor solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Microchip PIC16F84-04/SO microcontroller has a maximum clock frequency of 4 MHz.
It features a program memory size of 1.75 kB, utilizing FLASH technology for convenient programming.
This model includes 13 programmable I/O pins for flexible interfacing in various applications.
The operating voltage range for this microcontroller is between 2V and 6V, allowing for versatile applications.
The dimensions of the Microchip PIC16F84-04/SO are 11.73 mm in length, 7.59 mm in width, and 2.36 mm in height.
It is packaged in an 18-pin SOIC (Small Outline Integrated Circuit) format, suitable for surface mount applications.
The maximum power dissipation for the PIC16F84-04/SO is 800 mW.
This model operates within a temperature range from 0°C to 70°C, making it suitable for various environments.
Yes, it supports in-circuit debugging, which facilitates efficient development and programming.
The microcontroller utilizes a RISC (Reduced Instruction Set Computing) instruction set architecture.
The PIC16F84-04/SO is RoHS compliant, ensuring it meets environmental safety standards.
The device core of this microcontroller is based on the PIC architecture.
