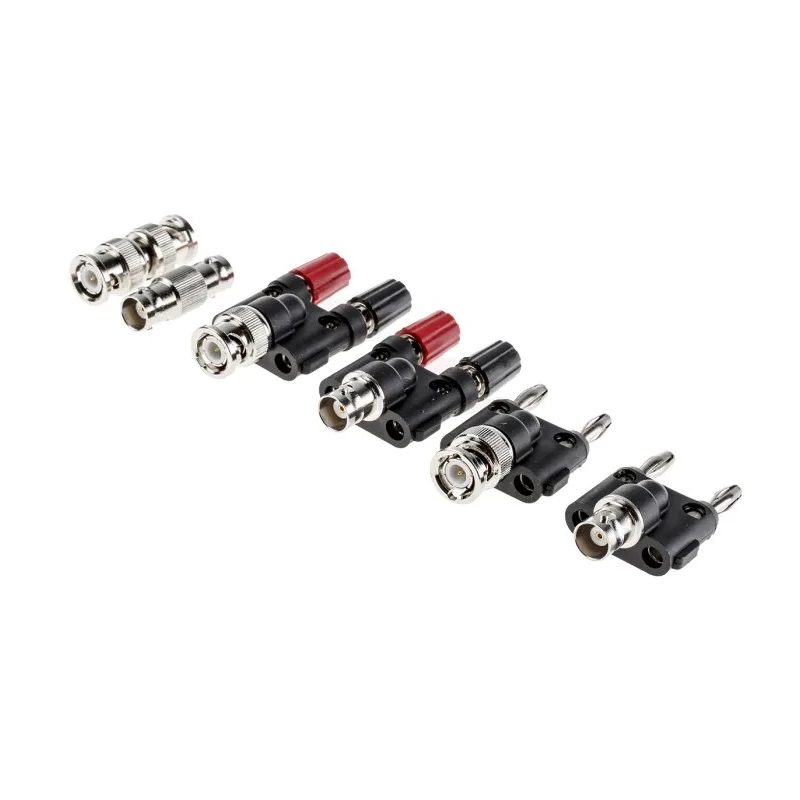

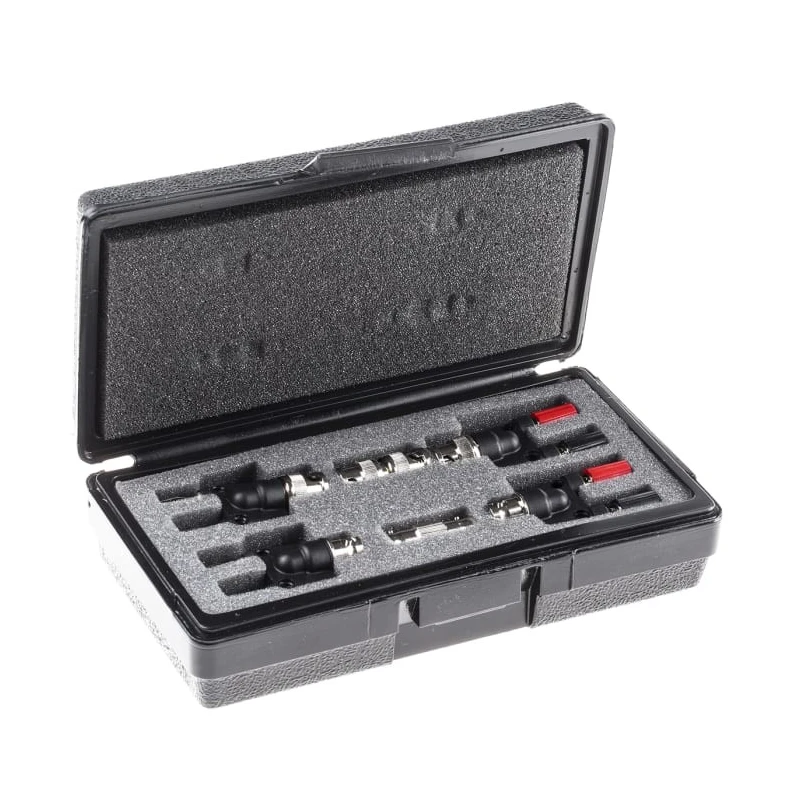

Pomona RF Connector Kit BNC Socket Connector Kit 5510

Pomona 5510 RF Connector Kit is a connector kit featuring a BNC socket designed to adapt coaxial connections for test equipment and bench leads. It supports 50 Ohm impedance and delivers reliable signal integrity.

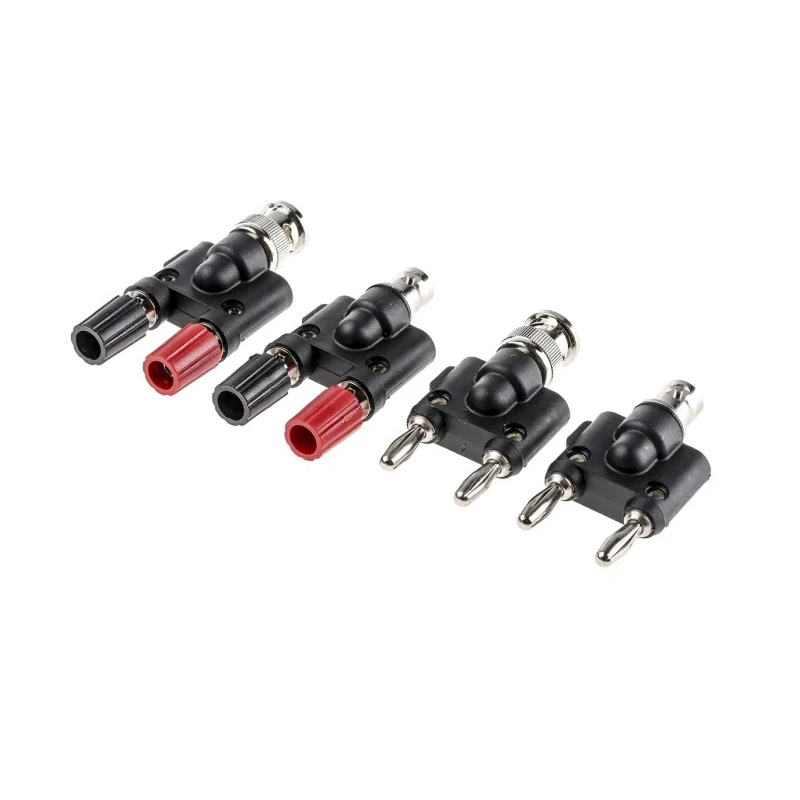

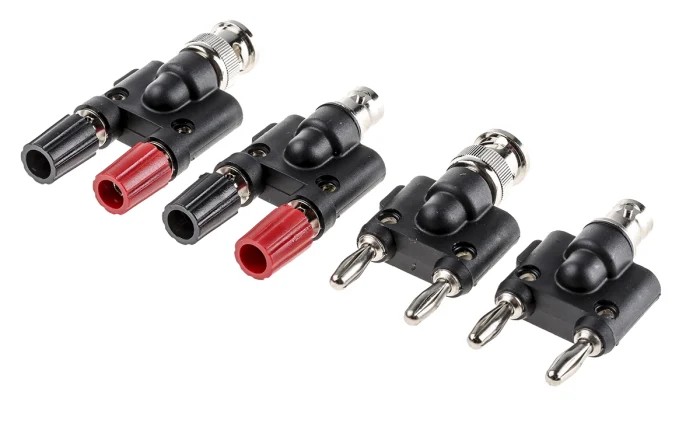

This kit includes a range of BNC and banana plug and binding post interfaces, making it suitable for handheld or hands-free testing within controlled voltage environments. The PTFE dielectric combined with gold-plated contacts reduces contact resistance and signal loss.

The connector kit is rated for a hands-free voltage use of up to 500 VRMS and operates at an ambient temperature up to +50°C for most components, with certain parts capable of withstanding temperatures up to +115°C.

Applications include connecting coaxial BNC to banana plug test leads, linking video and surveillance equipment, and interfacing with bench instruments requiring insulated binding posts.

50 Ohm nominal impedance for matched signal transmission. 500 VRMS hands-free voltage rating for controlled environments. PTFE dielectric and gold-plated contacts ensure low-loss connections. Includes male and female BNC options, insulated binding posts, and stacking banana plugs.

Rated for operation in temperatures up to +115°C for some parts. Suitable for video, surveillance, and bench instrument connectivity. Center contacts are beryllium copper or brass with gold plating. Handheld testing voltage limited to 30 VAC/60 VDC.

This connector kit is ideal for industrial, laboratory, and commercial electronics applications requiring robust RF connectivity solutions. Explore our range of high-quality electronics components for your next project on EnvMart.
