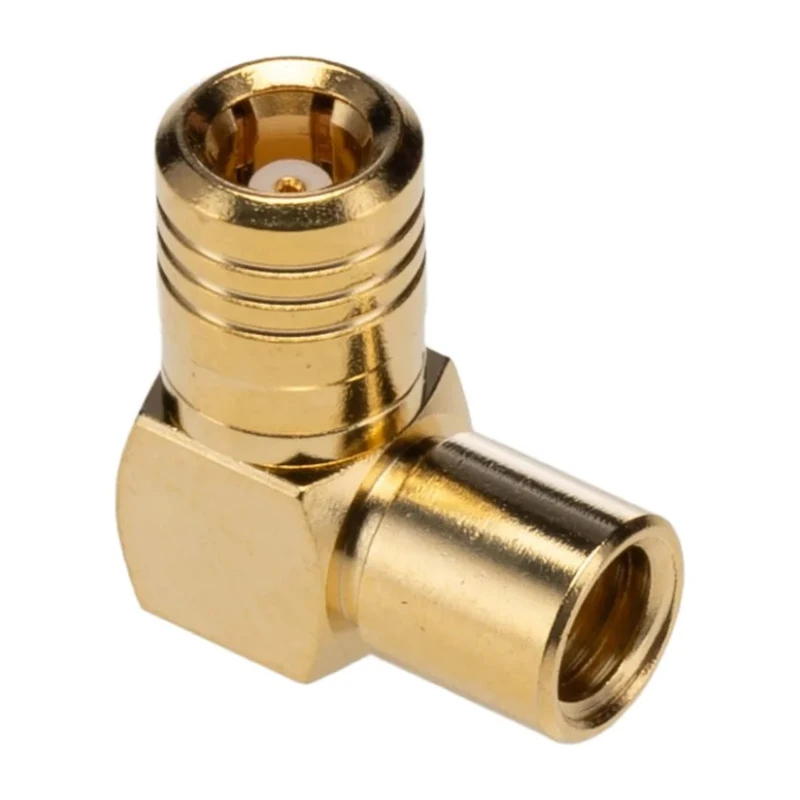

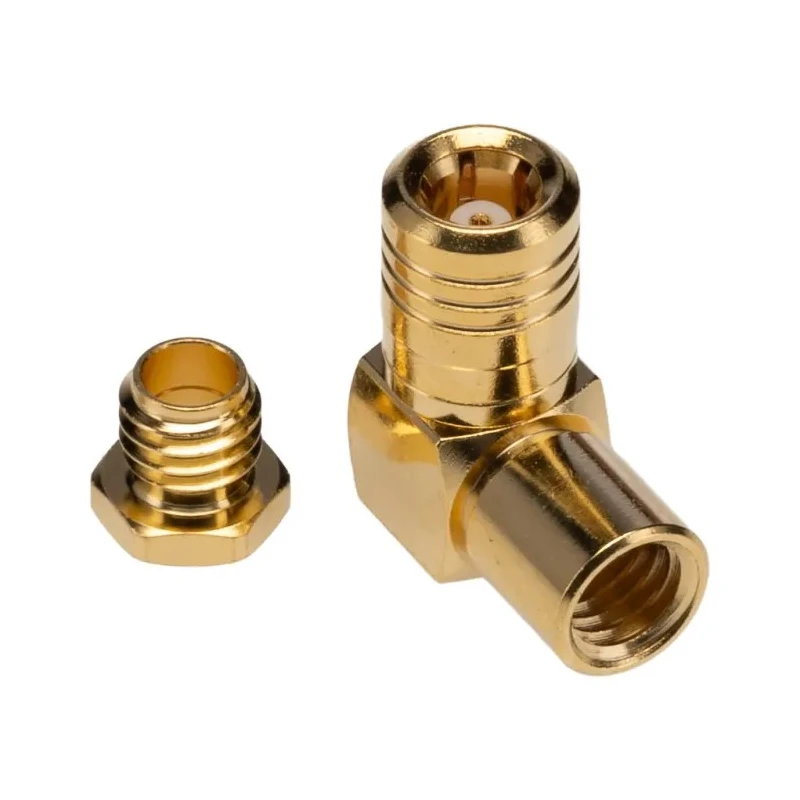

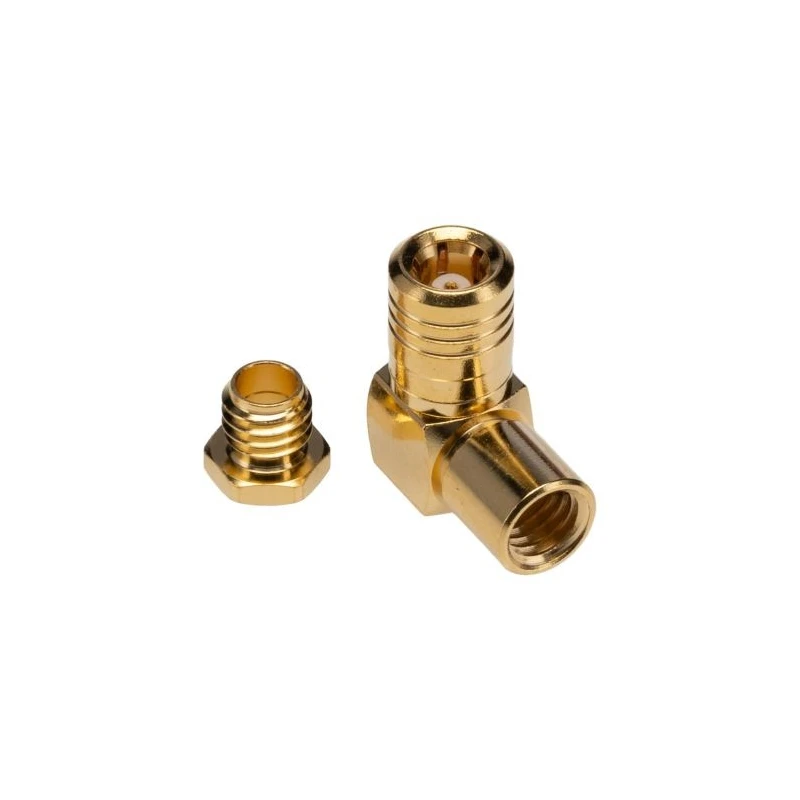

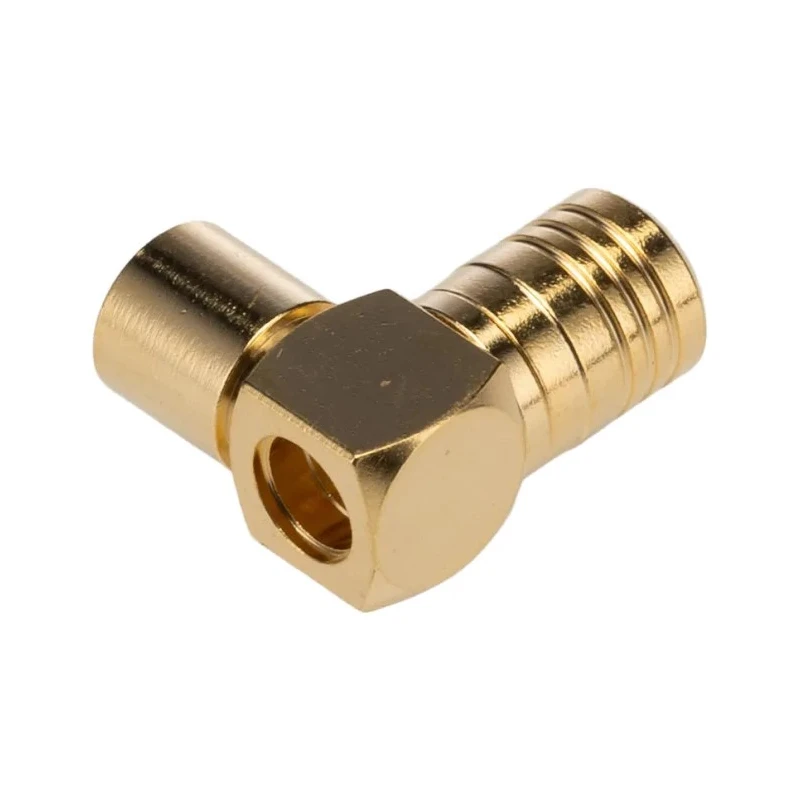

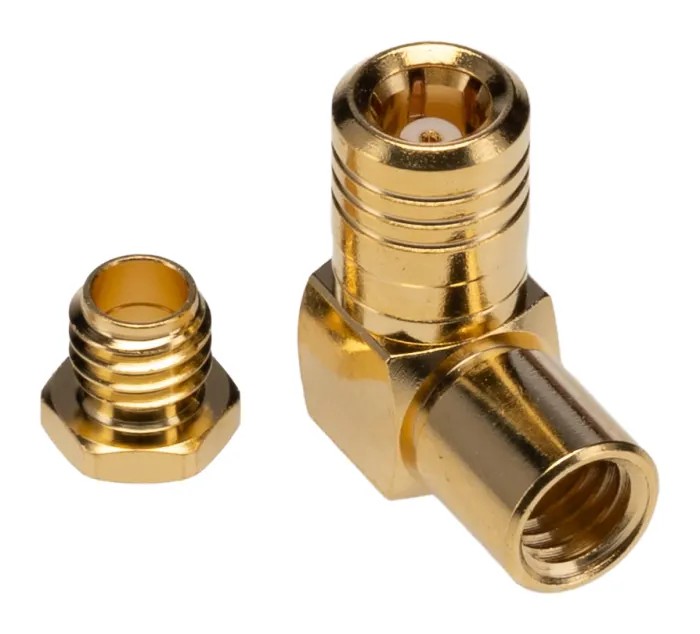

TE Connectivity SMB Series Coaxial Connector Cable Male SMB 50 Ω Right Angle Body Solder 1-1478008-0
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | SMB |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG174A/U, RG188A/U, RG316/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | SMB |
| Body Plating | Gold |
Key Features
- Constructed with gold plated brass body for corrosion resistance and durability.
- Supports cable types RG174A/U, RG188A/U, and RG316/U for versatile application.
- Operates effectively within a temperature range of -65°C to 165°C.
- Features solder termination ensuring secure cable connection.
- Suitable for RF coaxial applications up to 4 GHz frequency.
- Right angle orientation facilitates space saving in compact assemblies.
- Contact components use gold plated beryllium copper alloy for excellent conductivity.
- Complies with professional grade SMB series specifications ensuring quality performance.
Product Description
TE Connectivity 1-1478008-0 SMB Series Coaxial Connector Cable is a professional grade male SMB coaxial connector featuring a right angle body and solder termination. It provides an impedance of 50 Ω, optimized for high frequency applications up to 4 GHz. Constructed with a gold plated brass body and gold plated beryllium copper alloy contacts, this connector offers robust durability and excellent signal integrity.
This connector supports a range of coaxial cable types including RG174A/U, RG188A/U, and RG316/U, making it highly versatile for use in electronic, telecommunications, test equipment, and RF signal transmission systems. The right angle orientation allows efficient use of limited space in compact devices and assemblies.
Designed to operate reliably over a wide temperature range from -65°C to 165°C, it is suitable for industrial, laboratory, and communication equipment environments. The solder termination type offers secure mechanical and electrical connections for cable installations.
This SMB series connector does not feature bulkhead mounting and maintains a normal polarity design. It does not have specific standards or approval certifications indicated but adheres to TE Connectivity's professional-grade quality control.
Package contents typically include the single coaxial connector cable in ready-to-install form. Gold plated brass body construction ensures corrosion resistance and long service life. Beryllium copper alloy contact material delivers excellent conductivity and mechanical strength.
Solder termination enables reliable cable interfacing in signal transmission. Right angle design facilitates installation in confined spaces. Supports multiple coaxial cable types including RG174A/U, RG188A/U, and RG316/U.
Operating frequency up to 4 GHz suits various RF communication applications. Wide operating temperature range from -65°C to 165°C ensures durability in harsh conditions. This product is ideal for use in industrial, laboratory, telecommunications, and electronic signal processing applications requiring precise, reliable coaxial connections.
Explore additional Coaxial Connectors and accessories in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector operates effectively up to a maximum frequency of 4 GHz, making it suitable for various RF communication applications.
It supports coaxial cable types RG174A/U, RG188A/U, and RG316/U, providing versatility for different applications.
The operating temperature range for this model is from -65°C to 165°C, ensuring reliability in various environmental conditions.
The connector features a solder termination type, which ensures secure mechanical and electrical connections during installation.
The contacts are made from a gold plated beryllium copper alloy, which provides excellent conductivity and mechanical strength.
This model has an impedance of 50 Ω, which is standard for many RF applications.
It features a right angle orientation, which helps in saving space in compact assemblies.
The body is constructed from gold plated brass, which enhances corrosion resistance and durability.
This model does not have specific standards or approval certifications indicated, but adheres to TE Connectivity's professional-grade quality control.
This connector is a male SMB coaxial connector, designed for male cable connections.
The mounting type for this connector is cable, suitable for direct cable installations without bulkhead mounting.
The country of origin for this connector is India.
