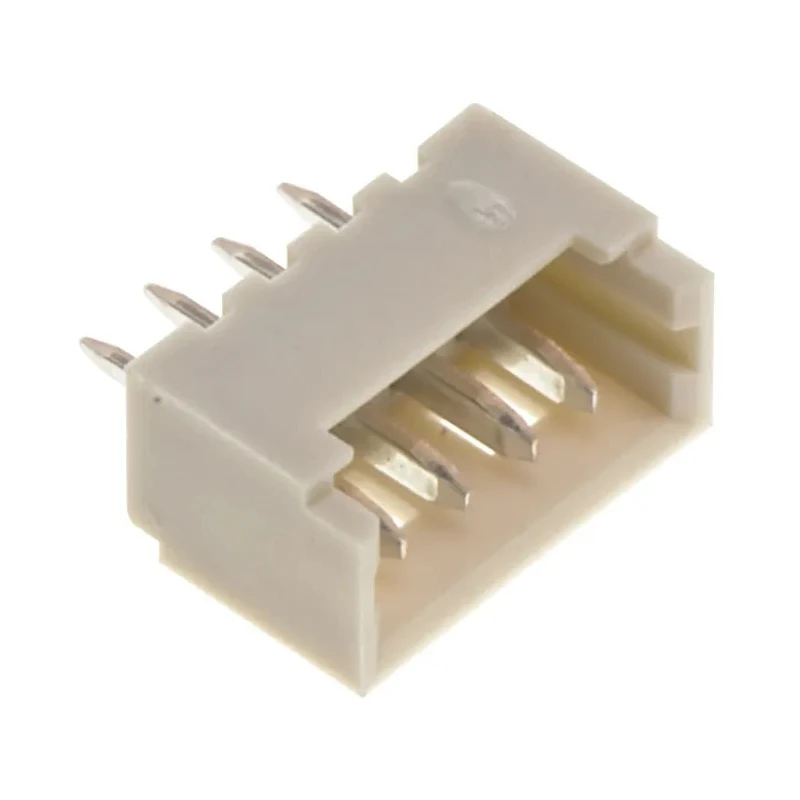

Molex PicoBlade Series Straight Through Hole PCB Header, 4 Contact, 1.25 mm Pitch, 1 Row, Shrouded 53047-0410
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | PicoBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |

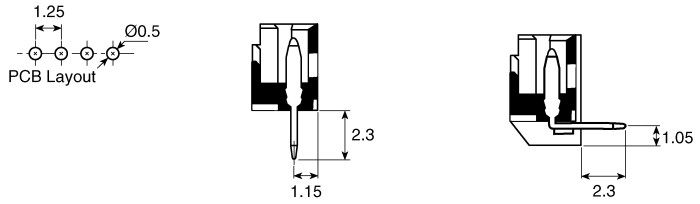

| Tail Pin Length | 2.3mm |
Key Features
- Designed for through-hole mounting for easy installation.
- Compact 1.25 mm pitch saves space on crowded printed circuit boards.
- Wide operating temperature range from -40°C to 85°C ensuring durability in harsh environments.
- Friction-locking mechanism with latching ramps secures the connector firmly.
- Tin-plated phosphor bronze contacts offer corrosion resistance and excellent conductivity.
- Shrouded housing protects contacts from dust and moisture.
- Rated for 1A current at 125V operating voltage.
- Single-row design simplifies wire organization on PCBs.
Product Description
Molex 53047-0410 is a PicoBlade Series straight through hole PCB header featuring 4 contacts arranged in a single row with a 1.25 mm pitch. It is shrouded for protection and designed for reliable wire-to-board connections in demanding industrial, automotive, and electronic applications.
The header incorporates a durable friction-locking mechanism with two latching ramps to prevent accidental disconnection due to vibration or mishandling. The phosphor bronze contacts are tin plated to ensure high conductivity and resistance to corrosion, which supports stable long-term performance.
Designed for through-hole mounting, this connector offers secure solder termination and ease of installation on printed circuit boards. The nylon housing design protects against harsh environments, with an operating temperature range from -40°C to +85°C.
Compact with a 1.25 mm pitch, the connector enables PCB space savings while delivering a current rating of 1 ampere at 125 volts. The single-row and 4-contact configuration provides a simple wire management solution, compatible with the Molex PicoBlade series ecosystem.
Through-hole mounting allows robust PCB installation. 1.25 mm pitch optimizes board space usage. Operating temperature from -40°C to +85°C supports industrial use. Friction-lock mechanism ensures secure mating under vibration.
Tin-plated phosphor bronze contacts provide reliable conductivity. Shrouded housing gives protection against contaminants. Rated for 1A current and 125V voltage operation. Suited for automotive, industrial process control, and consumer electronics.
Typical applications include industrial process control systems, stereo and DVD players, automotive and security alarm systems, and other electronic components requiring a reliable wire-to-board connection.
Explore more components in the PCB Headers category on EnvMart to find the right solutions for your electronic assembly requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PCB header is rated for a current of 1 ampere (1A).
It has an operating voltage rating of 125 volts (125V).
The pitch size of this connector is 1.25 mm.
The contacts are made of phosphor bronze and are tin plated for corrosion resistance and conductivity.
The operating temperature range is from -40°C to 85°C.
This PCB header features 4 contacts arranged in a single row.
It supports through-hole mounting for secure installation on printed circuit boards.
The housing is made of nylon, which provides protection against harsh environments.
The termination type for this model is solder, allowing for secure connections.
This connector is shrouded, which helps protect the contacts from dust and moisture.
It is suitable for applications in industrial process control, automotive systems, and consumer electronics requiring reliable wire-to-board connections.
The tail pin length of this connector is 2.3 mm.
