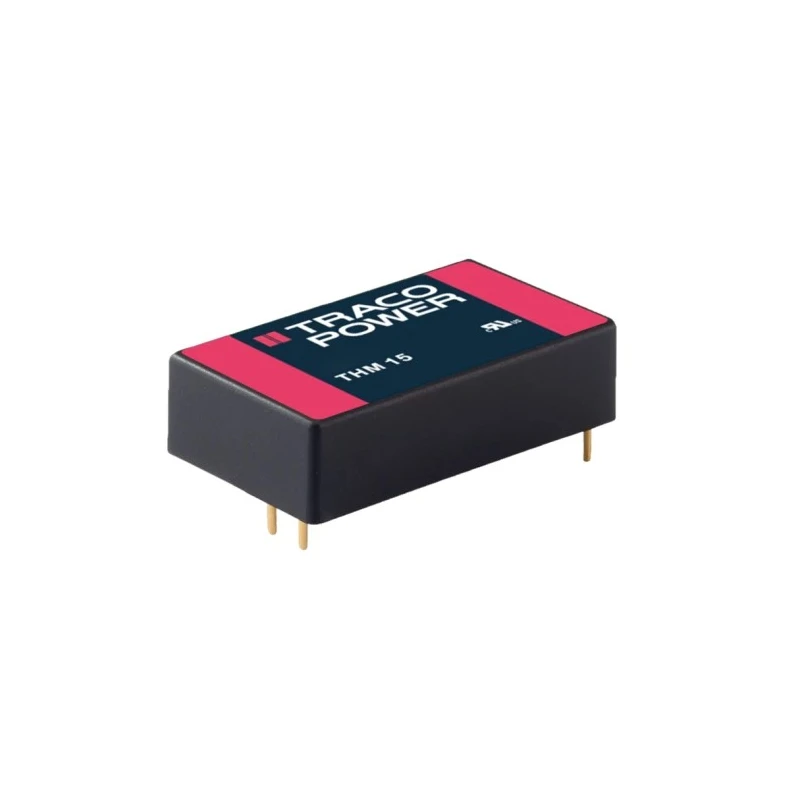

TRACOPOWER 15W 2-Output DC/DC Converter 5V/1.5A, -5V Output, 18-36V Input, Through Hole Mount THM 15-2421
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THM 15 DC/DC Converter, 5V dc/ 1 |
| Brand | TRACOPOWER |
| Efficiency | 86% |
| Length | 40.6mm |
| Model | THM 15-2421 |
| Depth | 10.2mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | THM 15 |
| Maximum Operating Temperature | 85°C |
| Package Type | Plastic Case |
| Minimum Operating Temperature | -40°C |
| MTBF | 2080000h |
| Number of outputs | 2 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 6 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 1.5A |
| Isolation Voltage | 5kV ac |
| Output Current 2 | 1500mA |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -5V dc |
| Wide 2 | 1 input voltage 15 W DC/DC converter in a 1.6 x 1 plastic case |
Key Features
- Compact plastic case measures 40.6mm x 25.4mm x 10.2mm.
- Offers reinforced 5kV AC isolation for safe applications.
- High efficiency of 86% minimizes energy loss.
- Wide operating temperature from -40°C to 85°C for harsh environments.
- Low leakage current under 2.5 μA ensures safety compliance.
- Designed for transportation, control, measurement, and IGBT driver applications.
- MTBF rated at 2,080,000 hours indicating high reliability.
- Manufactured in Taiwan with a robust plastic package.
Product Description
TRACOPOWER THM 15-2421 is a 15 watt dual-output DC/DC converter delivering 5V dc at 1.5A and -5V dc outputs. It supports a wide input voltage range from 18V to 36V DC and is designed for through-hole mounting in a compact 1.6 inch by 1.0 inch plastic case.
This converter provides reinforced isolation up to 5kV AC and maintains a low leakage current below 2.5 microamps, making it suitable for medical, transportation, control, measurement, and industrial applications requiring high safety and reliability.
Operating temperature ranges from -40 degrees Celsius to 85 degrees Celsius allow use in harsh environments and altitudes up to 5000 meters. With an efficiency of 86% and a mean time between failures (MTBF) of over 2 million hours, it is engineered for durable performance.
Compact plastic package measuring 40.6 by 25.4 by 10.2 mm. Dual outputs: +5V at 1.5A and -5V for bi-polar power requirements. Wide 2:1 input voltage ratio enables flexible power source integration. High isolation voltage of 5kV AC ensures safe operation in sensitive equipment.
Extended operating temperature range from -40°C to +85°C supports demanding conditions. Low leakage current of less than 2.5 μA for compliance with strict safety standards. Reliable with MTBF of 2,080,000 hours reduces downtime.
Ideal for applications including IGBT drivers, transportation systems, and control & measurement devices.
The THM 15-2421 represents a high-quality, efficient DC/DC converter solution for industrial and medical electronics requiring robust isolation and dependable dual voltage outputs.
Explore more DC/DC converters to find components tailored to your power conversion needs at EnvMart.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual outputs: +5V at 1.5A and -5V for bipolar power requirements.
It supports a wide input voltage range from 18V to 36V DC.
The efficiency of this converter is rated at 86%, minimizing energy loss during operation.
The compact plastic case measures 40.6mm in length, 25.4mm in width, and 10.2mm in depth.
The maximum operating temperature for the THM 15-2421 is 85°C.
This unit is designed for through-hole mounting.
It provides reinforced isolation up to 5kV AC, making it suitable for sensitive applications.
The minimum operating temperature is -40°C, allowing it to function in harsh environments.
The MTBF is rated at 2,080,000 hours, indicating high reliability.
It is designed for use in transportation, control, measurement, and IGBT driver applications.
The leakage current is low, under 2.5 μA, ensuring compliance with safety standards.
This model features two outputs, providing flexibility for various power needs.
