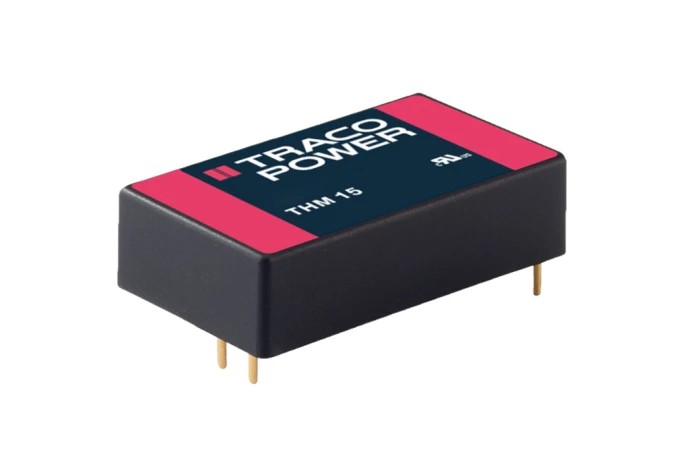

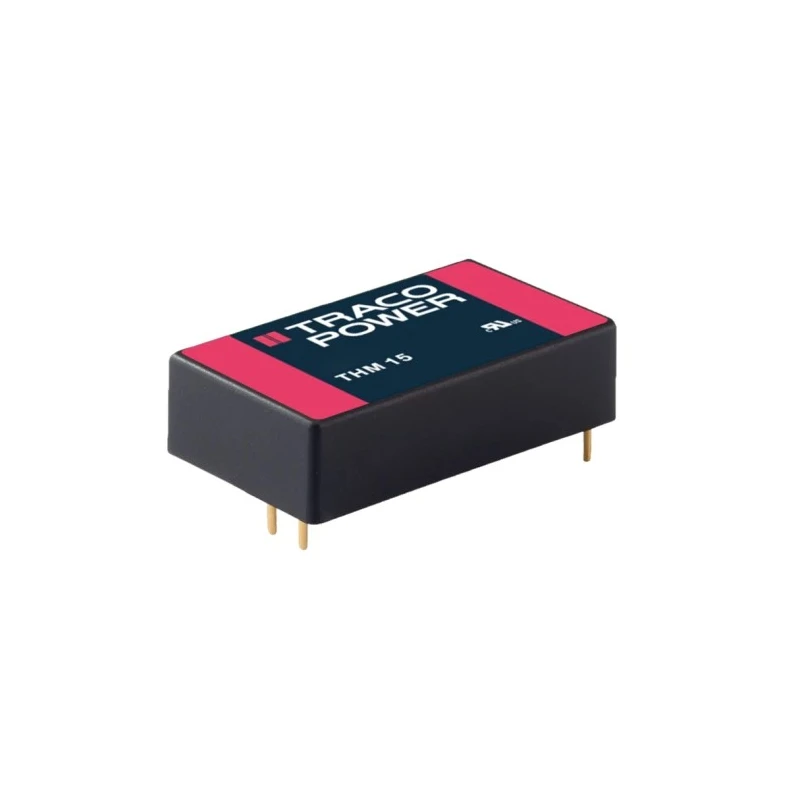

TRACOPOWER 15 W DC/DC Converter, 5 V dc Output, 3 A Output Current, 9-18 V dc Input Voltage, Through Hole Mount THM 15-1211
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THM 15 DC/DC Converter, 5V dc/ 3 A, 18V |
| Brand | TRACOPOWER |
| Efficiency | 87% |
| Length | 40.6mm |
| Model | THM 15-1211 |
| Depth | 10.2mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | THM 15 |
| Maximum Operating Temperature | 85°C |
| Package Type | Plastic Case |
| Minimum Operating Temperature | -40°C |
| MTBF | 2080000h |
| Number of outputs | 1 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 3A |
| Isolation Voltage | 5kV ac |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Wide 2 | 1 input voltage 15 W DC/DC converter in a 1.6 x 1 plastic case |
Key Features
- The converter supports wide input voltage range from 9 V to 18 V dc.
- Maximum output power is rated at 15 W ensuring efficient power conversion.
- It has a high isolation voltage of 5 kV ac enhancing safety in electrical systems.
- The operating temperature range is wide, from -40°C up to 85°C for diverse environments.
- Low leakage current of less than 2.5 μA minimizes power loss and interference.
- Compact package dimensions of 40.6 mm length, 25.4 mm width, and 10.2 mm depth.
- Mount type is through hole suitable for robust PCB integration.
- Efficiency rated at 87% delivers reliable performance with low heat dissipation.
Product Description
TRACOPOWER THM 15-1211 is a medical-grade 15 Watt DC/DC converter designed for reliable power conversion in demanding industrial and electronic applications. This converter features a reinforced isolation system providing 5000 VACrms isolation voltage and a very low leakage current of less than 2.5 μA. With a wide input voltage range of 9 to 18 V dc and an output voltage of 5 V dc at 3 A, it ensures stable and efficient performance.
Encased in a compact 1.6" x 1.0" plastic package, the converter supports through-hole mounting, facilitating easy integration into printed circuit boards. The device operates effectively within an ambient temperature range of -40°C to 85°C and is capable of functioning reliably at altitudes up to 5000 meters. It boasts an efficiency of about 87%, minimizing energy loss and thermal stress.
This model is well suited for applications such as transportation systems, control and measurement equipment, and IGBT driver circuits, where safety and reliability are paramount. The high isolation voltage and extended mean time between failures (MTBF) of over 2 million hours underline its robustness. The product is manufactured in Taiwan, Province Of China, and does not have specific certifications indicated.
Wide 2:1 input voltage range for flexible power sources. Reinforced isolation with 5000 VACrms for electrical safety. Low leakage current below 2.5 μA reducing interference risks. Compact plastic case with through hole mounting option.
Extended operating temperature range from -40°C to 85°C. High efficiency of 87% for reduced heat generation. Long MTBF of 2,080,000 hours ensuring product reliability. Output current of 3 A at regulated 5 V dc output. Operating altitude capability up to 5000 m.
Ideal for medical, industrial, transportation, and control applications.
Choose TRACOPOWER THM 15-1211 DC/DC converters for stable, efficient, and safe power supply needs in electronic and industrial environments. Explore the Electronics & Electricals category on EnvMart for comprehensive DC/DC converter options.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 9 V to 18 V dc.
The maximum output power of this converter is rated at 15 W.
It provides a regulated output voltage of 5 V dc with an output current of 3 A.
The efficiency of this unit is rated at 87%.
The dimensions are 40.6 mm in length, 25.4 mm in width, and 10.2 mm in depth.
This converter features a high isolation voltage of 5 kV ac.
The operating temperature range is from -40°C to 85°C.
It supports through-hole mounting, suitable for robust PCB integration.
The MTBF for this model is over 2 million hours, specifically rated at 2,080,000 hours.
This unit is capable of operating at altitudes up to 5000 meters.
It is suitable for applications in transportation systems, control and measurement equipment, and IGBT driver circuits.
The leakage current is less than 2.5 μA, minimizing power loss and interference.
