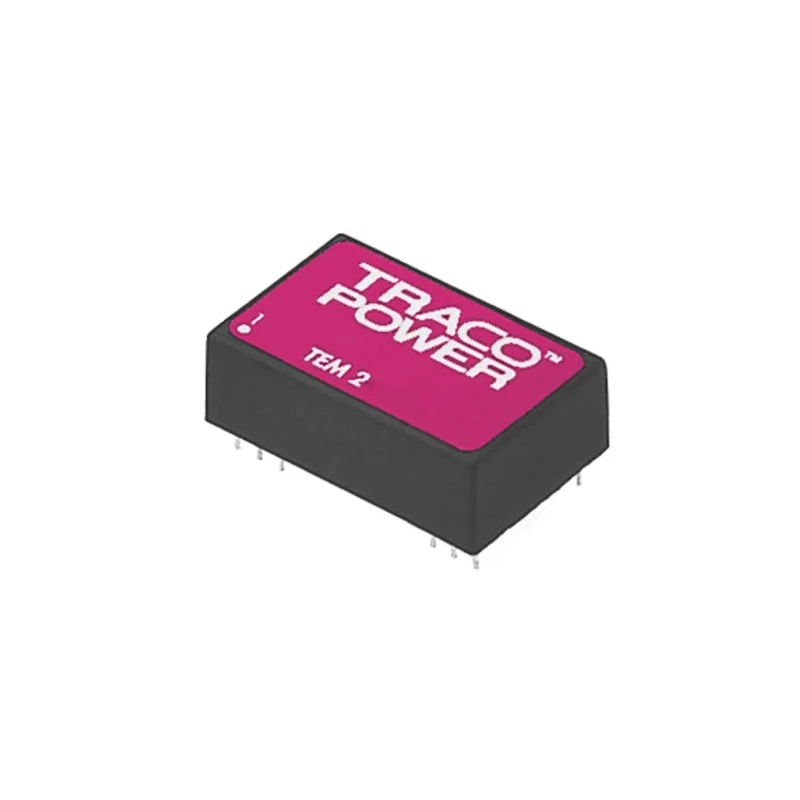

TRACOPOWER DC/DC Converter TEM 2-0512, 12V DC Output, 165mA, 2W, 5.5V Max Input, Through Hole DIP-24 Package, 70°C Max Temp
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEM 2 DC/DC Converter, 12V dc/ 165 mA |
| Brand | TRACOPOWER |
| Efficiency | 54% |
| Length | 32mm |
| Model | TEM 2-0512 |
| Depth | 10mm |
| Gross Weight | 12g |
| Width | 20mm |
| Mount Type | Through Hole |
| Series | TEM 2 |
| Maximum Operating Temperature | 70°C |
| Package Type | DIP |
| Minimum Operating Temperature | -25°C |
| MTBF | 800000000h |
| Number of outputs | 1 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 5.5V dc |
| Standards/Approvals | CSA, IEC/EN 60950-1, REACH, RoHS, UL/cUL 60950-1 |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 24 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 165mA |
| Isolation Voltage | 1kV dc |
Key Features
- Operates with input voltage ranging from 4.5V to 5.5V DC.
- Offers a maximum operating temperature of 70°C and a minimum of -25°C.
- Features 1kV DC isolation voltage ensuring reliable signal separation.
- Provides low output ripple and noise with 50mV peak-to-peak value.
- Tightly regulated output with 54% efficiency for stable performance.
- Includes short circuit protection enhancing device safety.
- Compact dimensions of 32mm length, 20mm width, and 10mm depth.
- Designed for industrial and consumer electronics applications requiring isolated DC power supplies.
Product Description
TRACOPOWER TEM 2-0512 DC/DC Converter is a regulated, isolated power supply module delivering 12V DC output at 165mA current with a 2W power rating, housed in a compact DIP-24 through hole package.
The converter operates with a wide input range from 4.5V to 5.5V DC and supports industrial temperature ranges from -25°C to 70°C. Its 1kV DC isolation enhances reliability in demanding electronic environments.
Designed for minimal electromagnetic interference, the internal filtering reduces input ripple while providing low output noise with only 50mV peak-to-peak ripple, suitable for sensitive electronic circuits.
The TEM 2 series is widely used in industrial automation, telecommunications, instrumentation, and consumer electronics to provide stable and isolated power conversion. The device’s robust MTBF of 800 million hours demonstrates its high reliability and longevity.
This model complies with CSA, IEC/EN 60950-1, REACH, RoHS, and UL/cUL safety standards, ensuring conformity for various industrial and commercial applications. Operates with tight line and load regulation. Compact and industry standard pinout for easy PCB design.
Integrated short circuit protection for safety. Low thermal dissipation with 54% efficiency. Suitable for both industrial and consumer electronic power conversion needs.
For reliable, low power isolated DC/DC conversion, TRACOPOWER TEM 2-0512 is a proven component choice across multiple industrial sectors. Explore more DC-DC Converters on EnvMart to match your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a 12V DC output with a maximum current of 165mA.
It operates with an input voltage ranging from 4.5V to 5.5V DC.
The maximum operating temperature for this unit is 70°C.
This model has an efficiency rating of 54%.
The dimensions of this unit are 32mm in length, 20mm in width, and 10mm in depth.
It is housed in a DIP-24 through hole package.
The isolation voltage for this model is 1kV DC, ensuring reliable signal separation.
It complies with CSA, IEC/EN 60950-1, REACH, RoHS, and UL/cUL safety standards.
The output ripple and noise is specified at 50mV peak-to-peak.
Yes, it includes short circuit protection to enhance device safety.
This model is designed for industrial automation, telecommunications, instrumentation, and consumer electronics applications.
The MTBF for the TRACOPOWER TEM 2-0512 is 800 million hours, indicating high reliability.
