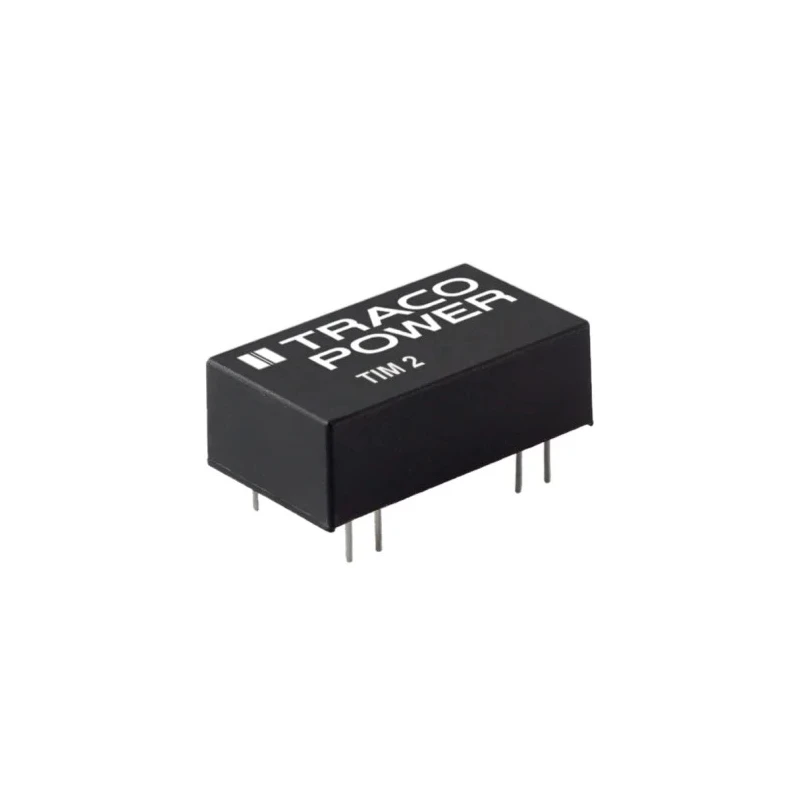

TRACOPOWER Medical/Reinforced I/O-Isolation DC/DC Converter 24V DC 83mA 36V DC Input 18V Input 2W Through Hole TIM 2-2415

TRACOPOWER TIM 2-2415 is a medical-grade reinforced I/O isolation DC/DC converter designed for professional electronic applications requiring high safety and reliability standards. It delivers 24V DC output voltage at 83mA current with a maximum output power of 2 Watts, suitable for low-power medical or industrial devices.

The converter supports a wide input voltage range from 18V to 36V DC, enabling flexibility in diverse power environments. It incorporates a through hole DIP-16 package with a compact form factor measuring 24.3mm in length, 14.4mm in width, and 10.2mm in depth, making it suitable for space-constrained PCB designs.

This DC/DC converter features exceptional isolation voltage rated at 5000 VAC RMS, meeting IEC/ES 60601-1 3rd edition certification standards, with a working voltage up to 250 VAC RMS. The design is compliant with ISO 13485 quality management standards and IPC-A-610 level 3, ensuring it fits rigorous medical device requirements.

With an efficiency of 82%, the TIM 2-2415 converter limits energy losses and heat generation, supporting operation in temperature ranges from -40°C to +95°C. This makes it ideal for challenging industrial, medical, laboratory, and manufacturing environments where reliability and safety are critical.

2 Watt DC/DC converter in DIP-16 package with through hole mount. IEC/ES 60601-1 3rd edition certification for reinforced isolation up to 5000 VAC RMS. High mean time between failures (MTBF) of 6,809,000 hours for reliable operation.

Wide operating temperature from -40°C to 95°C supports various industrial applications. Compact size and low leakage current optimize PCB space and safety. Compliance with ISO 13485 and IPC-A-610 level 3 quality standards for medical usage.

Extended input voltage range for versatility in power management systems. Low noise input filter meeting EN55022 Class A interference standards. Manufactured in Taiwan with a 35-year warranty ensuring product longevity. Single output channel with 7 pins in DIP package for straightforward integration.

This TRACOPOWER TIM 2-2415 DC/DC converter is suitable for critical industrial, medical devices, laboratory instruments, manufacturing systems, and embedded power applications where electrical isolation and regulated power supply are essential. It provides a dependable and safe power conversion solution in environments needing robust and certified converters.
