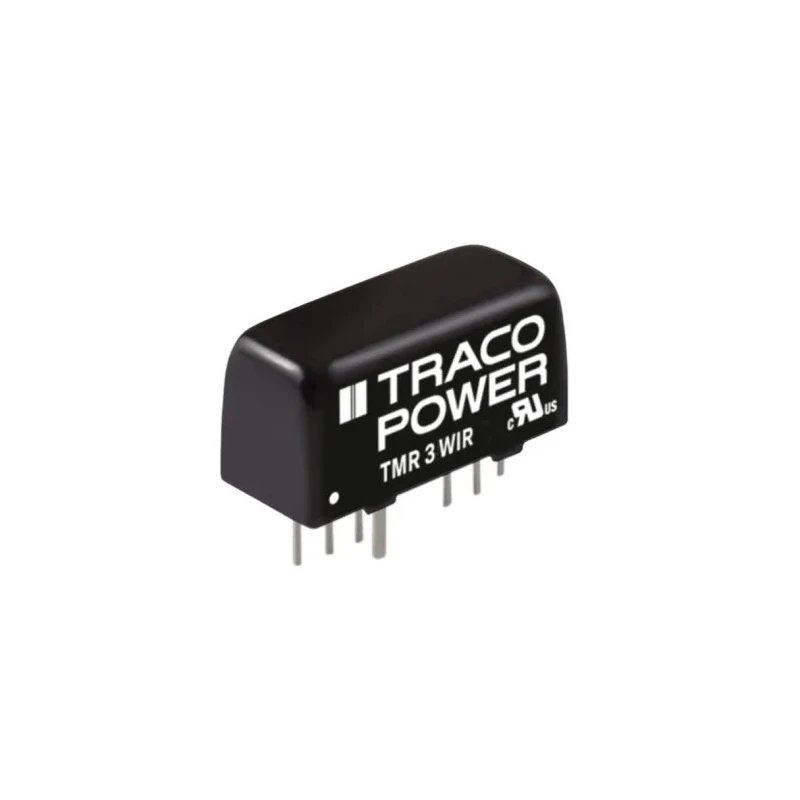

TRACOPOWER DC/DC Converter 3.3V Output 700mA 3W Through Hole SIP Package TMR 3-2410WIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 76% |
| Length | 21.8mm |
| Model | TMR 3-2410WIR |
| Depth | 11.2mm |
| Width | 9.6mm |
| Mount Type | Through Hole |
| Series | TMR 3WIR |
| Maximum Operating Temperature | 90°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 5535000h |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 700mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
Key Features
- Operates with an input voltage range of 9V to 36V DC.
- Features an isolation voltage of 1.5kV DC for enhanced safety.
- Maintains a low load regulation of 1% for reliable performance.
- Compact SIP 6-pin package suitable for space-constrained installations.
- Operating temperature range from -40°C to 90°C for harsh environments.
- Provides high mean time between failures (MTBF) of approximately 5.5 million hours.
- Efficiency rating of 76%, balancing power and thermal management.
- Ideal for railway signaling, industrial automation, and communication equipment applications.
Product Description
TRACOPOWER TMR 3-2410WIR DC/DC Converter offers a reliable solution for providing a regulated 3.3V DC output with a maximum current of 700mA and power of 3W. Its through hole SIP package with 6 pins makes it appropriate for compact printed circuit board layouts.
This converter supports a wide input voltage range between 9V and 36V DC, allowing flexibility for various industrial and automation systems. With an isolation voltage rating of 1.5kV DC, it ensures electrical separation between input and output, improving safety especially in sensitive electronic environments.
Designed with efficiency of 76%, it balances power consumption and heat dissipation effectively. The device is rated for operation between -40°C and 90°C, making it suitable for harsh and demanding temperature environments frequently encountered in industrial, railway signaling, and communication applications.
The TMR 3-2410WIR provides low load regulation at 1%, delivering stable output voltage across varying load conditions. Its reliability is evidenced by a high MTBF of over 5.5 million hours, ensuring long service life in critical installations.
Applications include railway signaling and control systems, industrial automation and control panels, communication equipment, and powering of sensors in monitoring systems. The isolated design enhances protection of downstream electronics from voltage spikes and interference.
Operates with an input voltage range of 9V to 36V DC. Features an isolation voltage of 1.5kV DC for enhanced safety. Maintains a low load regulation of 1% for reliable performance. Compact SIP 6-pin package suitable for space-constrained installations.
Operating temperature range from -40°C to 90°C for harsh environments. Provides high mean time between failures (MTBF) of approximately 5.5 million hours. Efficiency rating of 76%, balancing power and thermal management.
Ideal for railway signaling, industrial automation, and communication equipment applications. Designed to ensure electrical isolation and protect sensitive electronic systems. Explore related DC-DC Converters and power supply solutions at EnvMart for comprehensive industrial electronics components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with an input voltage range of 9V to 36V DC.
The maximum output current is 700mA.
This model has an efficiency rating of 76%.
It features an isolation voltage of 1.5kV DC.
The dimensions are 21.8mm in length, 11.2mm in depth, and 9.6mm in width.
It can operate in temperatures ranging from -40°C to 90°C.
This model uses a through hole mounting type.
It has one output.
The maximum output power is 3W.
It is suitable for railway signaling, industrial automation, and communication equipment applications.
The MTBF is approximately 5.5 million hours.
It maintains a low load regulation of 1%.
