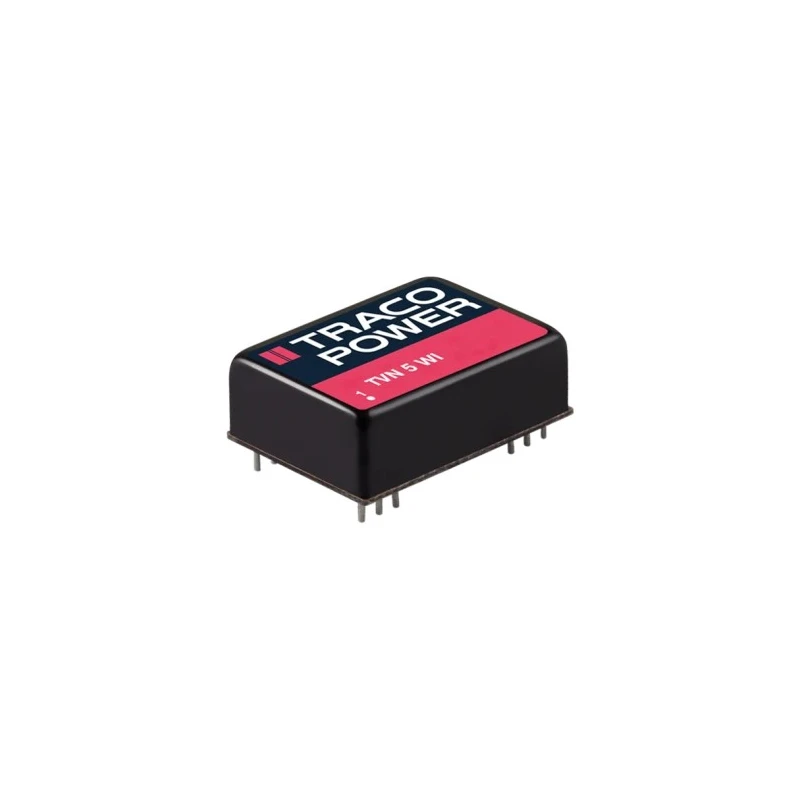

TRACOPOWER TVN 5WI DC/DC Converter 3.3V DC 1.515A 12V DC Input 4.5V Input 5W Through Hole DIP Package TVN 5-0910WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 79% |
| Length | 32mm |
| Model | TVN 5-0910WI |
| Depth | 10.2mm |
| Width | 20mm |
| Mount Type | Through Hole |
| Series | TVN 5WI |
| Maximum Operating Temperature | 90°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 4400000h |
| Number of outputs | 1 |
| Maximum Output Power | 5W |
| Maximum Input Voltage | 12V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 12 |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 1.515A |
| Isolation Voltage | 1.6kV dc |
Key Features
- The converter features a through-hole DIP package for easy PCB mounting.
- Operates efficiently up to 79% with low ripple and noise characteristics.
- Includes remote On/Off, over voltage protection, under voltage lockout, and short circuit protection functions.
- Supports extended operating temperature from -40°C to 90°C for harsh environments.
- Provides 1.6kV DC isolation voltage ensuring high safety standards.
- Compact dimensions of 32mm length, 20mm width, and 10.2mm depth suit space-constrained applications.
- Designed for industrial, electronic components, power supply systems, and instrumentation use.
- High reliability with MTBF of 4,400,000 hours enhances long-term performance.
Product Description
TRACOPOWER TVN 5-0910WI is a high-performance DC/DC converter delivering a 3.3V DC output current of 1.515A with a maximum power of 5 Watts. It operates with a wide input voltage range of 4.5V to 12V DC, making it suitable for various industrial and electronic applications.
This converter is housed in a compact DIP through-hole package, measuring 32mm in length, 20mm in width, and 10.2mm in depth, ensuring easy integration into printed circuit boards. Designed with an emphasis on low ripple and noise, the device guarantees signal integrity for sensitive equipment.
Standard protections such as remote On/Off control, over voltage protection, under voltage lockout, and short circuit protection augment operational safety and robustness. Its high isolation rating of 1.6kV DC and an MTBF of 4,400,000 hours confirm reliability and endurance in demanding environments.
The converter operates efficiently at 79% efficiency and supports an extended temperature range from -40°C to 90°C, suitable for harsh industrial and medical uses. Its output voltage can be adjusted from -10% to +20%, providing flexibility for diverse power regulation needs.
The converter features a through-hole DIP package for stable PCB mounting. Low ripple and noise output ideal for precision electronics and instrumentation. Wide input voltage range from 4.5V to 12V DC enhances application versatility.
Incorporates multiple protective functions for safety and reliability. Extended operating temperature range supports industrial and medical device requirements. High isolation voltage of 1.6kV DC for electrical safety standards.
Compact dimensions enable integration into space-constrained systems. Manufactured in Taiwan ensuring quality and compliance standards. MTBF of 4.4 million hours underlines operational longevity. Adjustable output voltage for customized power delivery.
This TRACOPOWER DC/DC Converter is ideal for use in industrial automation, laboratory equipment, communication systems, medical devices, and embedded electronics requiring stable DC power with minimal noise. It complies with IEC/EN/ES 60601-1 3rd edition standards and EMC requirements, making it suitable for critical applications.
EnvMart customers can browse our extensive category of DC-DC Converters for various power system designs and electronic projects, ensuring efficient and reliable power conversion solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 5 Watts.
It operates with an efficiency rating of 79%.
This converter supports a wide input voltage range from 4.5V to 12V DC.
The dimensions are 32mm in length, 20mm in width, and 10.2mm in depth.
It is housed in a DIP (Dual In-line Package) through-hole package for easy PCB mounting.
The operating temperature range is from -40°C to 90°C.
It includes remote On/Off control, over voltage protection, under voltage lockout, and short circuit protection.
The isolation voltage is rated at 1.6kV DC, ensuring high safety standards.
This model has one output.
The output voltage is 3.3V DC.
The MTBF is rated at 4,400,000 hours, indicating high reliability.
It is designed for use in industrial automation, laboratory equipment, communication systems, medical devices, and embedded electronics.
