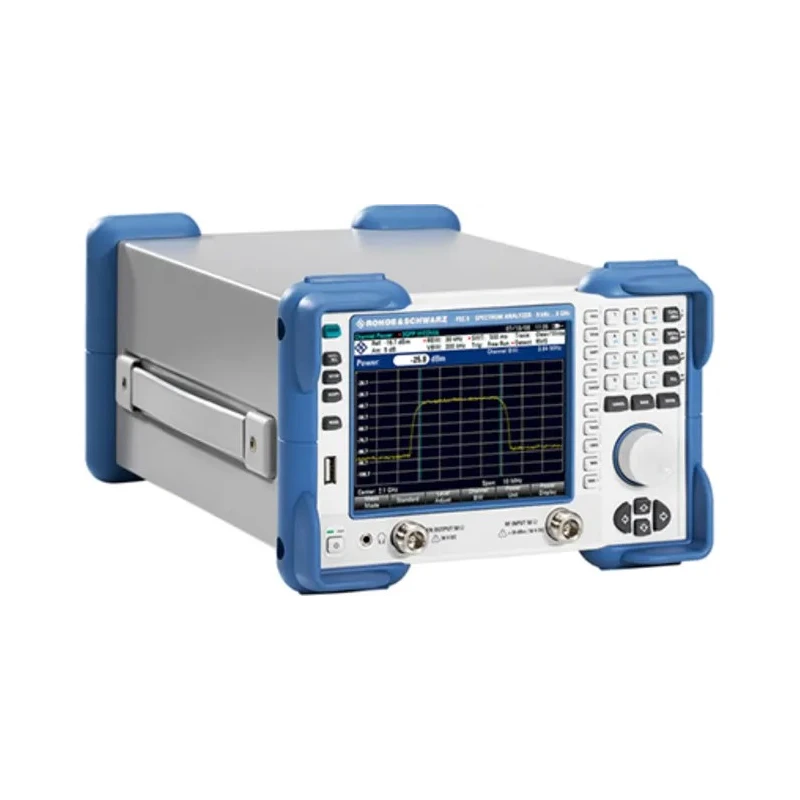

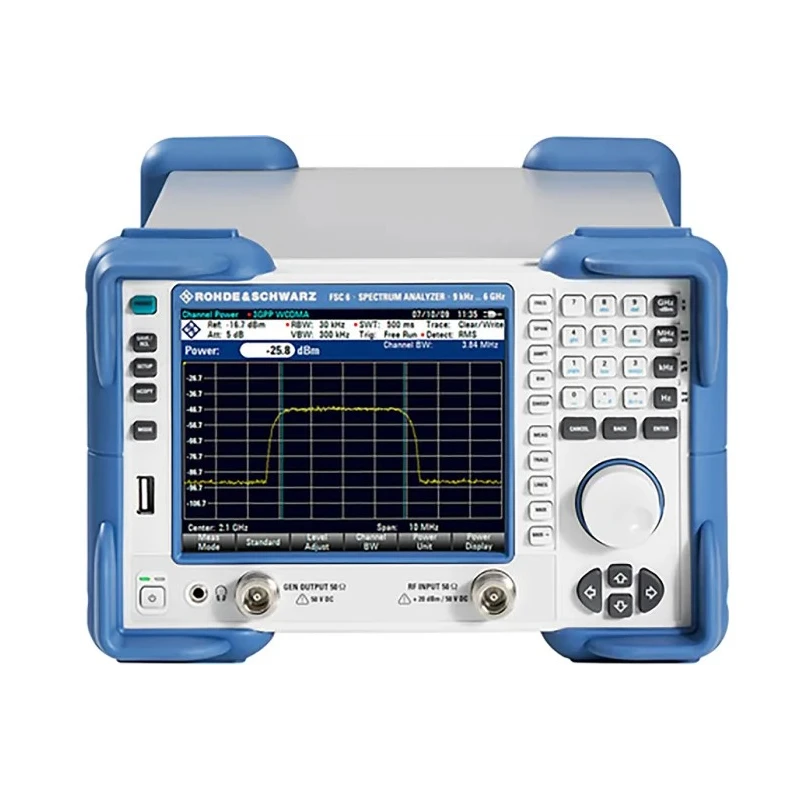

Rohde & Schwarz FSC Desktop FSC Spectrum Analyser, 9 kHz to 6 GHz, 1 Channel, LCD Display, LAN & USB Interface FSC-P4

Rohde & Schwarz FSC-P4 Desktop FSC Spectrum Analyser is a high-precision instrument designed for frequency analysis ranging from 9 kHz to 6 GHz. This compact and cost-efficient spectrum analyser features one channel and offers multiple wave trace modes including average, minimum hold, and maximum hold for detailed signal examination. The instrument is powered by low energy consumption of 12 W, making it suitable for extended use in industrial and laboratory settings.

Equipped with an LCD display, the FSC-P4 provides clear visualization of frequency spectra and measurements. It offers resolution bandwidth options between 10 Hz and 3 MHz, ensuring detailed analysis capabilities. An optional preamplifier is available to increase sensitivity down to -161 dBm (1 Hz), ideal for measuring weak signals with high accuracy.

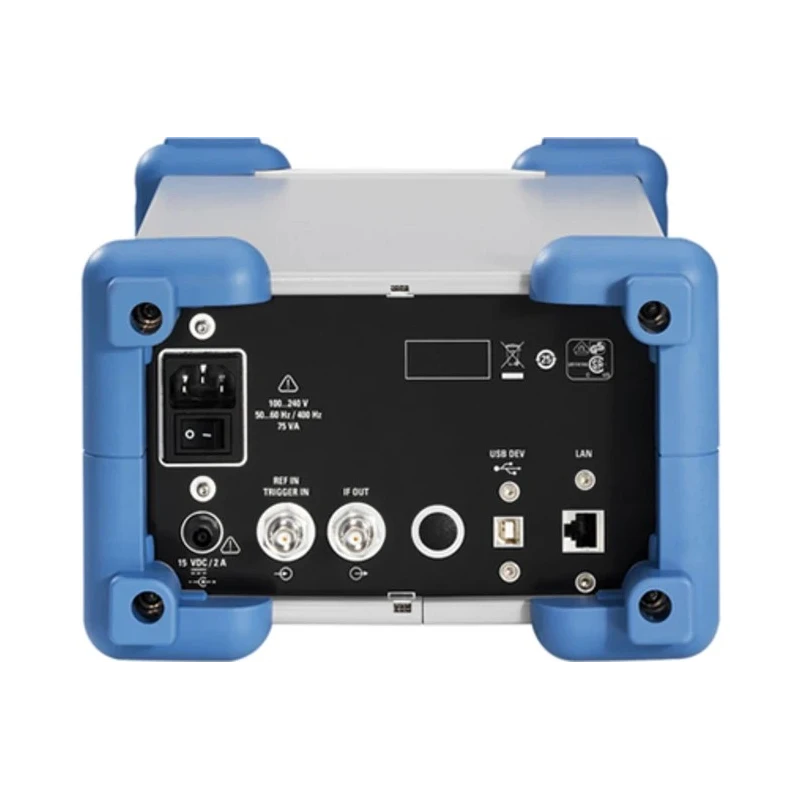

The device supports LAN and USB interfaces for remote control and easy data transfers, with storage supported via USB stick. Its compact desktop form factor - with overall dimensions of 233 mm length, 350 mm width, and 158.1 mm height - weighs approximately 4.5 kg, providing portability within laboratory or industrial environments.

This spectrum analyser meets multiple international standards, including IEC 61010-1, VDE, UL 61010-1, and MILPRF28800F Class 2, assuring robust quality and safety. Its high third-order intercept point of typically 15 dBm ensures strong linearity and dynamic range in RF measurements, with low measurement uncertainty of less than 1 dB.

Common applications include telecommunications testing, electronics research and development, electronic design, service and maintenance, and education. It is especially suited for electronics laboratories and training RF professionals, supporting efficient development and production processes.

Bandwidth ranges from 10 Hz to 3 MHz for detailed signal analysis. High sensitivity with noise levels below -141 dBm (1 Hz). Optional preamplifier enhances sensitivity to less than -161 dBm (1 Hz). Low measurement uncertainty under 1 dB for precise results.

Compact desktop design with dimensions 233 mm x 350 mm x 158.1 mm. Includes LAN and USB interfaces for remote control and data transfer. Supports multiple wave traces: Average, Minimum Hold, Maximum Hold. Power consumption is low at 12 watts, suitable for lab environments.

Equipped with an LCD display for easy viewing of measurement data. Ideal for applications in telecommunications, electronics labs, and educational institutes. Explore more Spectrum Analysers and Rohde & Schwarz products on EnvMart for reliable and advanced measuring and testing instruments.
