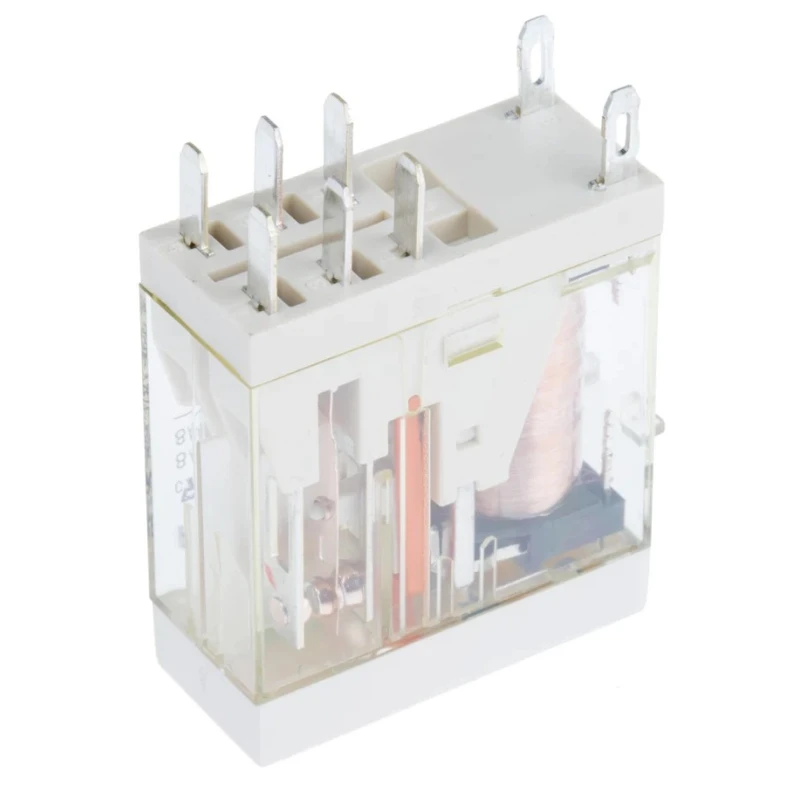

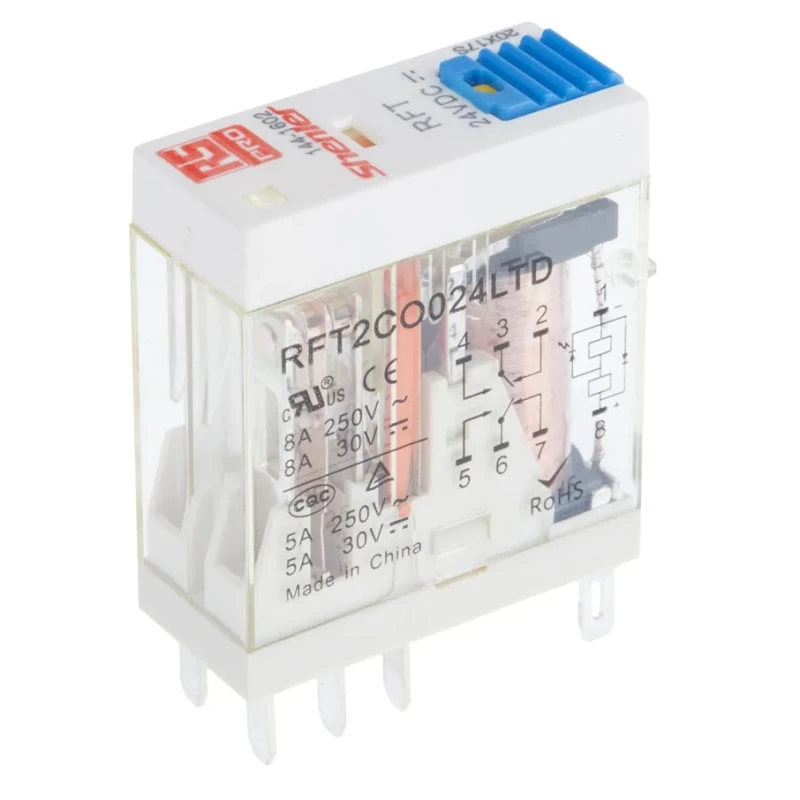

RS PRO Power Relay, 24V Coil Voltage, 8A Switching Current, DPDT Contact Configuration 144-1602
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 28mm |
| Length | 29mm |
| Model | 144-1602 |
| Width | 12.6mm |
| Contact Material | Silver Alloy |
| Series | RFT |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 30V ac |
| Coil Power | 530mW |
Key Features
- Double Pole Double Throw (DPDT) contact configuration ensures versatile switching options.
- Coil voltage rated at 24 V DC with coil power consumption of 530 mW.
- Compact dimensions of 29mm length, 28mm height, and 12.6mm width suit PCB mounting.
- Silver alloy contact material provides low contact resistance and high conductivity.
- Wide operating temperature range from -40°C to +55°C supports harsh environments.
- Switching power rated up to 3kVA with maximum switching voltages of 30V DC and 30V AC.
- Features PCB pin terminal type and plug-in mounting for easy integration.
- Coil resistance of 1.1 kΩ contributes to efficient coil operation.
Product Description
RS PRO 144-1602 power relay is designed for high reliability and precision in industrial and automation environments. It features a 24V DC coil voltage and supports an 8A switching current, making it suitable for controlling electrical loads effectively. This DPDT (Double Pole Double Throw) relay provides versatile contact configurations for various switching requirements.
The relay measures 29mm in length, 28mm in height, and 12.6mm in width, with a compact footprint ideal for PCB mounting. It employs silver alloy contacts which minimize contact resistance to 50 milliohms, ensuring efficient conductivity and longer service life. Coil resistance is specified at 1.1 kΩ with coil power consumption of just 530mW, optimizing power efficiency.
Capable of switching up to 3kVA, the relay handles 30V DC and 30V AC voltages, accommodating a broad application spectrum. It has a broad operational temperature range from -40°C to +55°C, allowing reliable function even in harsh industrial conditions. The product supports plug-in mounting and features PCB pin terminals for straightforward installation.
With a rated life of 10 million cycles, the RS PRO 144-1602 ensures long-term durability and dependable performance. It meets international RoHS environmental standards, assuring compliance with safety and ecological requirements. This relay is manufactured in China and fits various applications such as measuring, regulating, and amplifying voltages in industrial and automation settings.
Double Pole Double Throw (DPDT) contact configuration for flexible switching. 24 V DC coil voltage with low coil power usage of 530 mW. Compact dimensions support installation in confined spaces. Silver alloy contacts reduce resistance and improve conductivity.
Operating temperature range of -40°C to +55°C for robust performance. High switching power capacity up to 3 kVA with 30V DC/AC voltage rating. Plug-in mounting and PCB pin terminal type for easy integration. High cycle life of 10 million operations for reliability.
RoHS compliant and environmentally safe.
This RS PRO power relay is an ideal choice for industrial automation, electrical control systems, and signal conditioning applications. Browse more Power Relays and components within the Electronics & Electricals category on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V DC.
It can handle a maximum switching current of 8A.
This model features a Double Pole Double Throw (DPDT) contact configuration.
The relay measures 29mm in length, 28mm in height, and 12.6mm in width.
The coil power consumption is 530mW.
The contact material is silver alloy, which provides low contact resistance and high conductivity.
The operating temperature range is from -40°C to +55°C.
The maximum switching voltage is 30V for both AC and DC.
It features PCB pin terminals for easy integration.
It has a rated life of 10 million cycles.
Yes, this model meets RoHS environmental standards.
It is manufactured in China.
