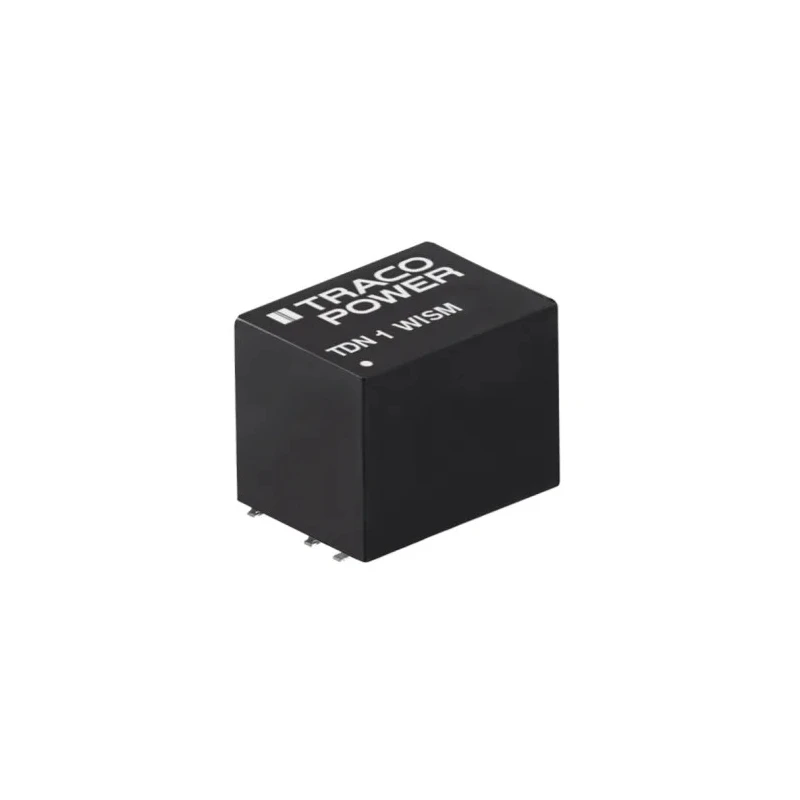

TRACOPOWER Isolated DC/DC Converter 5V DC 200mA Surface Mount 1W Power 9-36V Input TDN 1-2411WISM
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TDN 1WISM DC/DC Converter, 5V dc/ 200 m |
| Brand | TRACOPOWER |
| Efficiency | 78% |
| Length | 13.2mm |
| Model | TDN 1-2411WISM |
| Depth | 10.2mm |
| Width | 9.1mm |
| Mount Type | Surface |
| Series | TDN 1WISM |
| Maximum Operating Temperature | 90°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 8400000h |
| Number of outputs | 1 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 7 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 1:6 |
| Input Ratio1 | 6 |
Key Features
- Provides a regulated 5 V DC output from 9 to 36 V DC input voltage range.
- Offers 1.6 kV DC isolation voltage to ensure electrical safety.
- Compact surface mount design with dimensions 13.2mm length, 9.1mm width, and 10.2mm depth.
- Efficiency rating of 78% optimises power consumption and thermal management.
- Supports continuous automatic recovery from short circuit conditions.
- Suitable for use in automation control systems requiring stable voltage regulation.
- Ideal for embedded electronic systems and telecommunications equipment.
- Robust operation in extreme temperature environments from -40 °C to +90 °C.
Product Description
TRACOPOWER's TDN 1-2411WISM is a high-performance isolated DC/DC converter designed to convert input voltages ranging from 9 V to 36 V DC into a stable and regulated 5 V DC output at 200 mA, delivering a power rating of 1 W. Its compact surface mount package measures 13.2 mm in length, 9.1 mm in width, and 10.2 mm in depth, making it well-suited for space-constrained PCB applications across diverse industrial segments.
This DC/DC converter offers a high isolation voltage of 1.6 kV DC between input and output, ensuring safety in electrical systems. With an efficiency of 78%, it optimizes energy consumption and reduces heat generation, promoting system reliability.
Engineered for robust service in harsh operating environments, it functions reliably within temperature ranges from -40 °C up to 90 °C. The unit incorporates continuous automatic recovery from short circuit events without manual intervention, enhancing operational stability.
Applications of the TDN 1-2411WISM include industrial automation control systems, embedded electronics requiring precise, stable voltage, telecommunications infrastructure to improve signal integrity, and medical equipment demanding high safety and reliability standards.
Regulated 5 V DC output voltage at 200 mA current. Wide input voltage range of 9 to 36 V DC for versatile use cases. 7-pin surface mount package for compact and efficient PCB integration. Isolation voltage of 1.6 kV DC for enhanced electrical safety.
Efficient power conversion with 78% efficiency rating. Operational temperature range from -40 °C to +90 °C tolerates extreme conditions. MTBF of 8,400,000 hours ensures long-term reliability. Automatic recovery from short circuit conditions improves durability.
TRACOPOWER's TDN 1-2411WISM DC/DC converter is an essential component for engineers and designers needing a high-quality, compact, and efficient DC power supply solution to support demanding industrial, telecommunications, medical, and embedded system applications.
Discover a wide range of DC-DC Converters and related power supply products at EnvMart to meet your industrial and electronics requirements effectively.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with an input voltage range of 9 V to 36 V DC.
It provides a regulated output current of 200 mA at 5 V DC.
The dimensions are 13.2 mm in length, 9.1 mm in width, and 10.2 mm in depth.
The isolation voltage is 1.6 kV DC, ensuring enhanced electrical safety.
It has an efficiency rating of 78%, optimizing power consumption.
It operates reliably in temperature environments ranging from -40 °C to +90 °C.
This unit has one output.
It features a surface mount design, suitable for compact PCB applications.
The maximum output power is 1 W.
The MTBF is 8,400,000 hours, indicating long-term reliability.
It is suitable for industrial automation, embedded electronics, telecommunications, and medical equipment.
It has a total of 7 pins.
