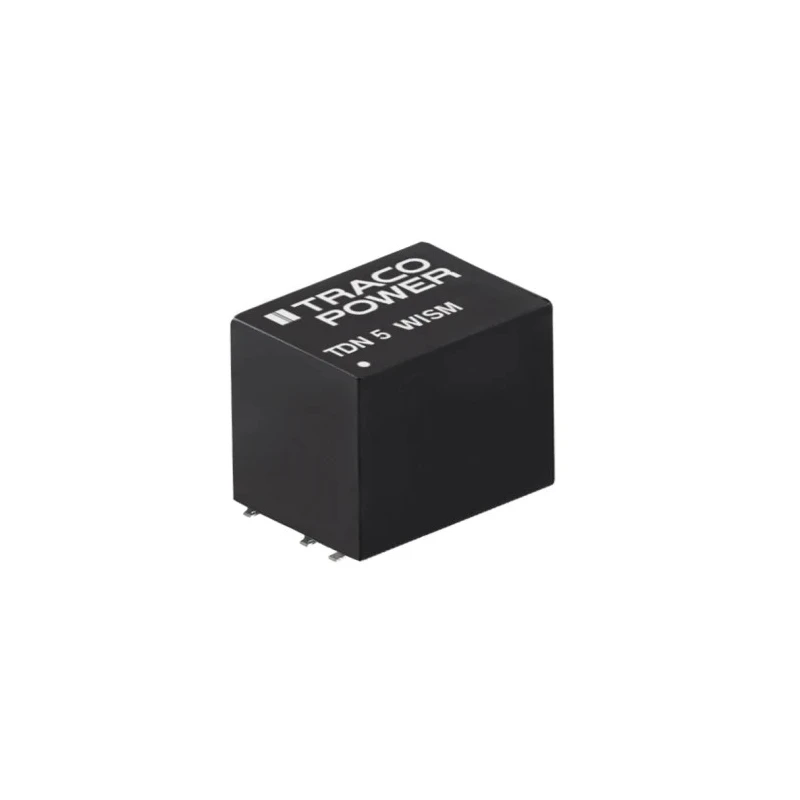

TRACOPOWER DC/DC Converter 24V dc Output 210 mA 36V dc Input 9V Input 5 W Surface Mount TDN 5-2415WISM

TRACOPOWER TDN 5-2415WISM is a high-performance DC/DC converter engineered for reliable voltage conversion in compact electronic devices. It provides a regulated 24V dc output current of 210 mA with a maximum output power of 5 W, supporting input voltages from 9V minimum up to 36V maximum, thanks to its wide 4:1 input ratio. Packaged in an ultra-compact surface mount module measuring just 13.2 mm length, 9.1 mm width, and 9.9 mm depth, it suits space-constrained applications.

This converter offers an I/O isolation voltage of 1.6kV dc to protect sensitive circuits from noise and voltage spikes. It maintains operation in harsh temperature conditions ranging from -40°C to +75°C, ensuring suitability for industrial, instrumentation, telecommunications, medical, and control system applications.

The device incorporates advanced features such as short circuit protection and remote On/Off control, enhancing system safety and flexibility. With an efficiency of 83%, it minimizes power loss and heat generation, improving overall system reliability.

Its surface mount package type facilitates easy integration into printed circuit boards (PCBs). The TDN 5-2415WISM series provides a mean time between failures (MTBF) of 2,960,000 hours, underscoring its durability.

Applications include use in industrial electronics power supplies, telecom equipment, medical instrumentation, and any scenario requiring compact, reliable DC voltage regulation with electrical isolation.

Compact surface mount design with dimensions 13.2 x 9.1 x 9.9 mm. High input voltage ratio of 4:1 covering wide input range from 9V to 36V dc. Efficient power conversion with 83% efficiency to minimize heat and energy loss.

Robust isolation voltage of 1.6kV dc for electrical safety and noise reduction. Wide operating temperature range from -40°C to 75°C for demanding environments. Features short circuit protection and remote On/Off for enhanced reliability.

Ideal for industrial electronics, telecommunications, instrumentation, medical, and control systems. Comes with a 3-year product warranty ensuring long-term performance. Explore the TRACOPOWER DC-DC Converter series at EnvMart for high-quality power conversion solutions tailored to various industrial and electronic applications.
