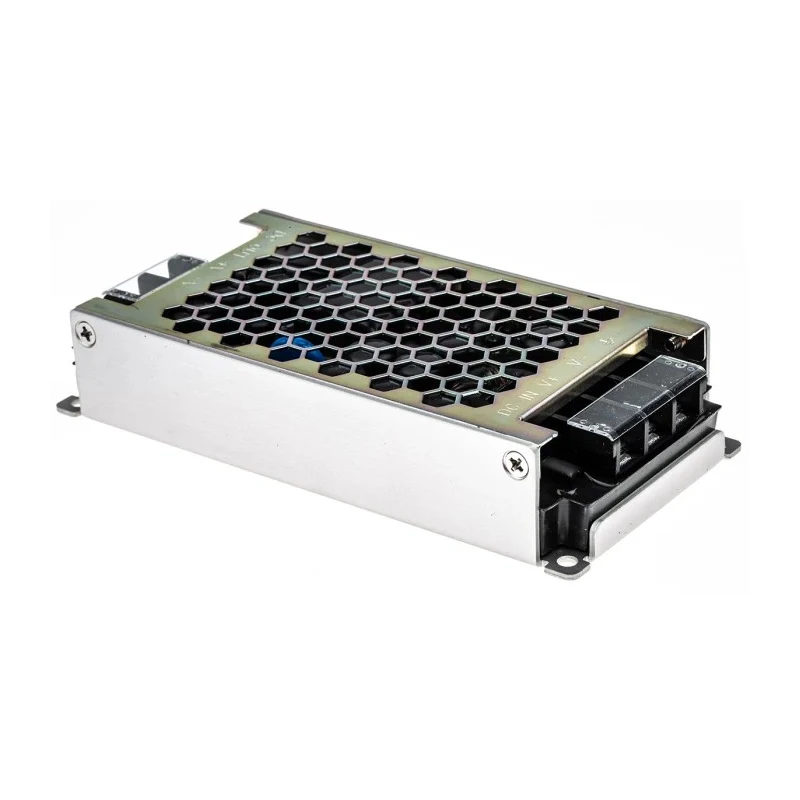

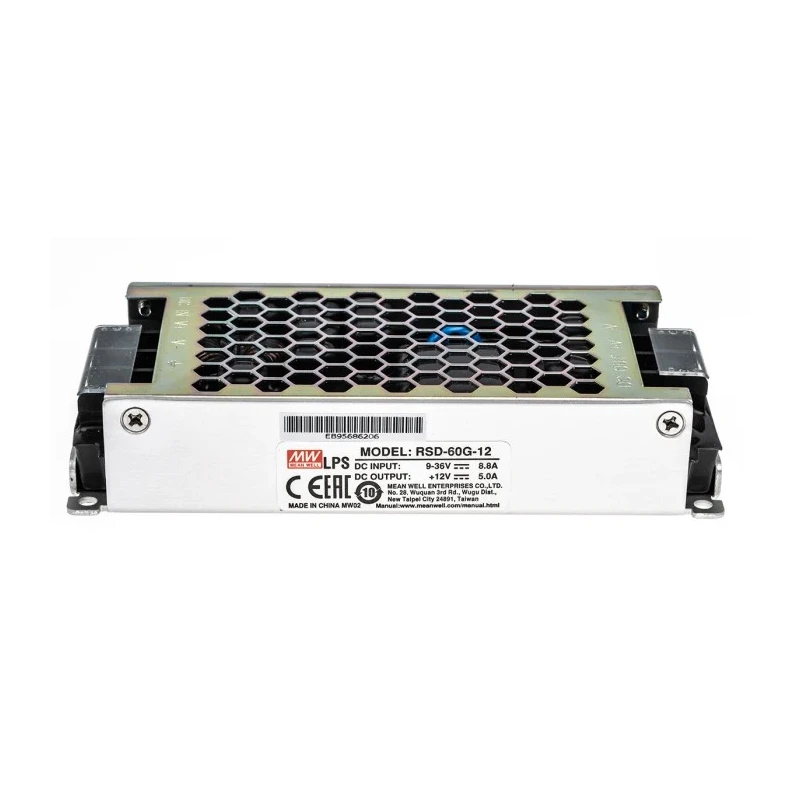

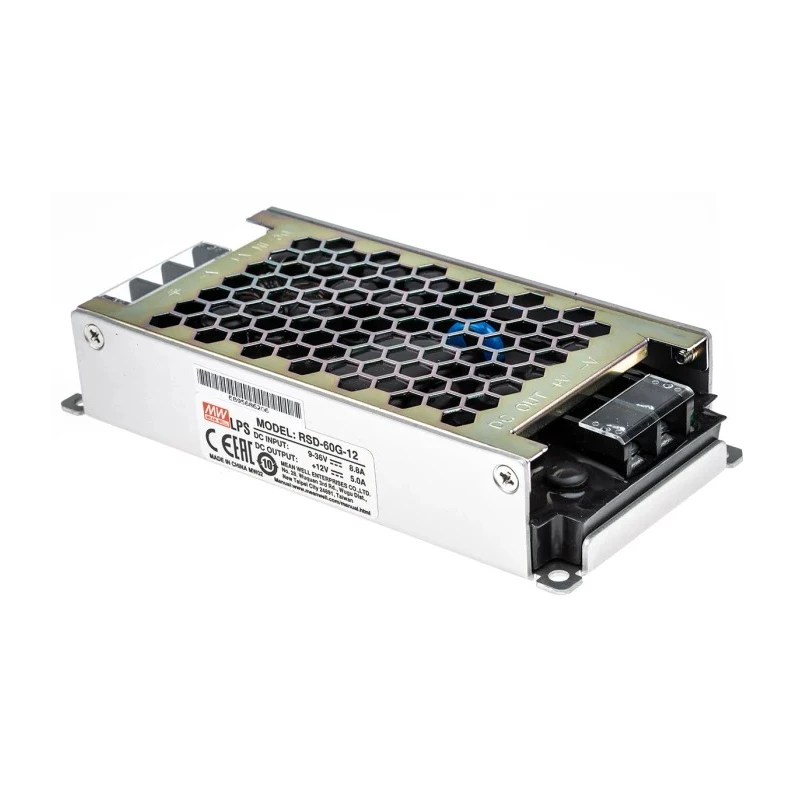

MEAN WELL DC/DC Converter , 12V DC Output, 36V DC Max Input, 5A Output Current, 60W Power, Chassis Mount, CE RSD-60G-12
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters MEAN WELL RSD-60 DC/DC Converter, 12V dc/, 36V dc |
| Brand | MEAN WELL |
| Efficiency | 92% |
| Length | 128mm |
| Model | RSD-60G-12 |
| Depth | 25mm |
| Gross Weight | 290g |
| Width | 60mm |
| Mount Type | Chassis Mount |
| Series | RSD-60 |
| Minimum Operating Temperature | 70°C |
| MTBF | 593800h |
| Number of outputs | 1 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Output Power | 60W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | CE |
| Minimum Input Voltage | 9V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 5A |
| Isolation Voltage | 4kV dc |
| Input Ratio | 1:6 |
| Input Ratio1 | 6 |
Key Features
- Wide input voltage range from 9V to 36V DC ensures versatile use.
- Chassis mount type offers reliable installation options.
- High reliability with Mean Time Between Failures (MTBF) of 593,800 hours.
- Designed for operating temperatures up to 70 °C maximum.
- Supports output current up to 5A with low ripple and noise of 50mV peak-to-peak.
- 4kV DC isolation voltage enhances safety and noise immunity.
- Compact dimensions of 128mm length, 60mm width, and 25mm depth for space-saving designs.
- Compliance with CE standards for quality and safety assurance.
Product Description
MEAN WELL RSD-60G-12 is a high-quality DC/DC converter designed for industrial and electronic applications requiring stable 12V DC output. Featuring a wide input voltage range from 9V to 36V DC and output power rated at 60W, this converter ensures efficient power delivery with an impressive efficiency of 92%. The chassis mount form factor facilitates secure and convenient installation in various equipment.
This converter operates reliably in environments with temperatures up to 70 °C and offers a Mean Time Between Failures (MTBF) of 593,800 hours, reflecting its robust engineering and durability. The unit delivers a consistent output current of 5A with minimized ripple and noise at 50mV peak-to-peak, suitable for sensitive electronic circuits.
The high isolation voltage of 4kV DC provides enhanced protection against electrical hazards and interference, making it ideal for industrial control systems, telecommunications, instrumentation, and railway equipment compliant with EN55015 and EN45542-2 standards. Its compact size of 128mm x 60mm x 25mm saves valuable space in design layouts.
Additional features include built-in constant current limiting circuits for overload protection, LED indicators for power status, and a comprehensive 3-year warranty ensuring dependable operation. The product is CE-certified and manufactured in China, meeting global quality benchmarks.
Wide input voltage range from 9V to 36V DC allows flexible power source selection. Stable 12V DC output voltage with 5A maximum current suitable for multiple applications. High MTBF of 593,800 hours guarantees long-term reliability.
Compact chassis mount design for easy integration. Efficient 92% conversion minimizes energy loss. Built-in protection features including constant current limiting. LED power indicator for operational status visibility. Compliance with CE and railway standards ensures safety and performance.
Operates in ambient temperatures up to 70 °C. Three-year warranty for peace of mind.
This MEAN WELL DC/DC converter series is widely applied in industrial controls, automation systems, telecommunications equipment, water treatment plants, and other industrial applications requiring reliable and consistent power conversion. Explore more products in the Power Supplies & Transformers category on EnvMart for complementary solutions.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 9V to 36V DC.
This converter has a maximum output power of 60W.
It can deliver a maximum output current of 5A.
The dimensions of this converter are 128mm in length, 60mm in width, and 25mm in depth.
The efficiency of this model is rated at 92%.
It is designed to operate at temperatures up to 70 °C.
The isolation voltage for this converter is 4kV DC, providing enhanced protection against electrical hazards.
The ripple and noise is specified at 50mV peak-to-peak.
This model features a chassis mount design for secure installation.
It is compliant with CE standards, ensuring quality and safety assurance.
This converter is suitable for industrial controls, telecommunications, instrumentation, and railway equipment.
The MTBF for this model is 593,800 hours, indicating its reliability.
