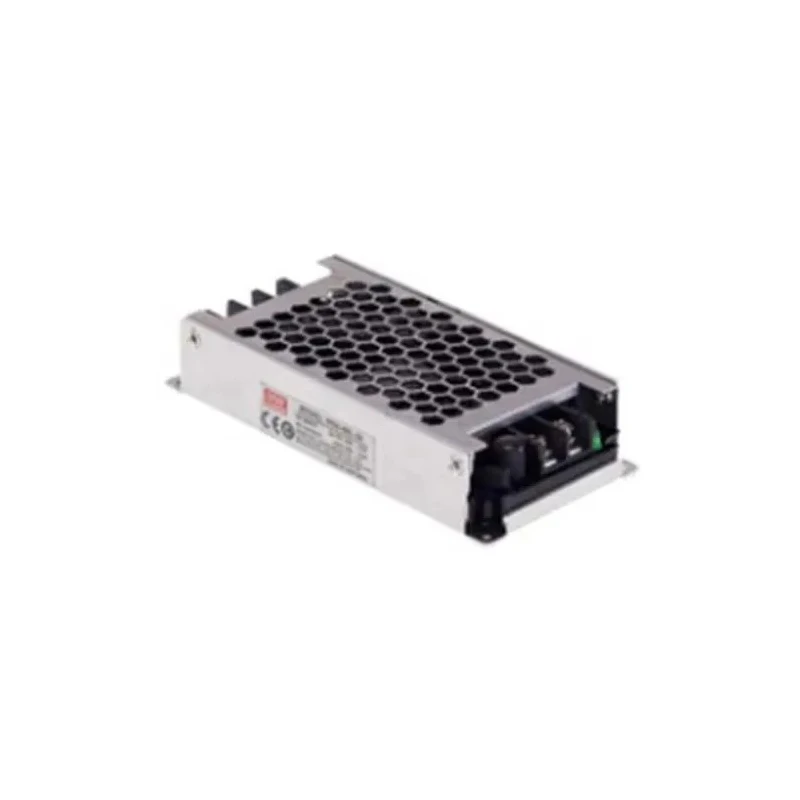

MEAN WELL DC/DC Converter 3.3V DC Output, 160V DC Max Input, 12A Output Current, Chassis Mount, 70°C Max RSD-60H-3.3
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Efficiency | 87% |
| Length | 128mm |
| Model | RSD-60H-3.3 |
| Depth | 25mm |
| Gross Weight | 290g |
| Width | 25mm |
| Mount Type | Chassis |
| Series | RSD-60 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 593800h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 39.6W |
| Maximum Input Voltage | 160V dc |
| Standards/Approvals | EN/IEC |
| Minimum Input Voltage | 40V |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 12A |
| Isolation Voltage | 4kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
Key Features
- Chassis mount design for easy installation and effective heat dissipation.
- Operating temperature range from -40°C to 70°C for reliable performance in harsh environments.
- High efficiency of 87% ensures energy saving and low heat generation.
- Over 593,800 hours MTBF indicating long operational life and reliability.
- Provides 4kV DC isolation voltage, enhancing safety and noise reduction.
- Ripple and noise minimized to 100mV peak-to-peak for stable output.
- Single output with a maximum output power of 39.6W suitable for industrial and electronic equipment.
- Compliance with EN/IEC standards ensures product quality and safety.
Product Description
MEAN WELL RSD-60H-3.3 DC/DC Converter is a highly reliable power conversion solution designed for industrial and electronic applications requiring stable 3.3V DC output from a wide input voltage range of 40V to 160V DC. This chassis-mounted converter supports up to 12 amps of output current and offers peak efficiency of 87%, contributing to reduced energy loss and minimized heat dissipation.
Its wide operating temperature range from -40°C to 70°C allows deployment in harsh and demanding environments, making it suitable for telecommunications, industrial automation, and power supply systems.
The converter features a robust isolation voltage of 4kV DC, ensuring electrical isolation between input and output circuits, thereby enhancing system safety and noise immunity. Its compact size (128mm x 25mm x 25mm) and lightweight design (approx. 290g) facilitate space-efficient integration into equipment enclosures.
Additional features include a 4:1 input voltage ratio allowing compatibility with various voltage sources, a ripple and noise rating of 100mV peak-to-peak for clean output power, and an impressive mean time between failures (MTBF) of 593,800 hours demonstrating its durability and quality.
MEAN WELL RSD series converters adhere to EN/IEC standards, ensuring compliance and reliability in professional electronic and industrial installations. Chassis mount type ensures secure mechanical installation and effective heat dissipation.
Wide input voltage range accommodates supply fluctuations and different power sources. High efficiency reduces power wastage and extends the life of connected devices. Robust isolation voltage protects sensitive electronics from electrical faults.
Compact and lightweight design suits constrained spaces. Wide temperature range ensures consistent operation under varied environmental conditions. Quality assured by compliance with international standards EN/IEC. Ideal for use in telecommunications, industrial equipment, and power supply applications requiring stable DC voltage.
Explore the complete range of DC-DC Converters at EnvMart to find solutions tailored to your specific power conversion needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 160V DC.
It supports a maximum output current of 12A.
The efficiency rating is 87%, contributing to reduced energy loss.
The operating temperature range is from -40°C to 70°C.
The ripple and noise is minimized to 100mV peak-to-peak.
This model features a chassis mount design for secure installation.
It offers an isolation voltage of 4kV DC, enhancing safety and noise reduction.
The dimensions are 128mm in length, 25mm in width, and 25mm in depth.
The maximum output power is 39.6W.
It complies with EN/IEC standards, ensuring product quality and safety.
The MTBF is 593,800 hours, indicating its reliability.
It supports a wide input voltage range from 40V to 160V DC.
