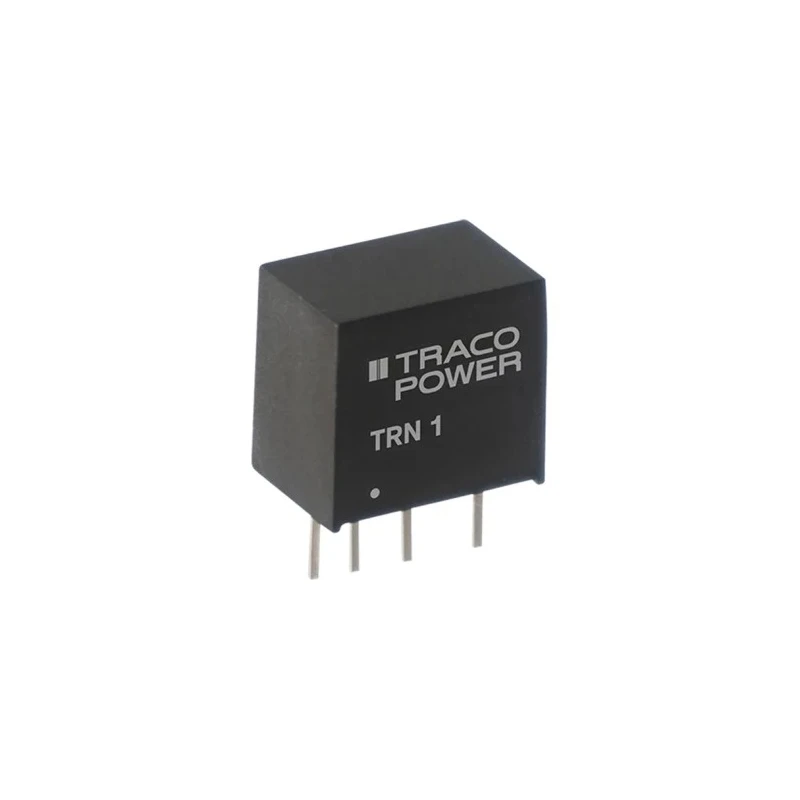

TRACOPOWER High Performance 1W SIP DC/DC Converter, 12V DC Output, 45mA, 18V-36V Input, PCB Mount, 90°C Max Temp TRN 1-2422
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TRN 1 DC/DC Converter, 12V dc/ 45 mA, 3 |
| Brand | TRACOPOWER |
| Efficiency | 82% |
| Length | 11.9mm |
| Model | TRN 1-2422 |
| Depth | 7.7mm |
| Width | 11mm |
| Mount Type | PCB |
| Series | TRN 1 |
| Maximum Operating Temperature | 90°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 7400000h |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 45mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -12V dc |
Key Features
- High efficiency of 82 percent ensures minimal power loss.
- Compact SIP package with size 11.9mm x 11mm x 7.7mm for space-constrained designs.
- Wide operating temperature from -40°C to +90°C supports harsh environments.
- 1600 VDC isolation voltage for reliable electrical isolation between input and output.
- Designed to meet IEC/EN 62368-1 safety standard requirements.
- Mean time between failures (MTBF) of 7.4 million hours indicates high reliability.
Product Description
TRACOPOWER TRN 1-2422 is a high-performance 1W SIP DC/DC converter designed for industrial and electronic applications requiring stable, isolated DC power conversion. It provides a 12V DC output at 45mA with a wide input voltage range of 18V to 36V. This PCB-mounted module features a compact and rugged package measuring 11.9mm length, 11mm width, and 7.7mm depth, making it suitable for densely packed electronic assemblies.
The converter operates efficiently at 82 percent efficiency and withstands extreme temperatures from -40°C up to 90°C, delivering reliable operation in harsh environments such as industrial control systems, instrumentation, and telecommunications equipment. Its 1600 VDC input/output isolation ensures electrical safety and noise reduction, critical in sensitive applications.
With an MTBF of 7,400,000 hours, the TRN 1-2422 offers excellent longevity and reduced maintenance. Designed to comply with IEC/EN 62368-1 standards, it is suited for modern electronic equipment.
Applications include industrial power supply isolation, signal conditioning, battery-powered devices, embedded systems, and any solution requiring stable, isolated low-power DC voltage conversion on a PCB footprint.
High efficiency minimizes heat generation. Wide input voltage range supports variable power environments. Strong isolation voltage for electrical safety and signal integrity. Compact SIP package enables space-saving circuit design.
Wide temperature range for versatile environments. Long MTBF for dependable industrial use. Meets IEC/EN 62368-1 safety standard compliance. Explore this product in EnvMart’s Electronics & Electricals category under DC-DC Converters for industrial-grade DC power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is 12V DC with an output current of 45mA.
It operates within an input voltage range of 18V to 36V DC.
The maximum operating temperature for the TRN 1-2422 is 90°C.
This model has an efficiency rating of 82%.
The dimensions of this converter are 11.9mm in length, 11mm in width, and 7.7mm in depth.
This unit is designed for PCB mounting.
The isolation voltage for this model is 1600 VDC, ensuring reliable electrical isolation between input and output.
The MTBF for the TRN 1-2422 is 7.4 million hours, indicating high reliability.
It is designed to meet the IEC/EN 62368-1 safety standard requirements.
This model can operate in a wide temperature range from -40°C to 90°C, suitable for harsh environments.
The converter has two outputs: one at 12V DC and another at -12V DC.
The country of origin for this model is Taiwan.
