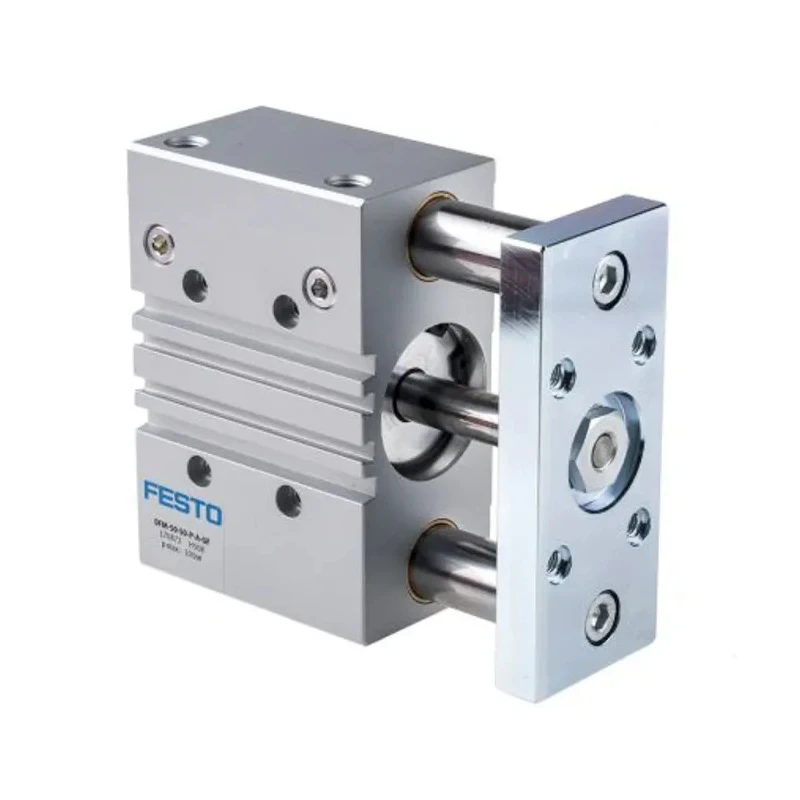

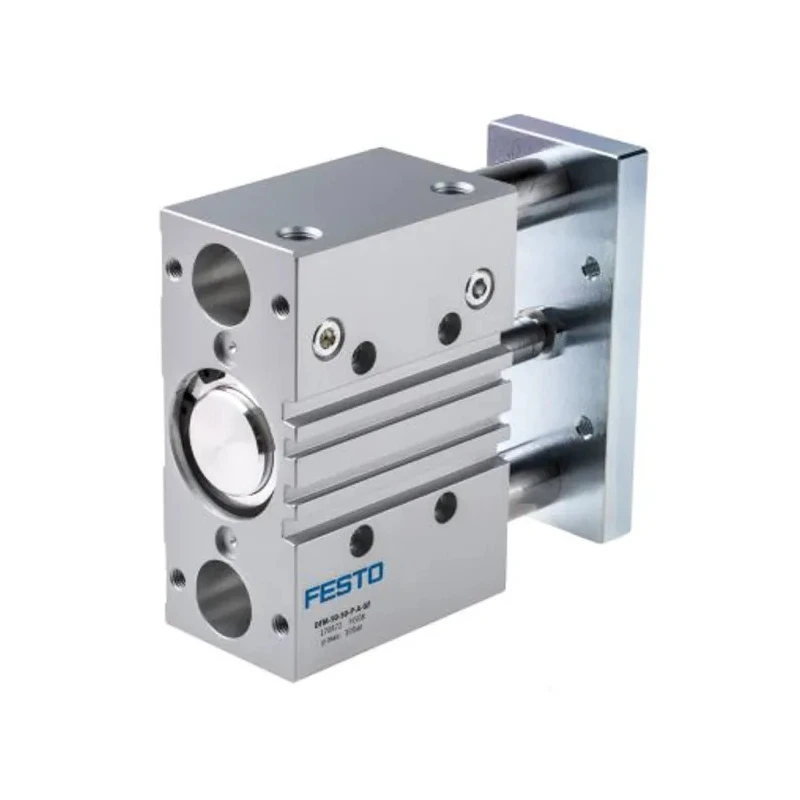

Festo Pneumatic Guided Cylinder Double Acting 63mm Bore 125mm Stroke DFM Series DFM-63-125-P-A-GF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Wrought Aluminium Alloy, High Alloy Stainless Steel, Polyurethane, Nitrile Rubber (NBR), Tempered Steel |
| Maximum Operating Pressure | 10 bar |
| Height | 78mm |
| Length | 259mm |
| Model | DFM-63-125-P-A-GF |
| Gross Weight | 7.9kg |
| Width | 162mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 125mm |
| Bore Diameter | 63mm |
| Action Type | Double Acting |
| Standards/Approvals | RoHS, ISO 228-1, ISO 1179-1 |
| Cushioning Type | Elastomer |
| Guide Type | Plain Bearing, Ball Bearing |
Key Features
- Integrates drive and guide in a single maintenance-free housing.
- Equipped with four plain slide bearings for high rigidity against lateral forces.
- Features flexible cushioning plates to reduce noise and extend service life.
- Compact aluminum construction resists torque and lateral external forces.
- Top and side air supply ports enable versatile mounting options.
- Suitable for clamping, lifting, stopping, and material handling operations.
- Operating temperature range from -20°C to 80°C.
- Constructed with wrought aluminium alloy, high alloy stainless steel, polyurethane, nitrile rubber, and tempered steel.
Product Description
Festo DFM-63-125-P-A-GF pneumatic guided cylinder is a precision double acting actuator combining drive and guide in one compact housing. It features a 63 mm bore diameter and 125 mm stroke length, perfectly suited for high-load industrial pneumatic applications including clamping, material handling, stopping, and lifting.
Featuring four plain slide bearings on large diameter guide rods, this cylinder provides excellent rigidity and resistance to lateral forces and torque. Its rugged construction uses high-quality materials such as wrought aluminium alloy, stainless steel, polyurethane, nitrile rubber (NBR), and tempered steel, ensuring durability and maintenance-free operation.
The series includes flexible cushioning plates that minimize noise during operation and prolong the product's service life. Its compact design integrates the piston rod as part of the guide body for precise movement. Conveniently positioned air supply ports on the top and side of the cylinder offer flexible installation possibilities to adapt to various industrial setups.
Operating within -20°C to 80°C and up to a maximum pressure of 10 bar, this guided cylinder is an ideal choice for demanding applications requiring high precision and reliability. Compliance with RoHS standards and international norms ISO 228-1 and ISO 1179-1 reflects its quality and safety.
Drive and guide unit in a single housing for compact and precise operation. Four plain slide bearings assure excellent stiffness under lateral and torque loads. Flexible cushioning plates reduce noise and extend cylinder life.
Multiple air supply ports provide installation versatility. Maintenance-free aluminum and steel construction for durability. Suitable for industrial, manufacturing, automation, and material handling settings. Dimensions: Length 259 mm, Width 162 mm, Height 78 mm.
Weight: 7.9 kg.
The set balances robust mechanics with precise pneumatic control, making it ideal for demanding industrial environments such as manufacturing lines, automated machinery, and process controls.
Explore more Pneumatic Guided Cylinders and actuators on EnvMart for industrial automation and fluid power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this pneumatic guided cylinder is 63 mm.
The stroke length of the DFM-63-125-P-A-GF is 125 mm.
This model has a maximum operating pressure of 10 bar.
The operating temperature range for this pneumatic guided cylinder is from -20°C to 80°C.
It is constructed from wrought aluminium alloy, high alloy stainless steel, polyurethane, nitrile rubber (NBR), and tempered steel.
The DFM-63-125-P-A-GF features elastomer cushioning to reduce noise and extend service life.
This pneumatic guided cylinder uses a through hole mount type for installation.
The dimensions of this model are 259 mm in length, 162 mm in width, and 78 mm in height.
This pneumatic guided cylinder weighs 7.9 kg.
The DFM-63-125-P-A-GF complies with RoHS standards and international norms ISO 228-1 and ISO 1179-1.
This pneumatic guided cylinder is suitable for clamping, lifting, stopping, and material handling operations.
The DFM-63-125-P-A-GF operates as a double acting cylinder.
