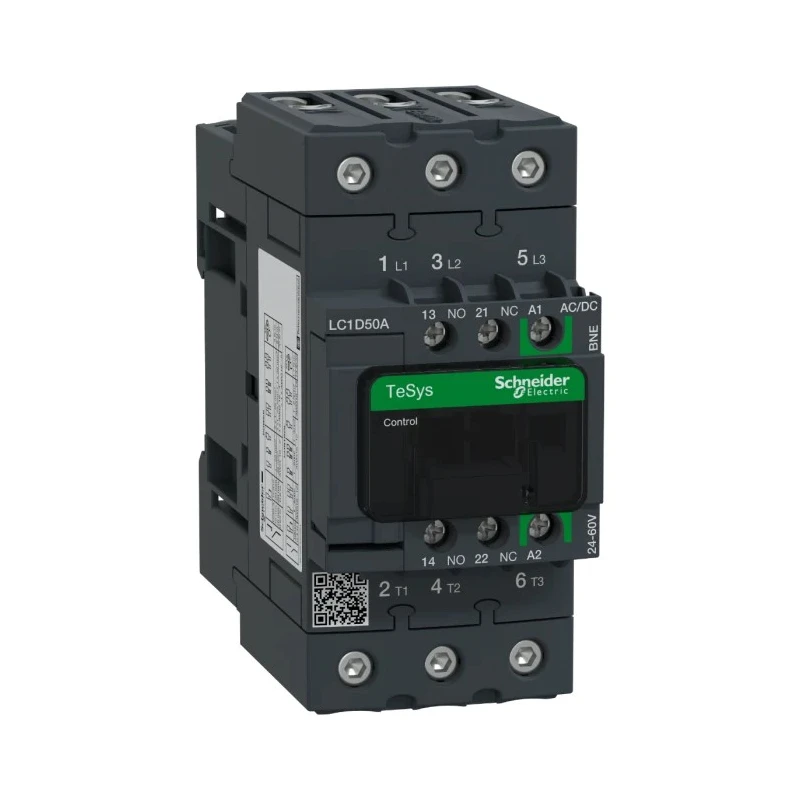

Schneider Electric LC1D Contactor, 24V AC/DC Coil, 3-Pole, 50A, 22 kW Power Rating, 3 NO Auxiliary Contacts, 690V AC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 55mm |
| Model | LC1D |
| Depth | 122mm |
| Width | 120mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 22kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | IEC, RoHS, UL, CCC, CSA, EAC |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac/dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 50A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 50A |
| Control Circuit Voltage Uc | 60V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3PST |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with 3 normally open (NO) contacts for load switching.
- Screw terminal type ensures secure and reliable connections.
- Mounts easily on DIN rail for straightforward installation.
- Operates within a coil voltage range of 24V AC/DC and control circuit voltage of 60V.
- Designed for use with industrial motors, heating elements, and various resistive loads.
- Features 1 NO and 1 NC auxiliary contacts to expand switching capabilities.
- Operates safely from -25°C to 60°C ambient temperatures.
- Complies with IEC, RoHS, UL, CCC, CSA, and EAC standards for reliable performance and safety.
Product Description
Schneider Electric LC1D50ABNE Contactor is a robust 3-pole contactor designed for industrial and automation applications requiring reliable motor control and switching of resistive loads. It features a 24V AC/DC coil with a control circuit voltage rated at 60V, enabling flexible integration in various control systems.
With a contact current rating of 50A and a power rating of 22 kW, this contactor is suitable for managing small to medium electric motors and resistive heating elements. The device is constructed to IEC international standards and is certified for safety compliance with RoHS, UL, CCC, CSA, and EAC approvals, underscoring its reliability and quality.
The LC1D series contactors include two auxiliary contacts (1 NO and 1 NC) for enhanced functionality and easy system interfacing. With screw-type terminals featuring IP20 finger protection and dual international markings, installation is secure and straightforward. Its compact dimensions (55mm length × 120mm width × 122mm depth) allow for efficient panel mounting or DIN rail installation.
This contactor operates effectively across a wide temperature range (-25°C to 60°C), fulfilling demanding industrial environmental conditions. Applications include motor starting, resistive heating control, and general switching operations in sectors like manufacturing, HVAC, water treatment, and agricultural machinery.
The device supports the utilisation categories AC-1 and AC-3, making it suitable for resistive loads and squirrel cage motor applications requiring switching under running conditions. Its built-in diode suppressor protects the coil from voltage spikes, ensuring longevity and operational reliability.
Designed with sustainability in mind, the LC1D50ABNE is part of Schneider Electric’s Better World product range, constructed for easy disassembly and recycling to reduce environmental impact.
Equipped with 3 normally open contacts for switching capability. Screw terminal type with international markings and finger-safe protection. Mounts on DIN rail or panel mount with screws for flexibility. Operate within a coil voltage of 24V AC/DC and control circuit voltage up to 60V.
Rated for contact current of 50A and power rating of 22 kW. Includes 1 NO and 1 NC auxiliary contacts for additional switching. Compact dimensions facilitate installation into control panels. Wide operating temperature range from -25°C to +60°C for industrial use.
Complies with IEC, RoHS, UL, CCC, CSA, and EAC standards ensuring quality and safety. Designed for disassembly as part of Schneider Electric's sustainability commitments. Explore our full range of power and auxiliary Contactors from Schneider Electric at EnvMart for reliable industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D contactor has a power rating of 22 kW.
This model operates with a coil voltage of 24V AC/DC.
The contactor can handle a maximum contact current of 50A.
The dimensions of the LC1D contactor are 55mm in length, 120mm in width, and 122mm in depth.
This contactor is a 3-pole device.
The LC1D includes 2 auxiliary contacts, configured as 1 normally open (NO) and 1 normally closed (NC).
It operates effectively within a temperature range of -25°C to 60°C.
The contactor complies with IEC, RoHS, UL, CCC, CSA, and EAC standards.
This model mounts easily on a DIN rail or can be panel mounted using screws.
The control circuit voltage for this contactor is rated at 60V.
It is designed for motor control and switching of resistive loads.
The contactor features screw-type terminals with IP20 finger-safe protection and international markings.
