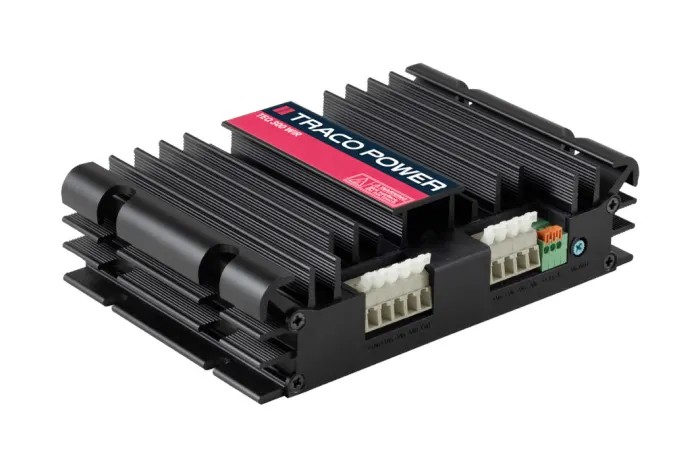

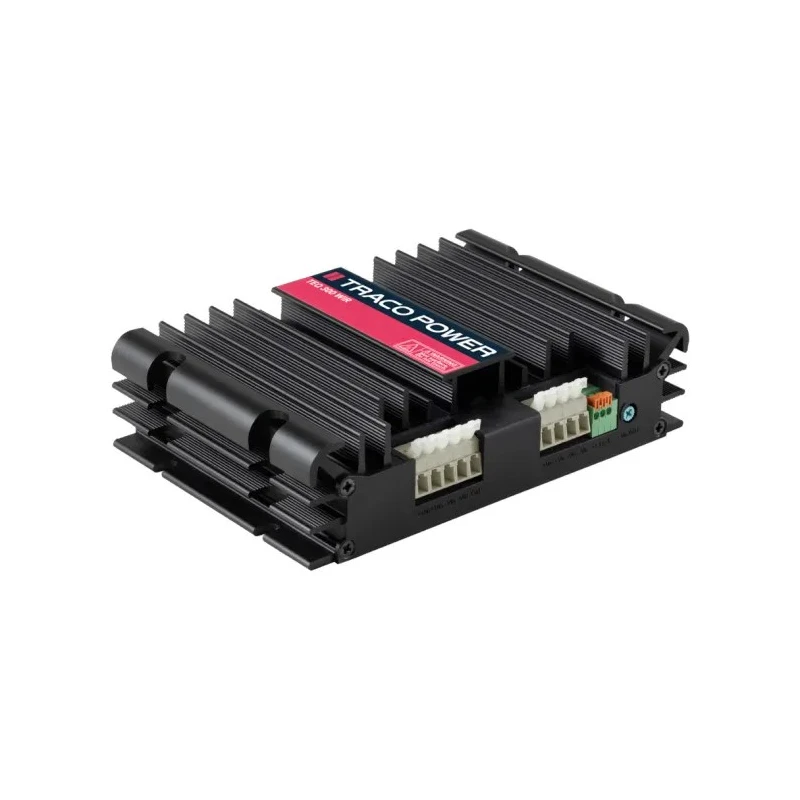

TRACOPOWER TEQ 300WIR Isolated DC/DC Converter 300W 38.4V Output 160V Input 6.3A 3kV Isolation TEQ 300-7218WIR
Specifications
| Country of Origin | India |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 92% |
| Length | 152.4mm |
| Model | TEQ 300-7218WIR |
| Depth | 38.6mm |
| Width | 101.6mm |
| Series | TEQ 300WIR |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 149000h |
| Number of outputs | 5 |
| Maximum Output Power | 300W |
| Maximum Input Voltage | 160V |
| Minimum Input Voltage | 43V |
| Output Voltage 1 | 38.4V |
| Output Current 1 | 6.3A |
| Isolation Voltage | 3kV |
| Input Ratio | 4:1 |
| Output Voltage 2 | 57.6V |
| Input Ratio4 | 1 |
| Ultra wide 4 | 1 input voltage range |
Key Features
- Five outputs provide versatility for industrial power applications.
- High efficiency up to 92% optimizes energy saving and thermal performance.
- Operating temperature range extends from -40°C to +80°C suitable for harsh environments.
- 3kV isolation voltage ensures excellent electrical safety and interference protection.
- MTBF of 149,000 hours indicates high reliability and durability.
- Robust sealed metal case designed for chassis mounting without PCB attachment.
- Input protection features include under voltage lock-out, reverse voltage, and soft start electronics.
- Power sharing capability enables parallel operation of up to three units.
Product Description
TRACOPOWER TEQ 300-7218WIR is an industrial-grade isolated DC/DC converter module delivering 300 watts of power with a wide 4:1 input voltage range from 43V to 160V, making it ideal for battery-operated and industrial applications requiring reliable and efficient voltage conversion.
Featuring an output voltage of 38.4V and a maximum output current of 6.3A, this unit offers five separate outputs with adjustable voltage ranges of ±20%, enhancing its flexibility in various power supply scenarios.
The rugged sealed metal case is designed specifically for chassis mounting where PCB mounting is not feasible, providing excellent thermal convection and protection against harsh environmental factors, including temperature extremes from -40°C to +80°C.
Electrical isolation up to 3 kV ensures safety and reduces electrical noise, vital for sensitive industrial or railway electronics. With efficiency up to 92%, the converter minimizes power loss and thermal buildup, improving system reliability.
Versatile five-output design suitable for complex power distribution. Wide input voltage supports battery and industrial power variations. Robust construction for durability in demanding environments. EN 50155 compliance supports railway standard requirements.
Advanced input protection features guard against electrical faults. High MTBF of 149,000 hours guarantees long operational life. Power sharing allows multiple units parallel operation for increased capacity. Thermal convection cooling negates the need for additional fans.
Ideal for industrial, railway, manufacturing, and heavy-duty power systems.
TRACOPOWER’s TEQ 300WIR series DC/DC converters provide a dependable power solution for critical industrial and railway applications. Their wide input range, high efficiency, and robust design ensure operational integrity under challenging conditions.
Explore similar DC-DC Converters and power supply solutions in the Electronics & Electricals category at EnvMart for your industrial power needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a wide input voltage range from 43V to 160V, accommodating various industrial and battery-operated applications.
The maximum output power of the TEQ 300WIR is 300 watts, suitable for demanding power requirements.
It features five separate outputs, allowing for versatile power distribution in various applications.
The TEQ 300WIR achieves an efficiency of up to 92%, optimizing energy usage and minimizing thermal buildup.
This unit measures 152.4mm in length, 101.6mm in width, and 38.6mm in depth, designed for chassis mounting.
The operating temperature range extends from -40°C to +80°C, making it suitable for harsh environments.
It offers an isolation voltage of 3 kV, ensuring electrical safety and reducing noise for sensitive applications.
The maximum output current for the first output is 6.3A, supporting various load requirements.
The TEQ 300WIR includes under voltage lock-out, reverse voltage protection, and soft start electronics to safeguard against electrical faults.
Yes, this model supports power sharing capability, allowing for the parallel operation of up to three units for increased capacity.
The mean time between failures (MTBF) for this unit is 149,000 hours, indicating high reliability for continuous operation.
This model is manufactured in India, reflecting its industrial-grade quality.
