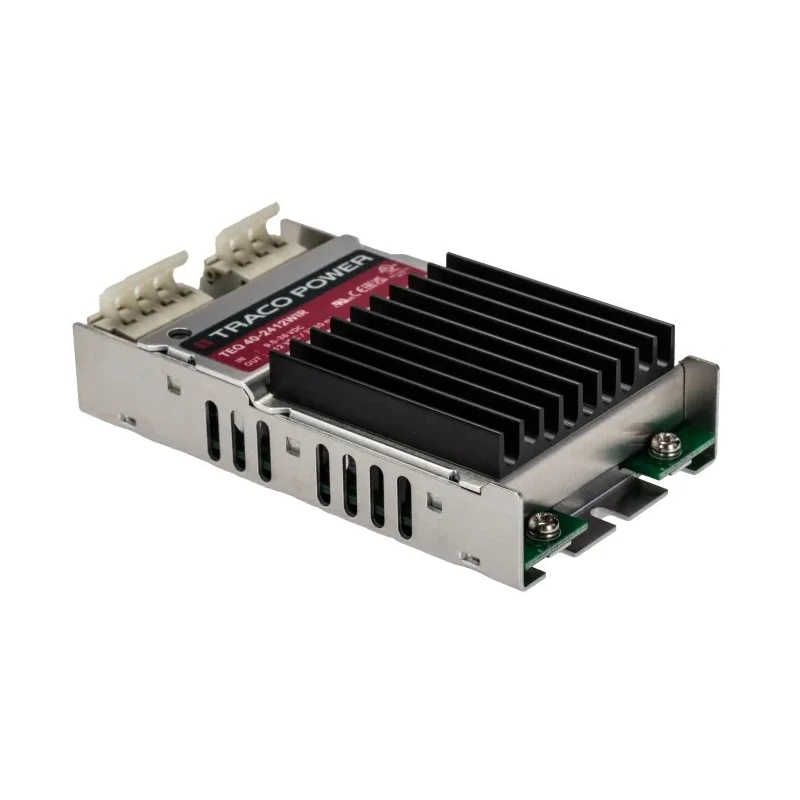

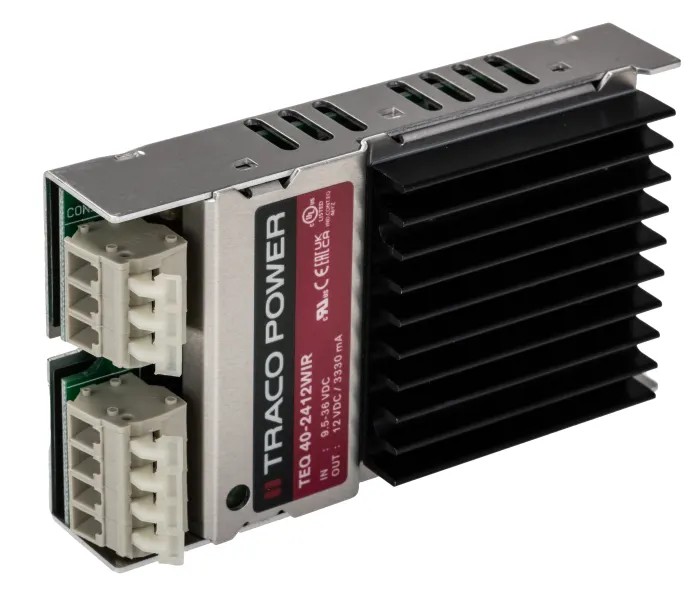

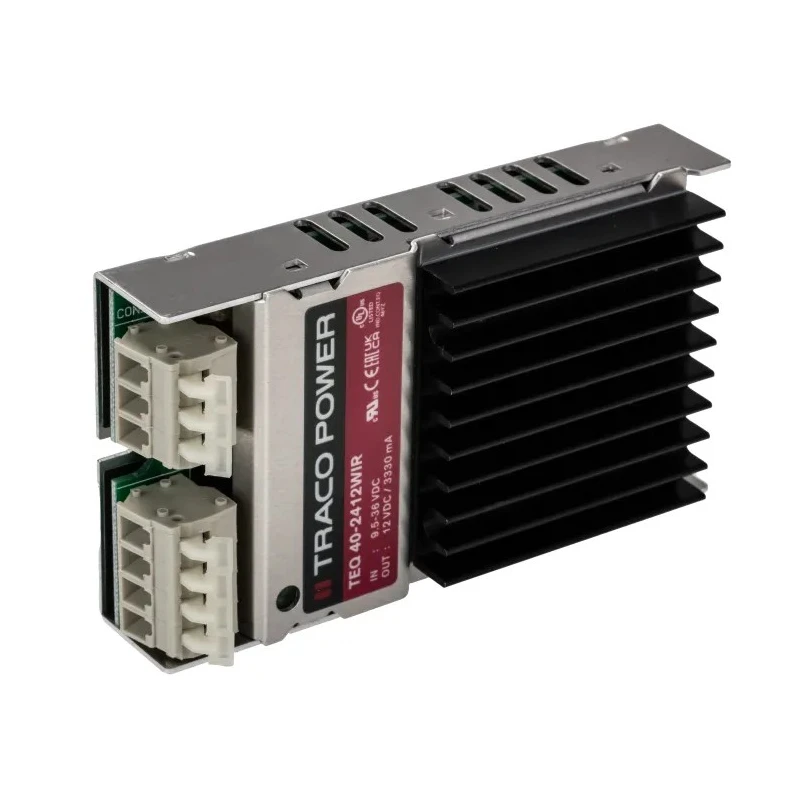

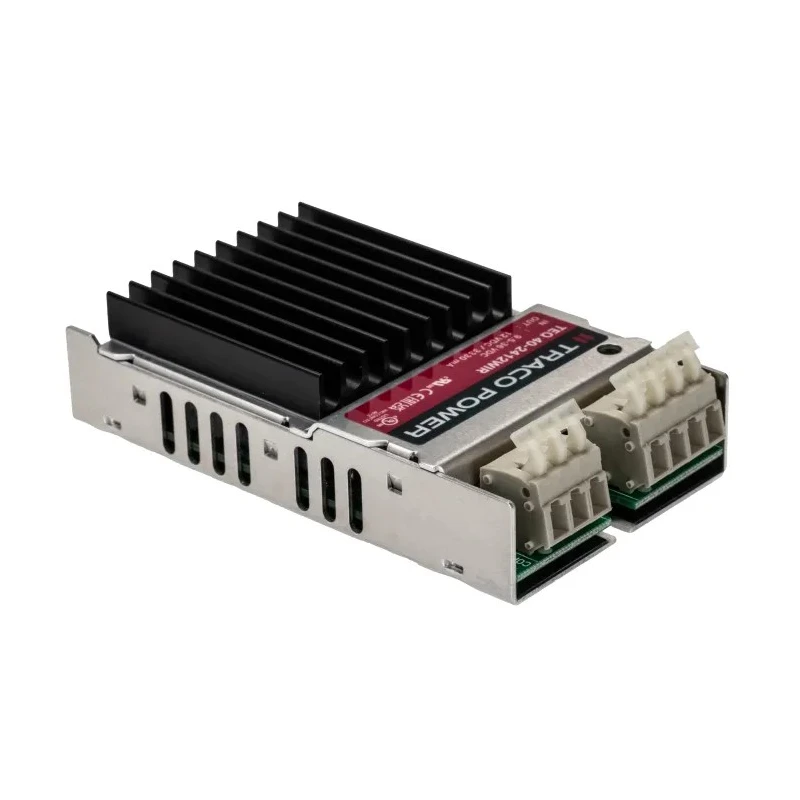

TRACOPOWER DC/DC Converter 12V Output 40W Power, 9.5V to 36V Input, Chassis Mount TEQ 40-2412WIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEQ 40WIR DC/DC Converter, 12V dc/, 36V |
| Brand | TRACOPOWER |
| Efficiency | 91% |
| Length | 103mm |
| Model | TEQ 40-2412WIR |
| Depth | 26.1mm |
| Width | 57.2mm |
| Mount Type | Chassis Mount |
| Series | TEQ 40WIR |
| Maximum Operating Temperature | 92°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 1 |
| Maximum Output Power | 40W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9.5V |
| Number of Pins | 7 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 3.33mA |
| Isolation Voltage | 3kV dc |
| Input Ratio | 1:6 |
| Input Ratio1 | 6 |
Key Features
- Operates on a wide input voltage range from 9.5V to 36V DC.
- Compact chassis mount design simplifies installation in electronic and automation systems.
- Provides isolation voltage of 3kV DC for enhanced safety in sensitive equipment.
- Efficiency rating of 91% reduces energy losses and operational costs.
- Operates reliably from -40 to +92°C for harsh environmental conditions.
- Features 1 output with 3.33mA current capacity suitable for precise power conversion.
- Robust MTBF of 1,000,000 hours ensures long-term dependable operation.
- Compliance with railway standards makes it suitable for transportation industry applications.
Product Description
TRACOPOWER TEQ 40-2412WIR DC/DC Converter is a high-performance isolated power converter designed for applications demanding stable 12V DC output within a robust chassis mount enclosure. It is engineered to accept input voltages ranging from 9.5V to 36V DC, supporting reliable power conversion in diverse industrial, automation, electrical, and mechanical systems.
This converter boasts a maximum output power of 40W, an output current of 3.33mA, and an isolation voltage of 3kV DC, safeguarding sensitive electronic components from voltage fluctuations and interference. The device's high efficiency of 91% contributes to reduced energy consumption, making it cost-effective for continuous operation.
The design supports operation across extreme temperature ranges, from -40°C to +92°C, rendering it suitable for harsh environments, including railway and industrial applications. Its chassis mount form factor facilitates straightforward installation and integration in control panels and equipment racks.
Key features include an input ratio of 1:6, 7-pin connectivity, and a mean time between failures (MTBF) rated at 1,000,000 hours, emphasizing durability and reliability. While it does not list additional approvals, the product's construction and specifications align with demanding safety and performance standards.
Wide input voltage range of 9.5V to 36V DC provides flexibility for various power sources. Isolated DC/DC conversion enhances safety in sensitive and critical electronic systems. Compact chassis mount facilitates easy integration into existing equipment layouts.
High efficiency of 91% lowers heat generation and improves energy use. Robust temperature tolerance supports operation in extreme environmental conditions. Long MTBF ensures minimal maintenance and downtime in industrial settings.
Compliance suitable for railway applications supports specialized use cases.
This product is ideal for electronics manufacturing, automation systems, electrical machinery, and railway power supply needs where reliable, isolated DC power conversion is critical.
Explore EnvMart's extensive range of DC-DC Converters for diverse industrial and commercial power applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TRACOPOWER TEQ 40-2412WIR operates on a wide input voltage range from 9.5V to 36V DC.
This converter has a maximum output power of 40W.
It provides a stable output voltage of 12V DC with a current capacity of 3.33mA.
The efficiency rating of this model is 91%, which helps reduce energy losses.
This converter features an isolation voltage of 3kV DC, enhancing safety in sensitive applications.
The dimensions are 103mm in length, 57.2mm in width, and 26.1mm in depth.
It operates reliably in temperatures ranging from -40°C to +92°C.
The TRACOPOWER TEQ 40-2412WIR is designed for chassis mounting, simplifying installation in various systems.
The MTBF for this converter is rated at 1,000,000 hours, indicating long-term reliability.
This model features one output.
It is compliant with railway standards, making it suitable for transportation industry applications.
This model is ideal for use in electronics manufacturing, automation systems, electrical machinery, and railway power supply needs.
