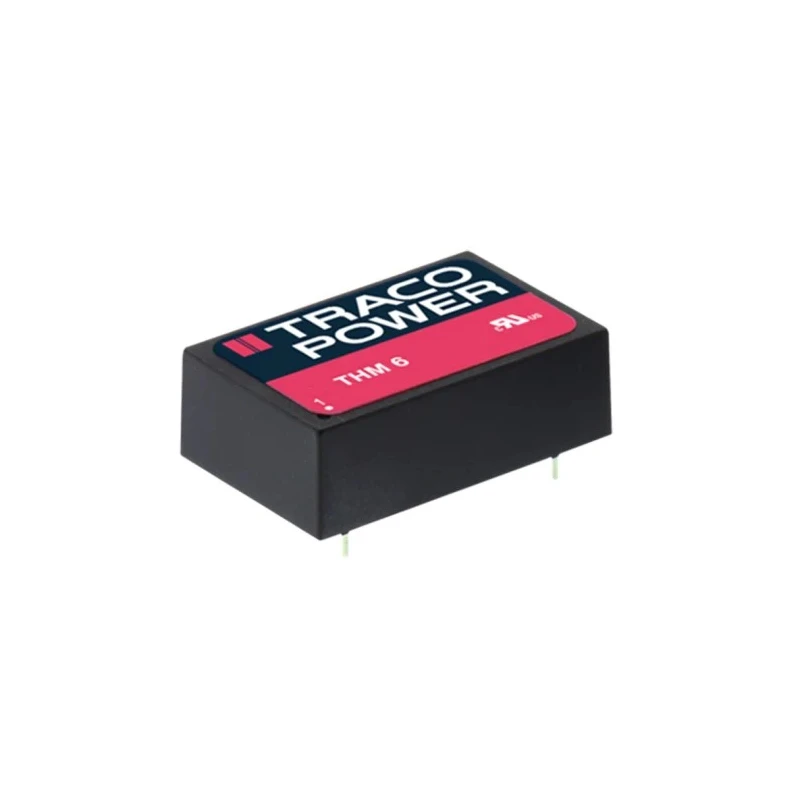

TRACOPOWER 6 Watt DC/DC Converter, 3.3V DC, 1.8A Output, 18-36V DC Input, PCB Mount, DIP Package, 90°C Max Temp THM 6-2410
Specifications
| Country of Origin | India |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 83% |
| Length | 31.8mm |
| Model | THM 6-2410 |
| Depth | 10.2mm |
| Width | 20.3mm |
| Mount Type | PCB |
| Series | THM 6 |
| Maximum Operating Temperature | 90°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 4700000h |
| Number of outputs | 1 |
| Maximum Output Power | 6W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 1.8A |
| Isolation Voltage | 5kV ac |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Wide 2 | 1 input voltage |
Key Features
- High efficiency up to 83% increases energy savings and reduces heat.
- Wide input voltage range from 18V to 36V DC suitable for varied power sources.
- Certified for medical use with IEC/EN/ES 60601-1 3rd edition compliance.
- Features 5000 V AC reinforced isolation enhancing safety and signal integrity.
- Low leakage current less than 2 μA suitable for sensitive equipment.
- Operates reliably in a temperature range from -40°C up to 90°C.
- Compact DIP-24 plastic package for convenient PCB mounting.
- Designed and produced under ISO 13485 quality management standards.
Product Description
TRACOPOWER THM 6-2410 is a high-quality 6 Watt DC/DC Converter designed for reliable power conversion on printed circuit boards. It provides a fixed output voltage of 3.3V DC at an output current of 1.8A, with a wide input voltage range from 18V to 36V DC, making it suitable for diverse power supply environments.
This converter features a DIP-24 plastic package that supports easy PCB mounting and a compact footprint with dimensions of 31.8 mm length, 20.3 mm width, and 10.2 mm depth. Its reinforced isolation rating of 5000 V AC RMS ensures safe high-voltage separation suitable for sensitive circuit applications.
Certified to IEC/EN/ES 60601-1 3rd edition for 2 x MOPP, the THM 6-2410 meets stringent medical safety standards and includes a comprehensive ISO 14971 risk management file. It is constructed with high-grade components under the ISO 13485 quality management system and is engineered for an extended operating temperature range from -40°C to 90°C, enabling operation in harsh environments.
The unit achieves high efficiency of approximately 83%, reducing energy loss and heat, featuring a low leakage current below 2 microamps. It includes input filtering that meets EN55022 class A standards and maintains performance at altitudes up to 5000 meters.
High conversion efficiency enhances system performance and reliability. Wide input voltage tolerance accommodates variable power sources. Reinforced isolation guarantees safe operation in critical applications. Robust certifications confirm suitability for medical and industrial uses.
Compact form factor enables integration in space-constrained designs. Low leakage current reduces risk in sensitive electronic systems. Extended temperature range supports demanding environmental conditions. ISO certified manufacturing ensures product quality and consistency.
Ideal for medical devices, transportation control systems, and IGBT driver circuits.
TRACOPOWER products are trusted in industrial, medical, and commercial applications where reliability and safety are paramount. Explore EnvMart's wide selection of electrical components and converters for your engineering needs.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 6 Watts.
It has a wide input voltage range from 18V to 36V DC.
The output voltage is 3.3V DC with an output current of 1.8A.
The dimensions of the DIP-24 package are 31.8 mm in length, 20.3 mm in width, and 10.2 mm in depth.
This model achieves an efficiency of approximately 83%.
It features a reinforced isolation voltage of 5000 V AC RMS.
It operates reliably in a temperature range from -40°C to 90°C.
It is certified for medical use with IEC/EN/ES 60601-1 3rd edition compliance.
The maximum input voltage is 36V DC.
This unit supports PCB mounting with a DIP-24 plastic package.
The leakage current is less than 2 microamps, making it suitable for sensitive equipment.
The country of origin for this model is India.
