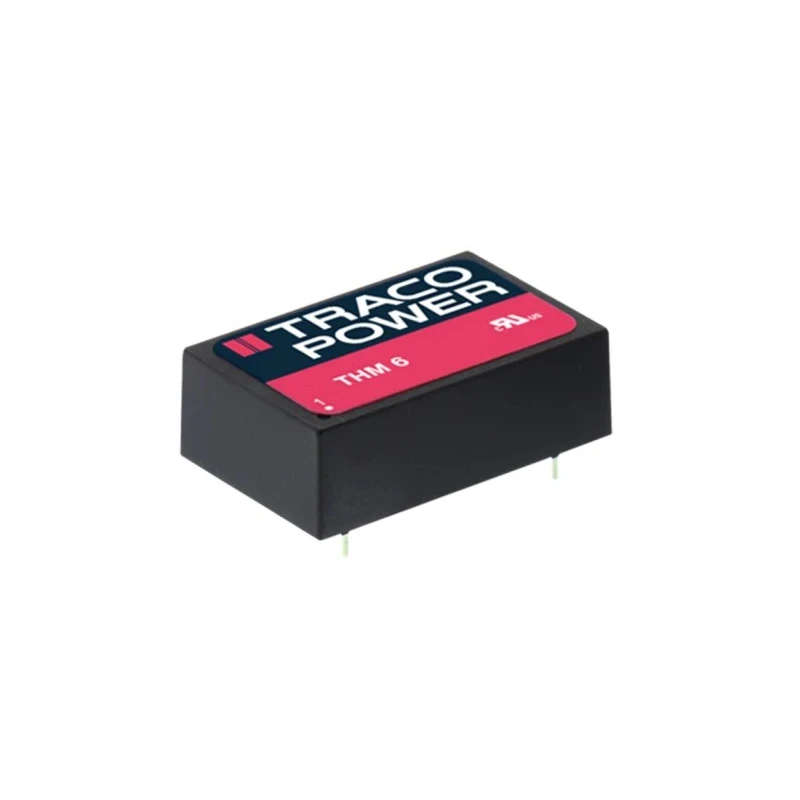

TRACOPOWER THM 6 Series DC/DC Converter, 5V DC, 1.2 A Output Current, 9-18V DC Input, PCB Mount, DIP Package THM 6-1211
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THM 6 DC/DC Converter, 5V dc/ 1 |
| Brand | TRACOPOWER |
| Efficiency | 86% |
| Length | 31.8mm |
| Model | THM 6-1211 |
| Depth | 10.2mm |
| Gross Weight | 14g |
| Width | 20.3mm |
| Mount Type | PCB |
| Series | THM 6 |
| Maximum Operating Temperature | 90°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 4700000h |
| Number of outputs | 1 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Input Voltage | 18V dc |
| Standards/Approvals | REACH, IEC, ANSI, RoHS, ISO, EN, UL |
| Minimum Input Voltage | 9V |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 1.2A |
| Isolation Voltage | 5kV ac |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Compact DIP package ensures easy PCB mounting.
- Wide operating temperature from -40°C to 90°C supports harsh environments.
- High efficiency of 86% maximizes energy use.
- Reinforced isolation voltage of 5000 VAC for electrical safety.
- Low ripple noise of 50 mV peak-to-peak for stable output.
- Compliant with IEC 60601 and other safety standards for medical applications.
- Built-in short circuit protection ensures operational reliability.
- Designed specifically for medical and industrial power supply needs.
Product Description
TRACOPOWER THM 6-1211 is a high-quality DC/DC converter designed for medical and industrial applications requiring reliable power supply with strict safety and performance standards.
Operating from an input voltage range of 9 to 18V DC, it delivers a regulated 5V DC output at 1.2 A through a PCB mountable compact DIP-24 package. The converter features an efficiency of 86%, which enhances energy utilization while minimizing heat generation, suitable for compact systems.
It supports a broad temperature range from -40°C to 90°C, making it suitable for use in both extreme cold and heat conditions encountered in industrial environments. Reinforced galvanic isolation rated at 5000 VAC improves operator and system safety, critical in medical device applications and safety-sensitive environments.
Additional built-in protections include low leakage current below 200 μA and short circuit protection with auto-recovery to maintain stable operation during fault conditions. Designed to comply with IEC 60601, REACH, RoHS, UL, ISO, ANSI, and EN standards, ensuring reliability and regulatory compliance.
Compact DIP-24 package for PCB mounting. Wide input voltage: 9 to 18 V DC. Output voltage: 5 V DC at 1.2 A current. Operating temperature: -40°C to +90°C. Reinforced isolation voltage of 5000 VAC. Built-in short circuit protection.
Energy efficient with 86% conversion efficiency. Low ripple and noise of 50 mV peak-to-peak. High MTBF of 4.7 million hours for reliability. Compliant with medical and industrial standards.
This DC-DC Converter is ideal for powering medical devices requiring high isolation and safety, industrial control systems, transportation electronics, automation technologies, and precision measurement equipment.
Explore more power supply and converter solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with an input voltage range of 9 to 18V DC.
It delivers a regulated output of 5V DC at a maximum current of 1.2 A.
The converter has an efficiency rating of 86%, maximizing energy use.
The THM 6-1211 supports an operating temperature range from -40°C to 90°C.
This unit has dimensions of 31.8mm in length, 20.3mm in width, and 10.2mm in depth.
It is designed for PCB mounting with a compact DIP-24 package.
The THM 6-1211 features a reinforced isolation voltage rated at 5000 VAC.
It is compliant with IEC 60601, REACH, RoHS, UL, ISO, ANSI, and EN standards.
The model has a low ripple and noise specification of 50 mV peak-to-peak.
This unit includes built-in short circuit protection with auto-recovery and low leakage current below 200 μA.
The THM 6-1211 has a high MTBF of 4.7 million hours, indicating reliability.
It is ideal for powering medical devices, industrial control systems, and precision measurement equipment.
