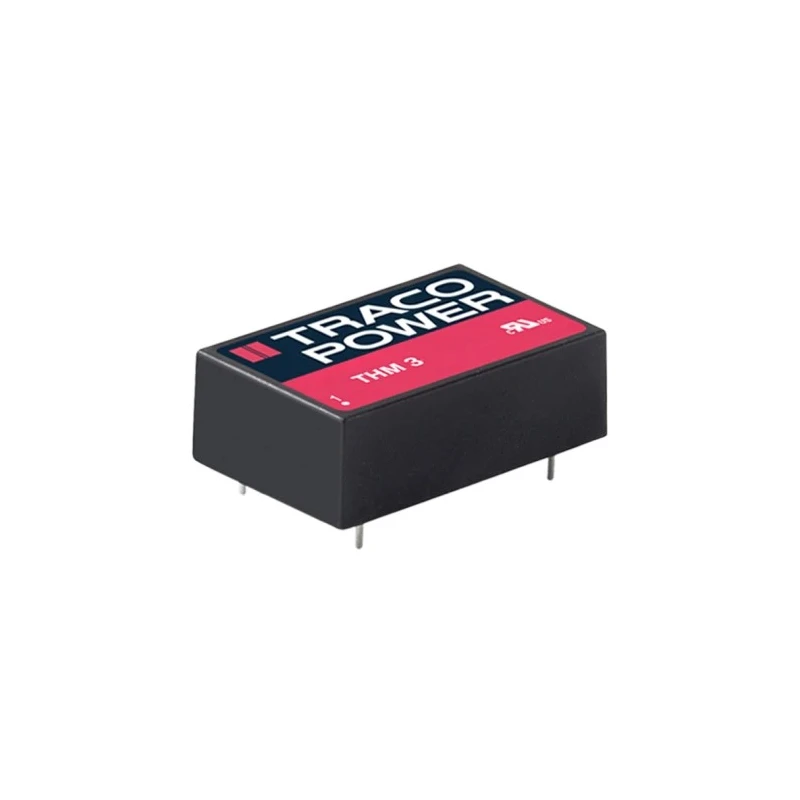

TRACOPOWER 3 Watt Medical Grade DC/DC Converter, 14V Output, 100mA, 36V DC Input, Through Hole DIP Package THM 3-2423
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THM 3 DC/DC Converter, 14V/ 100 mA, 36V |
| Brand | TRACOPOWER |
| Efficiency | 86% |
| Length | 31.8mm |
| Model | THM 3-2423 |
| Depth | 10.2mm |
| Gross Weight | 14g |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | THM 3 |
| Maximum Operating Temperature | 90°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 6400000h |
| Number of outputs | 2 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | ANSI, EN, IEC, ISO, REACH, RoHS, UL |
| Minimum Input Voltage | 9V |
| Output Voltage 1 | 14V |
| Output Current 1 | 100mA |
| Isolation Voltage | 5kV ac |
| Input Ratio | 4:1 |
| Output Voltage 2 | -14V |
| Wide 2 | 1 input voltage |
| Input Ratio4 | 1 |
Key Features
- Dual outputs with 14V and -14V voltages enhance application flexibility.
- High isolation voltage rated at 5kV AC RMS ensures safety.
- Operating temperature from -40°C to 90°C allows use in diverse environments.
- Low ripple and noise of 50mV peak-to-peak for stable output.
- Mount type is through-hole DIP package for easy PCB assembly.
- Efficiency up to 86% ensures energy saving during operation.
- MTBF of 6,400,000 hours guarantees long operational life.
- Compliance with ANSI, EN, IEC, ISO, REACH, RoHS, and UL standards.
Product Description
TRACOPOWER THM 3-2423 is a 3 Watt DC/DC converter designed for medical and industrial applications requiring high reliability and reinforced isolation. It features a through-hole DIP package for easy integration in printed circuit boards and operates over a wide input voltage range of 9V to 36V DC with dual outputs of 14V and -14V at 100mA.
The unit provides reinforced isolation rated at 5kV AC RMS, meeting medical safety standards IEC/EN/ES 60601-1 3rd edition for 2xMOPP, ensuring patient protection. It contains a risk management file in accordance with ISO 14971 and adheres to ISO 13485 quality management system standards.
Its efficiency reaches up to 86%, minimizing energy lost as heat, and it performs reliably in ambient temperatures from -40°C to +90°C and altitudes up to 5000 meters. Ripple and noise are kept low at 50mV peak-to-peak, supporting sensitive electronics.
The compact DIP package measures 31.8mm length, 20.3mm width, and 10.2mm depth, weighing 14 grams, and is suitable for through-hole mounting. The converter’s durability is reflected in its long mean time between failures (MTBF) of 6.4 million hours.
Applications include medical devices, transportation systems, control and measurement equipment, and IGBT driver circuits requiring isolated power conversion. The product meets multiple industry standards including ANSI, EN, IEC, ISO, REACH, RoHS, and UL for safety and environmental compliance.
Wide 2:1 input voltage supports versatile DC sources. Reinforced isolation with 5kV AC RMS rated voltage. Compliant with medical safety standards IEC/EN/ES 60601-1 3rd edition. Low leakage current less than 2 μA enhances safety.
High efficiency reduces heat generation and power consumption. Robust operation over wide temperature range and altitudes. Compact DIP package for easy PCB assembly. Suitable for critical industrial and medical applications.
Explore the extensive range of DC-DC Converters on EnvMart to find solutions matching your industrial and medical power conversion needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual outputs of 14V and -14V at a current of 100mA.
It operates over a wide input voltage range of 9V to 36V DC.
The efficiency of this unit reaches up to 86%, minimizing energy loss during operation.
The compact DIP package measures 31.8mm in length, 20.3mm in width, and 10.2mm in depth.
It features a reinforced isolation voltage rated at 5kV AC RMS, ensuring safety for medical applications.
This model operates effectively in ambient temperatures from -40°C to +90°C.
The ripple and noise are kept low at 50mV peak-to-peak, supporting stable output.
It complies with multiple industry standards including ANSI, EN, IEC, ISO, REACH, RoHS, and UL.
The MTBF is rated at 6,400,000 hours, indicating long operational life.
It is designed for through-hole mounting, facilitating easy PCB assembly.
This model is suitable for medical devices, transportation systems, control and measurement equipment, and IGBT driver circuits.
The unit weighs 14 grams, making it lightweight for various applications.
