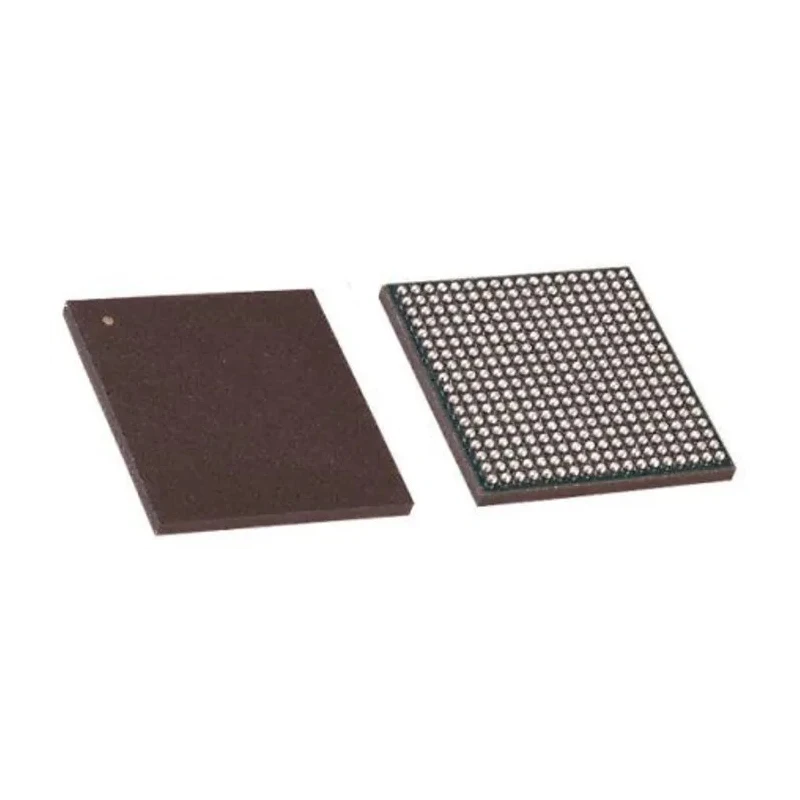

Microchip SAMA5D3 ARM Cortex-A5 Microcontroller ATSAMA5D35A-CU, 32-bit, 536 MHz, 160kB FLASH, 324-Pin LFBGA
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Microchip |
| Height | 1.1mm |
| Length | 15.05mm |
| Model | ATSAMA5D35A-CU |
| Width | 15.05mm |
| Mount Type | Surface |
| Series | SAMA5D3 |
| Maximum Operating Temperature | 85°C |
| Package Type | LFBGA |
| Minimum Operating Temperature | -40°C |
| Ram size | 128kB |
| Interface Type | SPI, CAN, UART |
| Pin Count | 324 |
| Maximum Supply Voltage | 1.08V |
| Minimum Supply Voltage | 1.32V |
| Device Core | ARM Cortex A5 |
| Program Memory Size | 160kB |
| Maximum Clock Frequency | 536MHz |
| Number of Programmable I/Os | 160 |
| Number of Timers | 2 |
| Instruction Set Architecture | ARM V7-A |
| ADCs | 12 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates at 536 MHz for high-performance computing.
- Features 32-bit ARM Cortex-A5 architecture for versatile applications.
- Equipped with 160 kB FLASH program memory and 128 kB RAM.
- Supports SPI, CAN, and UART interfaces for flexible connectivity.
- 324-pin LFBGA package enables dense integration and surface mounting.
- Offers 160 programmable I/Os for extensive peripheral control.
- Tolerates wide operating temperatures from -40°C to 85°C.
- Includes 12 ADC channels at 12-bit resolution for precise data acquisition.
Product Description
Microchip ATSAMA5D35A-CU is a high-performance 32-bit ARM Cortex-A5 SAMA5D3 microcontroller designed for advanced industrial and embedded applications. Operating at a maximum clock frequency of 536 MHz, this device delivers robust compute performance while maintaining low power efficiency. Its rich set of features makes it an ideal solution for a variety of industrial, laboratory, and commercial designs.
With a 160 kB FLASH program memory and 128 kB RAM, the ATSAMA5D35A-CU provides substantial storage and runtime capabilities for complex embedded systems. The microcontroller comes in a compact 324-pin LFBGA surface mount package, measuring 15.05 x 15.05 x 1.1 mm, making it suitable for space-constrained applications while supporting high pin counts and advanced peripheral connections.
The device core is based on ARM Cortex-A5 with a 32-bit data bus width, upholding industry standards like ARM V7-A instruction architecture. It offers extensive interface options - including SPI, CAN, and UART - allowing flexible communication and system integration. The microcontroller features 160 programmable input/outputs, 2 integrated timers, and 12-channel 12-bit analog-to-digital converters, enabling precise control and monitoring in industrial setups.
ATSAMA5D35A-CU is engineered for rugged environments, supporting operating temperatures from -40°C to 85°C, and is supplied in a tray for efficient automated assembly. Its minimum and maximum supply voltages of 1.32 V and 1.08 V, respectively, ensure stable operation in varied power conditions. The FLASH program memory assures reliable long-term storage and program retention, vital for industrial and scientific tasks.
Operates at 536 MHz for high-performance computing. ARM Cortex-A5 32-bit architecture supports versatile applications. Offers SPI, CAN, UART interfaces and 160 programmable I/Os. Integrated 160 kB FLASH and 128 kB RAM for efficient processing.
Surface mount LFBGA package, 324 pins for dense integration. Wide operating temperature range suitable for demanding environments. 12-channel, 12-bit ADC for precision analog measurements. Industrial and laboratory use cases include embedded systems, automation, control panels, and IoT gateways.
The Microchip ATSAMA5D35A-CU SAMA5D3 microcontroller is ideally suited for demanding industrial automation, laboratory instrumentation, smart devices, and high-reliability embedded products. Explore more ARM Microcontrollers and industrial solutions in the Microchip and Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 536 MHz, providing high-performance computing capabilities.
It is based on the ARM Cortex-A5 architecture, which is a 32-bit architecture designed for versatile applications.
This model supports SPI, CAN, and UART interfaces, allowing for flexible connectivity options.
The microcontroller is equipped with 160 kB of FLASH program memory for efficient processing and storage.
It operates within a wide temperature range from -40°C to 85°C, making it suitable for demanding environments.
This microcontroller features 160 programmable input/outputs for extensive peripheral control.
The package dimensions are 15.05 mm x 15.05 mm x 1.1 mm, allowing for dense integration in space-constrained applications.
It includes 12 ADC channels, each with 12-bit resolution, for precise data acquisition.
The microcontroller has a RAM size of 128 kB, providing substantial runtime capabilities for complex embedded systems.
This microcontroller comes with a pin count of 324, facilitating high pin counts and advanced peripheral connections.
It supports surface mounting, which is suitable for compact designs and high-density applications.
The minimum supply voltage is 1.32 V and the maximum supply voltage is 1.08 V, ensuring stable operation under varied power conditions.
