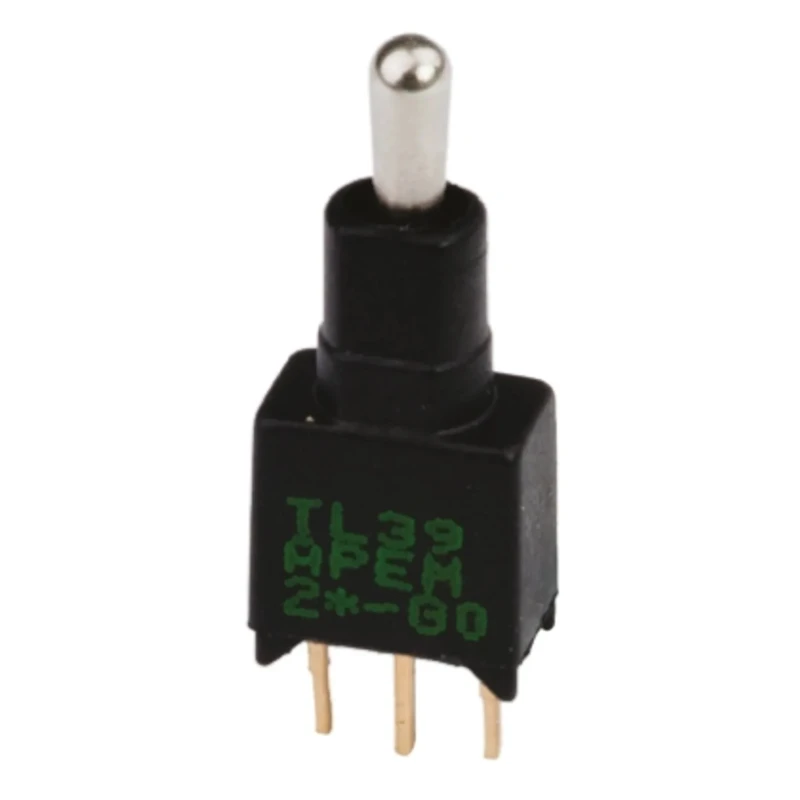

APEM PCB Mount Toggle Switch SPST On-On Through Hole TL32P0050, 20 V DC/AC, Brass Actuator
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 22.8mm |
| Length | 9.1mm |
| Model | TL32P0050 |
| Width | 8.1mm |
| Mount Type | PCB |
| Series | TL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | On-(On) |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Number of Operations | 60000 (2 pos), 30000 (3 pos) |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 5.3mm |
| Contact DC Voltage | 20V dc |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 20V ac |
| Actuator Material | Brass |
| Minimum load current | 10mA at 50mV - 10μA at 5Vdc |
| APEM Toggle Switch, PCB Mount, (On)-On, DPST, Through Hole TerminalBrand | APEM |
| RS PRO Toggle Switch, PCB Mount, On-(On), SPDT, Through Hole TerminalBrand | RS PRO |
Key Features
- PCB mount toggle switch designed for On-On SPST operation.
- Handles both 20 V DC and 20 V AC voltage for versatile circuit applications.
- Actuator is made from brass with a length of 5.3 mm.
- Through hole terminals ensure easy and robust mounting on standard PCBs.
- Supports up to 400 mA contact current for a wide range of control needs.
- Totally sealed and washable, suitable for immersion cleaning and wave soldering at up to 260°C for 5 seconds.
- Non-illuminated design with an operating temperature range from -30°C to 85°C.
- Minimum load current of 10 mA at 50 mV and 10 μA at 5 V DC ensures precise operation.
Product Description
APEM TL32P0050 PCB Mount Toggle Switch is engineered for precise, reliable switching in industrial automation, laboratory instrumentation, and commercial electronic devices. This On-On SPST switch supports both 20 V DC and 20 V AC circuit configurations, allowing for broad compatibility with various control and signal applications.
Featuring a totally sealed, washable design, this toggle switch withstands immersion cleaning and wave soldering temperatures up to 260°C for 5 seconds. The brass actuator, measuring 5.3 mm in length, ensures tactile durability, while gold-plated brass terminals provide optimal conductivity and corrosion resistance.
PCB mount toggle switch designed for On-On SPST operation. Handles both 20 V DC and 20 V AC voltage for versatile circuit applications. Actuator is made from brass with a length of 5.3 mm. Through hole terminals ensure easy and robust mounting on standard PCBs.
Supports up to 400 mA contact current for a wide range of control needs. Totally sealed and washable, suitable for immersion cleaning and wave soldering at up to 260°C for 5 seconds. Non-illuminated design with an operating temperature range from -30°C to 85°C.
Minimum load current of 10 mA at 50 mV and 10 μA at 5 V DC ensures precise operation. Durable construction for up to 60,000 operations for 2-position switches. Compact dimensions: 22.8 mm height, 9.1 mm length, and 8.1 mm width.

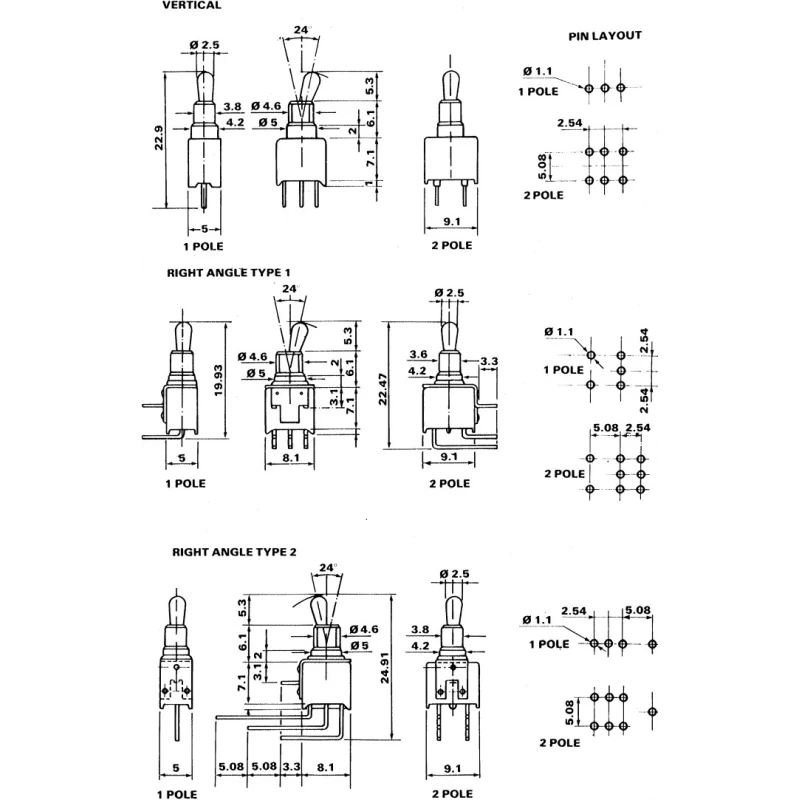

Designed for demanding environments, this switch is wave solderable and suited for both vertical and two types of right angle terminations. The non-illuminated mechanism makes it ideal for compact, high-density PCB layouts.
Environmental compliance is ensured with RoHS approval. Suitable for industrial automation, lab test rigs, manufacturing control panels, and commercial device prototyping.
Packaged with high reliability in mind, the TL32P0050 series allows for up to 60,000 operations (2-position switches) and a minimum load current specification to guarantee flexibility in sensitive electronic designs.
Explore more switch products from APEM and browse the Toggle Switch category on EnvMart for compatible hardware and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an SPST (Single Pole, Single Throw) contact configuration, allowing for On-On operation.
It supports a maximum contact current of 400 mA, suitable for a wide range of control applications.
The operating temperature range is from -30°C to 85°C, making it suitable for various environments.
The actuator is made from brass, and the terminals are gold-plated brass, providing optimal conductivity and corrosion resistance.
The dimensions are 22.8 mm in height, 9.1 mm in length, and 8.1 mm in width.
Yes, it is designed to be totally sealed and washable, suitable for immersion cleaning and wave soldering at temperatures up to 260°C for 5 seconds.
The minimum load current is 10 mA at 50 mV and 10 μA at 5 V DC, ensuring precise operation in sensitive electronic designs.
It can endure up to 60,000 operations for 2-position switches, ensuring reliability for long-term use.
This model utilizes through hole mounting, ensuring easy and robust installation on standard PCBs.
It complies with RoHS standards, ensuring environmental compliance in its construction.
It can handle both 20 V DC and 20 V AC, making it versatile for various circuit applications.
It is designed for use in industrial automation, laboratory instrumentation, and commercial electronic devices.
