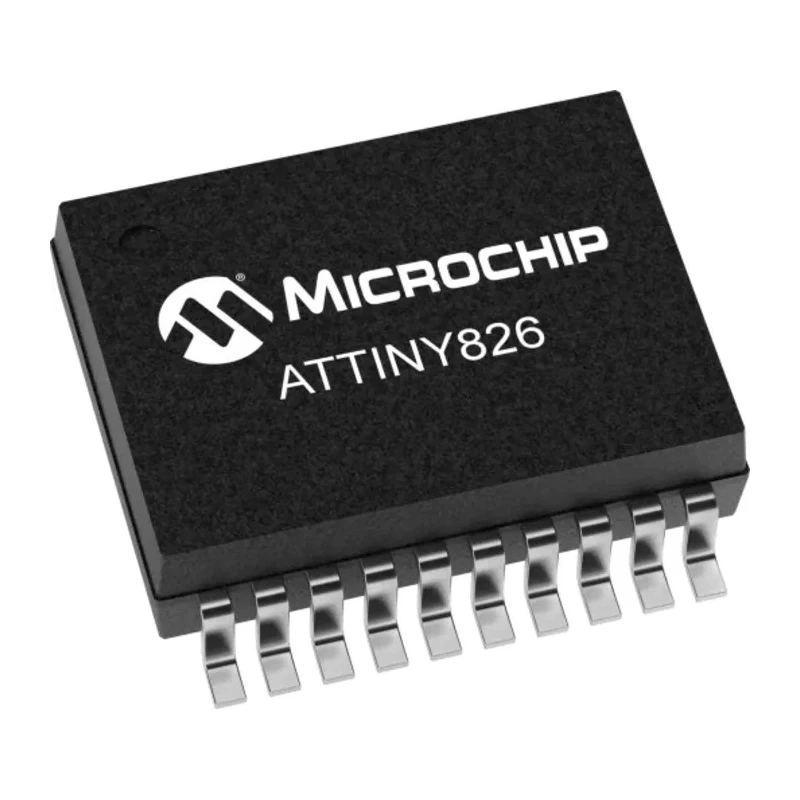

Microchip tinyAVR 2 Microcontroller 12-bit AVR, 20 MHz, 8kB FLASH, 20-Pin SSOP ATTINY826-XU
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | ATTINY826-XU |
| Width | 5.3mm |
| Mount Type | Surface |
| Series | tinyAVR 2 |
| Package Type | SSOP |
| Standards/Approvals | REACH, RoHS3 |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | AVR |
| Program Memory Size | 8kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 18 |
| Analogue Comparators | 1 |
| Number of Timers | 3 |
| Instruction Set Architecture | AVR |
| ADCs | 15 x 12 Bit |
| Program Memory Type | FLASH |
| Serial communication interfaces | 2x USART, SPI, I2C |
Key Features
- 12-bit AVR core enables precise control and fast data processing.
- Operates at up to 20 MHz for high-performance embedded tasks.
- 8kB Flash memory for flexible program storage and rapid access.
- 20-Pin SSOP package supports compact surface mount designs.
- 18 programmable I/O pins allow for extensive connectivity options.
- Includes hardware multiplier, 1 KB SRAM, and 128B EEPROM.
- Features Core Independent Peripherals and low power operation.
- Configurable Custom Logic (CCL) and 12-bit differential ADC with PGA.
Product Description
Microchip ATTINY826-XU tinyAVR 2 Microcontroller is a highly integrated embedded solution, designed for demanding industrial, commercial, and laboratory applications. This device features a powerful 12-bit AVR core capable of running at clock frequencies up to 20 MHz, providing excellent computational capabilities for a wide range of automation and control tasks.
With 8kB of Flash program memory and a 20-Pin SSOP (Small Shrink Outline Package), this microcontroller is optimized for compact, surface-mount manufacturing and efficient PCB utilization. The ATTINY826-XU comes equipped with 1 KB SRAM and 128 bytes of EEPROM, making it ideal for applications requiring both temporary and persistent storage.
12-bit AVR core allows for fast response times and precise digital control, ideal for embedded system integrators. Operates up to 20 MHz, suitable for high-speed industrial and laboratory control systems. Program memory type is FLASH, supporting rapid firmware updates and reliable system operation.
18 programmable I/O pins for versatile interface options, supporting sensors, actuators, and communication modules. Integrated hardware multiplier boosts performance in signal processing and mathematical computation. Peripheral features include configurable custom logic (CCL), 12-bit differential ADC with programmable gain amplifier (PGA), and advanced event system with six channels.
Serial communication is facilitated via 2x USART, SPI, and I2C, ensuring easy integration with industrial protocols and networks. RoHS3 and REACH compliance assures suitability in regulated environments.
The ATTINY826-XU’s surface-mount SSOP package supports automated assembly lines, promoting scalable industrial production. Its rich peripheral set - including three timers, analogue comparator with internal DAC, and advanced event system - makes it an ideal microcontroller for automation, process control, instrumentation, and laboratory grade measuring equipment.
Applications include industrial and commercial embedded systems, HVAC controls, instrumentation, laboratory data acquisition, robotics, and Internet of Things (IoT) nodes. The microcontroller’s low-power operation further supports battery-powered and portable device requirements.
For more Microcontrollers and high-performance embedded solutions from Microchip, browse the Semiconductor section at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ATTINY826-XU microcontroller operates at a maximum clock frequency of 20 MHz, enabling high-performance processing for embedded tasks.
It features 8kB of FLASH program memory, allowing for flexible program storage and rapid access.
The ATTINY826-XU comes in a 20-Pin SSOP (Small Shrink Outline Package), optimized for compact surface mount designs.
This microcontroller requires a supply voltage between 1.8V and 5.5V for proper operation.
It includes 18 programmable I/O pins, providing extensive connectivity options for various applications.
The microcontroller supports 2x USART, SPI, and I2C for serial communication, facilitating easy integration with other devices.
The ATTINY826-XU is based on the AVR architecture, which is known for its efficiency in embedded applications.
It complies with RoHS3 and REACH standards, ensuring suitability for regulated environments.
This microcontroller features three integrated timers, which are useful for timing applications and event management.
The ATTINY826-XU includes a 12-bit differential ADC with 15 channels, providing high-resolution analog input capabilities.
The width of this model is 5.3 mm, making it suitable for compact electronic designs.
This microcontroller is ideal for applications in industrial and commercial embedded systems, HVAC controls, instrumentation, and IoT nodes.
