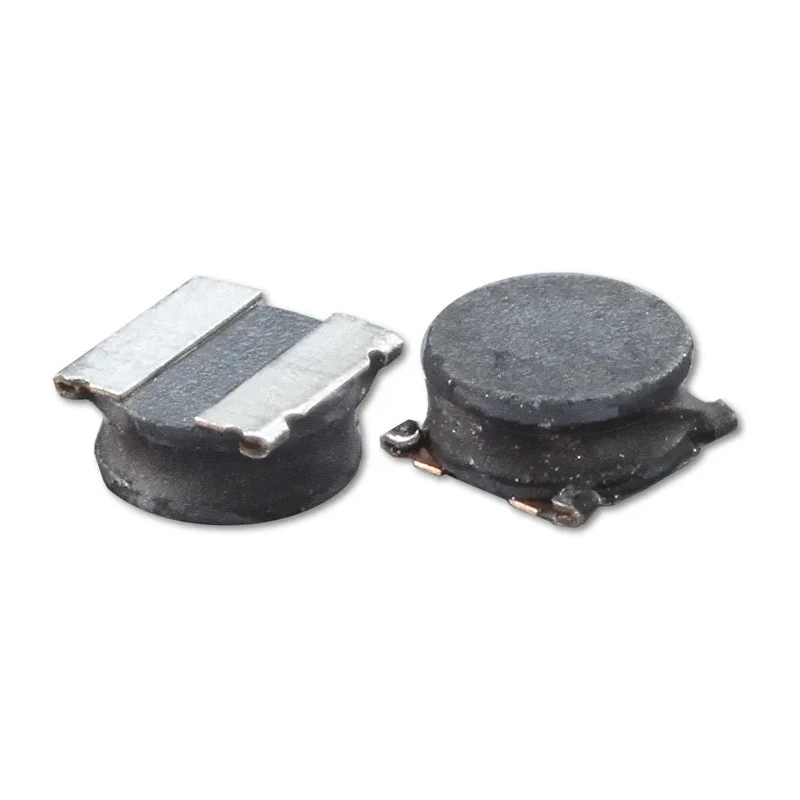

Abracon Shielded Surface Mount Inductor Ferrite Core 10μH ±20% 770mA Flat Wire ASPI-0315FS-100M-T2
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.5mm |
| Brand | Abracon |
| Height | 1.5mm |
| Length | 3mm |
| Model | ASPI-0315FS-100M-T2 |
| Depth | 1.5mm |
| Packaging | Tape & Reel |
| Series | ASPI-0315FS |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 770mA |
| Pin Count | 4 |
| Maximum DC Resistance | 325mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 41MHz |
| Inductor Construction | Flat Wire Winding |
| Small size and low profile | 1.5mm |
Key Features
- Inductance rated at 10μH with ±20% tolerance.
- Shielded construction using a ferrite core for enhanced performance.
- Maximum DC current of 770mA supports high power density.
- Small footprint with 3mm length and 1.5mm height optimizes PCB space.
- Flat wire winding ensures low profile and high mechanical reliability.
- Maximum DC resistance of 325mΩ for efficient operation.
- RoHS compliant for environmentally safe design.
- Moulded body and surface mount termination for automated assembly.
Product Description
Abracon ASPI-0315FS-100M-T2 shielded surface mount inductor is designed for advanced electronic applications requiring reliable power management and compact size. This model features a robust ferrite core and flat wire winding, delivering an inductance value of 10μH with a tolerance of ±20%. The maximum DC current rating is 770mA, making it suitable for circuits with moderate current requirements.
The device is magnetically shielded, enhancing EMI performance in demanding environments. Its compact dimensions, with a length of 3mm, height and depth of 1.5mm each, and diameter of 2.5mm, make it ideal for mobile devices, digital cameras, MP3 players, and other portable communication equipment, where space and power efficiency are crucial.
Featuring a low DC resistance of 325mΩ, the ASPI-0315FS-100M-T2 ensures minimized energy losses and thermal buildup. The inductor is manufactured in compliance with RoHS standards, and its moulded construction supports high resistance to mechanical stress during installation and ongoing service.
The surface mount package style and tape & reel packaging facilitate automated assembly processes, promoting production efficiency and reliability. Operating temperature ranges from -40°C to 125°C, accommodating applications in diverse climates and demanding industrial environments.
Inductance rated at 10μH with high accuracy for regulated power lines. Flat wire winding design enhances current capacity and thermal management. Fully shielded construction mitigates electromagnetic interference. Ferrite core increases efficiency and maintains stable operation.
Low profile height and footprint optimize device layouts. Reliable performance across extended temperature ranges. RoHS compliant for safe, eco-friendly integration. Ideal for industrial, laboratory, and commercial electronics assemblies.
This surface mount inductor is widely used in industrial power supply circuits, consumer electronics, laboratory instrumentation, and portable communication products. For more options and similar components, explore Abracon’s inductors at EnvMart.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance of this model is rated at 10μH with a tolerance of ±20%.
This inductor has a maximum DC current rating of 770mA, suitable for circuits with moderate current requirements.
The dimensions of this model are 3mm in length, 1.5mm in height, and 1.5mm in depth, with a diameter of 2.5mm.
The maximum operating temperature for this model is 125°C.
Yes, this inductor is RoHS compliant, ensuring it meets environmental safety standards.
It features flat wire winding, which enhances current capacity and thermal management.
The maximum DC resistance is 325mΩ, which contributes to efficient operation.
This model is packaged in tape & reel format, facilitating automated assembly processes.
The maximum self-resonant frequency for this model is 41MHz.
This inductor is suitable for use in industrial power supply circuits, consumer electronics, laboratory instrumentation, and portable communication products.
The core material of this inductor is ferrite, which enhances its performance.
This model has a pin count of 4, allowing for surface mount termination.
