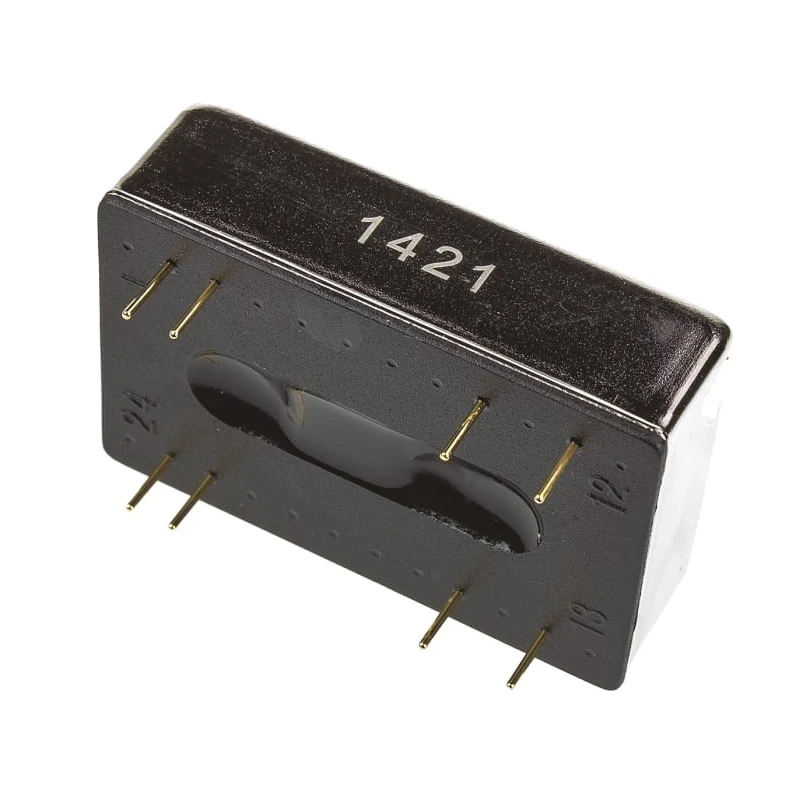

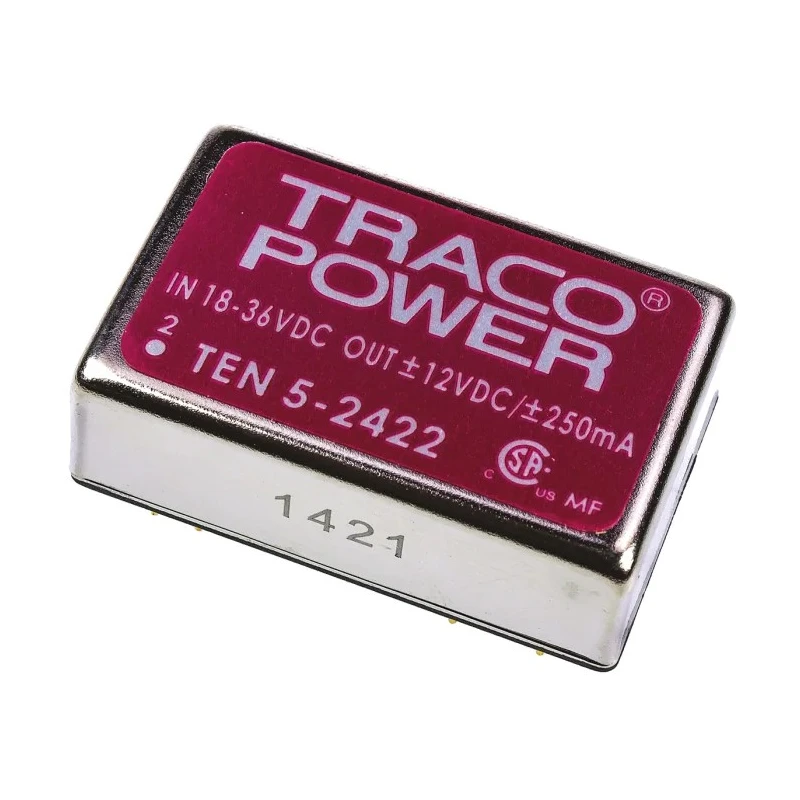

TRACOPOWER DC/DC Converter 12V, -12V 250mA 18 - 36V Input, 6W PCB Mount, 1.5kV Isolation, TEN 5-2422
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 5 DC/DC Converter, 12V, -12 V/ 250 |
| Brand | TRACOPOWER |
| Efficiency | 86% |
| Operating Temperature Range | -40°C to 85°C |
| Length | 32mm |
| Model | TEN 5-2422 |
| Depth | 10mm |
| Width | 20mm |
| Mount Type | PCB |
| Series | TEN 5 |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 700000h |
| Number of outputs | 2 |
| Maximum Output Power | 6W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 12, -12V |
| Output Current 1 | 250mA |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Wide input voltage range from 18V to 36V DC.
- Maximum output power of 6W for compact applications.
- PCB mount DIP package with 24 pins for easy installation.
- High isolation voltage of 1.5kV DC between input and output for safety.
- Operates efficiently across a temperature range of -40°C to 85°C.
- MTBF rated at 700,000 hours ensures long-term reliability.
- 86% efficiency for optimal performance and minimal heat generation.
- Short circuit protection for robust operation.
Product Description
TRACOPOWER TEN 5-2422 is a high-efficiency, isolated DC/DC converter designed for industrial applications requiring reliable dual voltage outputs.
Featuring a wide 2:1 input voltage range from 18V to 36V DC, the TEN 5-2422 is ideal for installations with varying supply conditions. The dual outputs, each capable of supplying 250mA, make it suitable for powering op-amp circuits, logic interfaces, sensor electronics, and other precision devices in control panels and instrumentation systems.
Wide input voltage range: 18V to 36V DC accommodates diverse power sources. Dual output voltages: 12V and -12V at 250mA each for flexible powering of devices. Maximum output power of 6W supports compact loads and portable equipment.
PCB mounting with DIP 24-pin package, simplifying integration and assembly. High input/output isolation voltage of 1.5kV DC enhances safety in sensitive electronics. Excellent efficiency (up to 86%) reduces thermal stress and improves lifespan.
Extended operating temperature range from -40°C to 85°C enables reliable use in harsh environments. MTBF of 700,000 hours signifies exceptional product reliability and longevity. Comprehensive protection including indefinite short circuit capability safeguards connected devices.
Designed to withstand the rigors of mobile, telecom, and industrial automation environments, the TEN 5-2422 is suitable for applications such as communications equipment, battery-powered mobile devices, and industrial panels. The converter's efficiency and isolation capability make it appropriate for laboratory instrumentation and sensitive embedded electronics.
Industrial use cases include manufacturing, process control, test and measurement platforms, and telecom infrastructure. Its advanced protection features enhance resilience during challenging power fluctuations and potential electrical faults.
Explore more DC-DC Converters and TRACOPOWER solutions in the EnvMart Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 18V to 36V DC.
This unit provides dual output voltages of 12V and -12V, each capable of supplying 250mA.
The maximum output power of the TEN 5-2422 is 6W.
It has an efficiency rating of 86%, which helps minimize heat generation during operation.
The isolation voltage between input and output for this converter is 1.5kV DC.
This model operates efficiently within a temperature range of -40°C to 85°C.
The mean time between failures (MTBF) for this unit is rated at 700,000 hours, indicating long-term reliability.
The TEN 5-2422 is designed for PCB mounting and comes in a DIP package with 24 pins for easy installation.
The dimensions of the TEN 5-2422 are 32mm in length, 20mm in width, and 10mm in depth.
This model is suitable for industrial applications such as communications equipment, sensor electronics, and control panels.
The TEN 5-2422 includes comprehensive protection features such as indefinite short circuit capability to safeguard connected devices.
The input ratio for the TEN 5-2422 is 2:1, allowing it to accommodate diverse power sources effectively.
