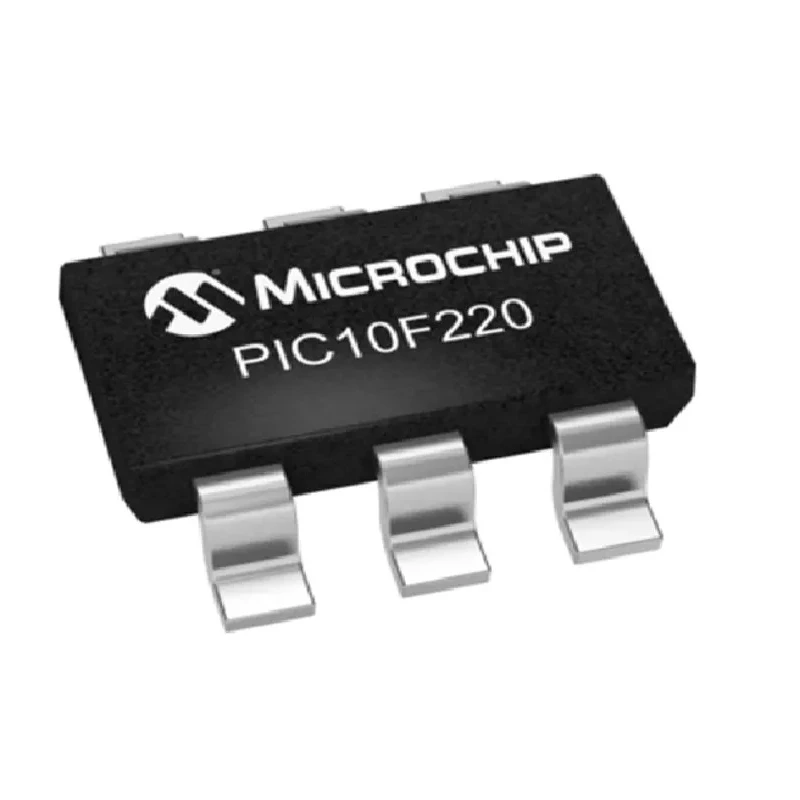

Microchip PIC10F220T-E/OT 8-Bit PIC Microcontroller, 8 MHz, 3072 bit FLASH, 6-Pin SOT-23

Microchip PIC10F220T-E/OT is a high-performance 8-bit PIC microcontroller designed for embedded and industrial applications. With a maximum clock frequency of 8 MHz, it offers reliable processing capability alongside a FLASH memory size of 3072 bits, making it suitable for compact designs demanding efficient program storage.

Operates at a maximum clock frequency of 8 MHz. Features 3072 bit FLASH program memory for storage and execution. Includes 16 bit RAM for efficient data handling. Supports a wide operating voltage range from 2V to 5.5V. Supplied in a compact 6-pin SOT-23 surface mount package.

Equipped with 3 programmable I/O pins for versatile interfacing. Integrated 3 x 8-bit ADCs for analog signal acquisition. Utilizes Power-on Reset and Device Reset Timer for reliable startup. Temperature operational range from -40°C to 125°C.

Includes power-saving sleep mode, watchdog timer, and code protection features.

This device employs a RISC architecture with only 33 single-word/single-cycle instructions, ensuring fast and efficient operations for industrial designs, automation systems, or laboratory instruments. It is optimized for low-cost, high-performance embedded solutions, further enhanced by a real-time clock/counter and programmable prescaler. The 12-bit wide instructions and easy-to-use instruction set reduce development time and offer code compression over comparable microcontrollers.

With features like INTOSC internal oscillator mode, power-saving sleep, and advanced reset protection, the PIC10F220T-E/OT is ideal for power-sensitive and space-constrained applications in manufacturing, electronics assembly, and commercial products.

Standard RoHS compliance ensures suitability for modern industrial and laboratory environments. Explore more Microchip Microcontrollers at EnvMart to discover a wide range of devices suited for diverse electronic and semiconductor projects.
