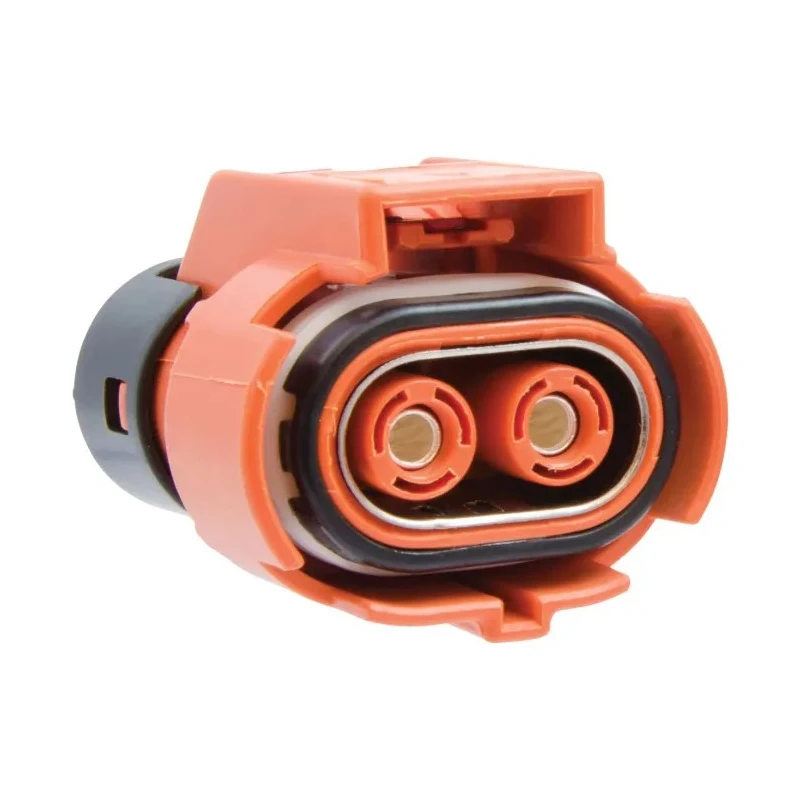

Amphenol Industrial ePower Lite RADSOK Plug with HVIL, Male, 70A, 800V, ELP2A04 / C10-738026-2AS4
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Current | 70A |
| Height | 36.8mm |
| Model | ELP2A04 / C10-738026-2AS4 |
| Depth | 57.8mm |
| IP Rating | IP67 |
| Connector Type | RADSOK Plug with HVIL |
| Width | 41.8mm |
| Mount Type | Cable |
| Housing Material | Plastic |
| Series | Epower Lite |
| Waterproof | IP67 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 3.6mm |
| Number of Rows | 1 |
| Wire size | 10mm² |
| Operating Voltage | 800V |
| For Use With | 2 Position ePower-Lite Receptacle with HVIL |
| Standards/Approvals | IEC 60529, UL 94 V-0 |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector Gender | Male |
| Better World Claim | Renewable Energy Solution |
| Key Type | Type A |
| Flammability | UL 94V-0 |
| Touch Proof | IEC 60529 |
Key Features
- RADSOK plug design ensures low resistance and enhanced contact reliability.
- Includes HVIL (High Voltage Interlock Loop) for enhanced safety in electric vehicle installations.
- Crimp termination and cable mount for easy field serviceability.
- Supports 2 contacts and 1 row layout; straight orientation enables compact installations.
- Plastic housing with IP67 protection ensures waterproof, touch-proof, and flame-retardant operation.
- Operates across a wide temperature range from -40°C to +125°C.
- Orange colour and Type A keying for intuitive use and safety compliance.
- Conforms to IEC 60529, UL 94 V-0 standards for global compatibility.
Product Description
Amphenol Industrial ELP2A04 / C10-738026-2AS4 is an advanced ePower Lite RADSOK plug with HVIL, designed for EV and hybrid vehicle power systems requiring high safety, high current, and reliability. Delivering up to 70A at 800V, this male plug is ideal for demanding automotive or industrial electrification applications.
Thanks to Amphenol's RADSOK technology, the connector delivers a combination of low contact resistance, minimal voltage drop, and a high number of mating cycles, ensuring consistent and durable connections in electrically intensive environments. The inclusion of an HVIL (High Voltage Interlock Loop) elevates safety, making it particularly suitable for modern electric vehicles and battery systems that require robust protection against accidental disconnection.
The plug is engineered with a straight orientation, crimp termination, and cable mount, offering ease of installation and flexibility across a wide range of EV powertrains. With a plastic housing certified to IP67, this connector is waterproof and touch-proof, enabling reliable operation even in harsh and demanding industrial conditions. The bright orange colour and Type A keying deliver immediate visual identification for high voltage automotive use, reducing risks during assembly and servicing.
Handles up to 70A and operates at 800V for powerful EV systems. Features 2 contacts in a single row, optimized for compact configurations. Broad temperature operation range: -40°C to 125°C, supporting applications in diverse climates.
Durable, plastic shell meets flame retardancy (UL 94V-0) and environmental standards (IEC 60529). Field-installable, crimped connection suitable for rapid assembly and high-reliability projects. Common uses include electric vehicle battery packs, power distribution modules, industrial automation, renewable energy systems, and heavy-duty hybrid machinery.
For use with 2-position ePower-Lite receptacle featuring HVIL. The compact, lightweight construction and plug-and-play readiness help reduce installation time and increase system safety in automotive, industrial, and renewable energy projects.
Explore more Amphenol EV Connectors and industrial high-voltage connectors in the Electronics & Electricals category on EnvMart for complete application solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 70A and operates at a voltage of 800V.
It is a RADSOK plug with HVIL (High Voltage Interlock Loop), designed for enhanced safety in electric vehicle applications.
The connector operates within a temperature range of -40°C to 125°C, making it suitable for diverse environmental conditions.
This plug has an IP67 rating, indicating it is waterproof and dust-tight, suitable for harsh environments.
The housing is made of plastic, which is certified for flame retardancy (UL 94V-0) and environmental protection (IEC 60529).
This plug features 2 contacts arranged in a single row layout, optimized for compact configurations.
It utilizes a crimp termination type, which allows for easy field serviceability and rapid assembly.
It is designed for use with a 2-position ePower-Lite receptacle that also features HVIL.
The dimensions of this model are 36.8mm in height, 41.8mm in width, and 57.8mm in depth.
This model features Type A keying, which aids in intuitive use and safety compliance during installation.
It conforms to IEC 60529 for environmental protection and UL 94 V-0 for flame retardancy.
This connector is suitable for electric vehicle battery packs, power distribution modules, industrial automation, and renewable energy systems.
