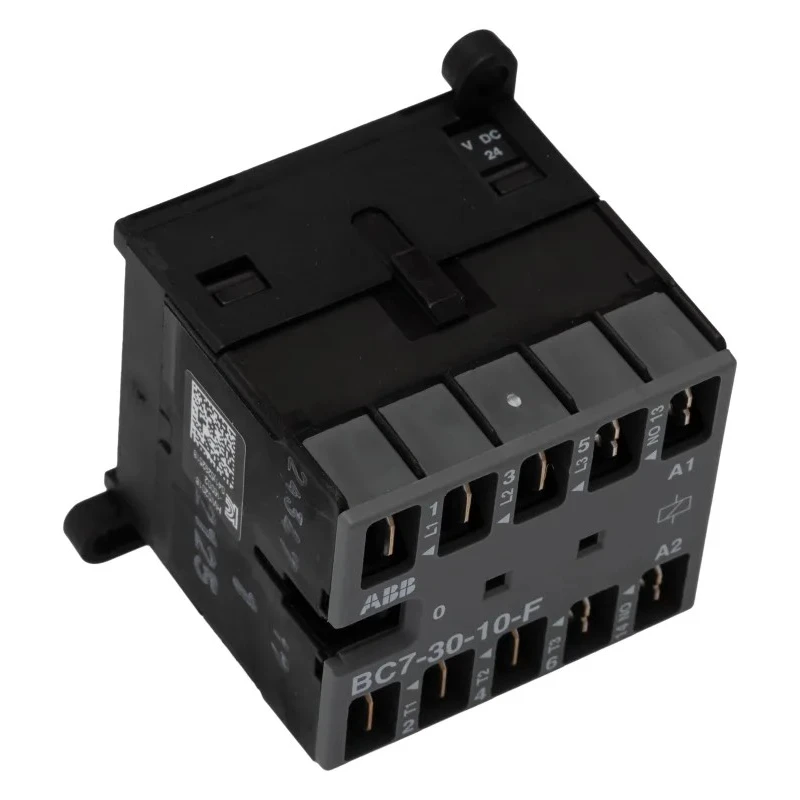

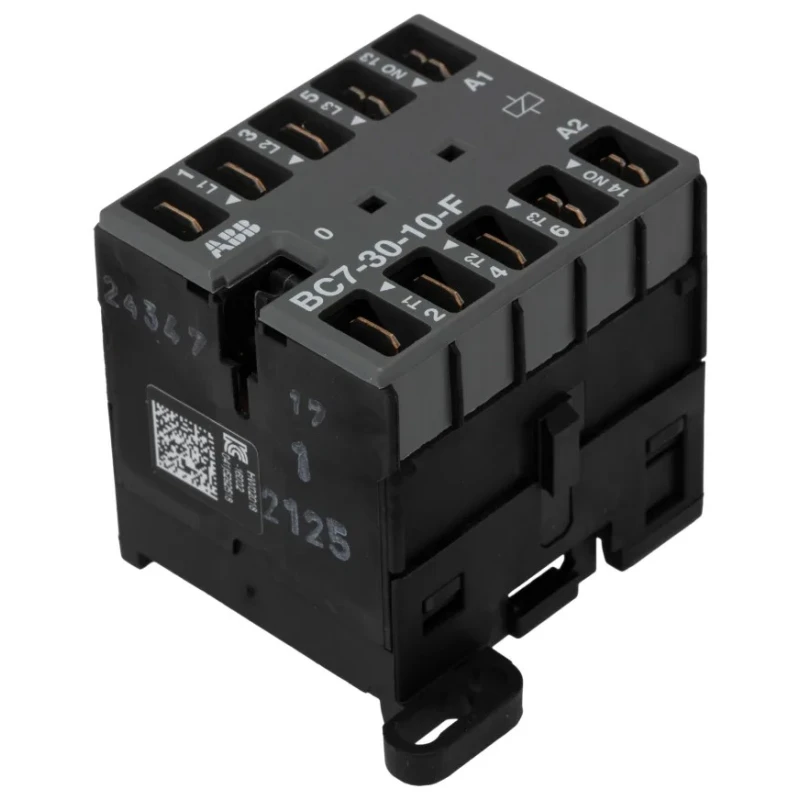

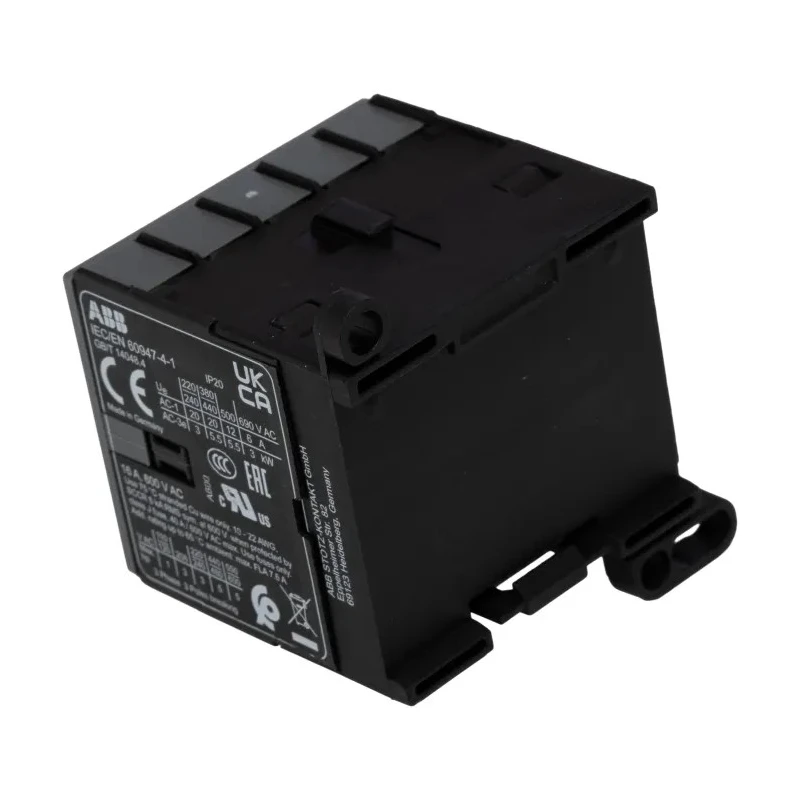

ABB B Series Contactor, 24V DC Coil, 3-Pole, 20A, 5.5 kW, 3NO, DIN Rail, GJL1313003R0101 BC7-30-10-F 24V DC
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | ABB |
| Function | Control Unit |
| Length | 46.7mm |
| Model | GJL1313003R0101 BC7-30-10-F 24V DC |
| Depth | 46.7mm |
| Width | 52.5mm |
| Mount Type | DIN Rail |
| Series | B |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Flat-Pin |
| Number of Poles | 3 |
| Standards/Approvals | IEC/EN 60947-4-1 |
| Contact Voltage | 690V |
| Coil Voltage | 24V |
| Normal State Configuration | 3 NO |
| Contact Current | 20A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 20A |
| Control Circuit Voltage Uc | 24V |
| Contactor Application | Control Unit |
| Pole and Throw Configuration | 3 |
Key Features
- Designed for reliable control of electrical circuits and loads in industrial environments.
- Compact body optimised for space-constrained installations and panels.
- Supports AC-1 and DC load handling, providing flexible application options.
- Integrated auxiliary contact (1NO) for additional signalling or control options.
- Rated for 20A operational current, suitable for motor and equipment switching.
- Operates safely up to a maximum ambient temperature of 55°C.
- Mounts on DIN rail, simplifying panel installation and maintenance.
- Flat-pin terminals ensure secure and easy wiring connections.
Product Description
ABB GJL1313003R0101 BC7-30-10-F 24V DC B Series Contactor is a robust DIN rail mount control unit engineered for demanding automation systems. It features a 24V DC coil, a 3-pole configuration, and a 3NO main contact design with an additional 1NO auxiliary contact, supporting reliable switching operations at up to 20A and 5.5 kW load capacity.
This compact contactor is ideal for use in confined electrical panels due to its slim form factor (52.5mm width, 46.7mm depth, 46.7mm length). Designed for quick integration, it simplifies wiring via flat-pin terminals and enables versatile control in single-phase and three-phase circuits. Typical applications include industrial automation, motor control circuits, and commercial equipment.
Designed for reliable control of electrical circuits and loads in industrial environments. Compact body optimised for space-constrained installations and panels. Supports AC-1 and DC load handling, providing flexible application options.
Integrated auxiliary contact (1NO) for additional signalling or control options. Rated for 20A operational current, suitable for motor and equipment switching. Operates safely up to a maximum ambient temperature of 55°C.
Mounts on DIN rail, simplifying panel installation and maintenance. Flat-pin terminals ensure secure and easy wiring connections. Certified to IEC/EN 60947-4-1 for industrial safety and reliability.
With its operational voltage up to 690V and compliance with the latest IEC standards, this ABB contactor assures long-term dependability in control units and drives. The auxiliary contact arrangement enables expanded control possibilities for automation, signaling, and alarm circuits. Typical industrial applications include manufacturing, commercial building automation, HVAC control, and process industries requiring dependable electrical switching.
Browse more ABB contactors in Power Contactors at EnvMart for reliable control gear solutions that meet your automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this model is 5.5 kW.
It operates safely up to a maximum ambient temperature of 55°C.
The coil voltage for this model is 24V DC.
This contactor has a 3-pole configuration.
The contact current rating is 20A.
It mounts on a DIN rail, simplifying installation and maintenance.
The dimensions are 46.7mm in length, 46.7mm in depth, and 52.5mm in width.
It features flat-pin terminals for secure and easy wiring connections.
It is certified to IEC/EN 60947-4-1 for industrial safety and reliability.
Yes, it includes one auxiliary contact configured as 1 NO.
Typical applications include industrial automation, motor control circuits, and commercial equipment.
The minimum operating temperature is -25°C.
