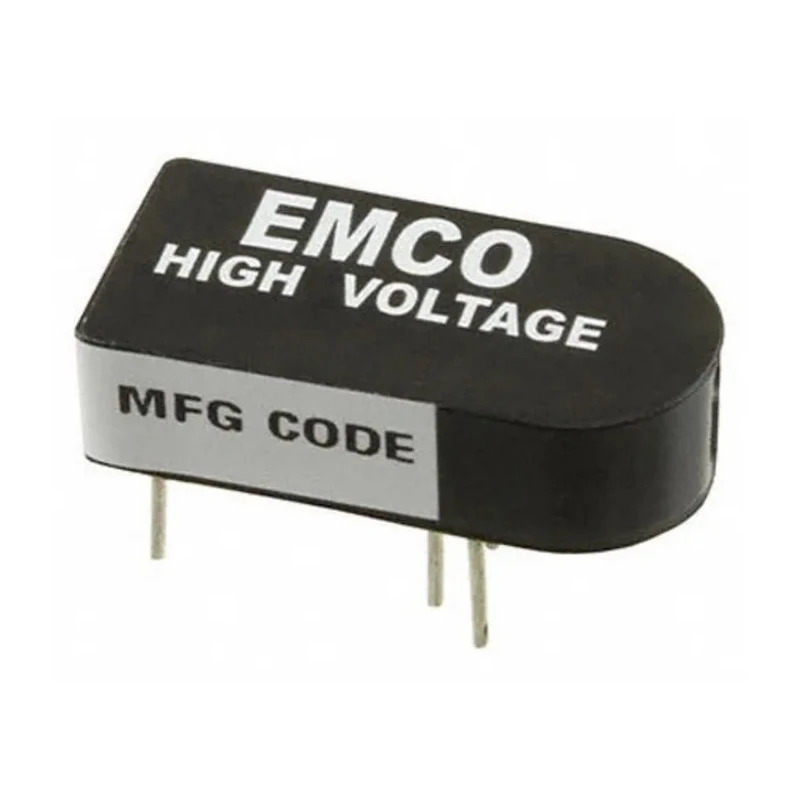

XP Power DC/DC Converter AH05P-12, 500V DC Output, 3mA, 12V DC Input, Through Hole, 1.5W, -25°C to 75°C AH05P-12
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power AH DC/DC Converter, 500V dc/ 3 mA, 12V dc |
| Brand | XP Power |
| Length | 23.37mm |
| Model | AH05P-12 |
| Gross Weight | 5.7g |
| Width | 11.43mm |
| Mount Type | Through Hole |
| Series | AH |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -25°C |
| MTBF | 1862000h |
| Number of outputs | 1 |
| Ripple and Noise | 0.7% Pk-Pk |
| Maximum Output Power | 1.5W |
| Maximum Input Voltage | 12V dc |
| Number of Pins | 5 |
| Output Voltage 1 | 500V dc |
| Output Current 1 | 3mA |
| Isolation Voltage | 500V |
Key Features
- Provides isolated DC to high voltage DC conversion with 500V DC output and 3mA current.
- Operates with a 12V DC input and delivers a power output of up to 1.5W.
- Designed in a compact form factor with through-hole mounting and 5-pin configuration.
- Suitable for demanding environments with operating temperature range from -25°C to 75°C.
- Ideal for applications such as avalanche photodiodes, capacitor charging, and mass spectrometry.
- Galvanic input to output isolation ensures robust electrical safety and protection.
- Low leakage current and ripple/noise of just 0.7% peak-to-peak improves signal integrity.
- One minute minimum short circuit protection and no minimum load required.
Product Description
XP Power's AH05P-12 DC/DC Converter features advanced high voltage isolated conversion capabilities, offering 500V DC output at 3mA and a maximum power of 1.5W. Designed for industrial and laboratory applications where compact size and high reliability are critical, this module accepts a 12V DC input and mounts via a through-hole configuration, making integration straightforward for PCB designs.
The AH Series offers quasi-sinewave oscillator control and galvanic isolation between input and output, allowing for secure operation in environments demanding electrical safety. With low leakage current and output/input capacitance, the converter excels in sensitive measurement and high-voltage generation requirements.
Compact form factor aids in minimal board space utilization, with dimensions of 23.37mm (length) and 11.43mm (width). Ideal for avalanche photodiodes, piezo devices, capacitor charging, photomultiplier tubes, electrophoresis, and sustaining ion pumps.
Ensures stable operation with ripple and noise at only 0.7% peak-to-peak and up to 1.5W continuous output. MTBF rated at 1,862,000 hours ensures exceptional reliability in laboratory and industrial deployments. One minute minimum short circuit protection for robust device safety.
Wide range temperature tolerance, from -25°C to 75°C, suitable for demanding environments including research labs and industrial sites. Applications include sensor biasing, capacitor charging, spectroscopy, and isolation requirements in measuring systems or signal conditioning environments.
XP Power's converters are RoHS and UL compliant, emphasizing a focus on reliability and environmental responsibility. Explore more DC-DC Converters in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The AH05P-12 model provides an output voltage of 500V DC.
This converter requires a 12V DC input voltage for operation.
The maximum output power of the AH05P-12 is 1.5W.
The operating temperature range for the AH05P-12 is from -25°C to 75°C.
This model has one output.
The ripple and noise for the AH05P-12 is specified at 0.7% peak-to-peak.
The AH05P-12 uses a through-hole mounting type.
The gross weight of the AH05P-12 is 5.7 grams.
The isolation voltage of the AH05P-12 is 500V.
The mean time between failures (MTBF) for the AH05P-12 is rated at 1,862,000 hours.
This model is suitable for applications such as avalanche photodiodes, capacitor charging, and mass spectrometry.
The AH05P-12 features a 5-pin configuration.
