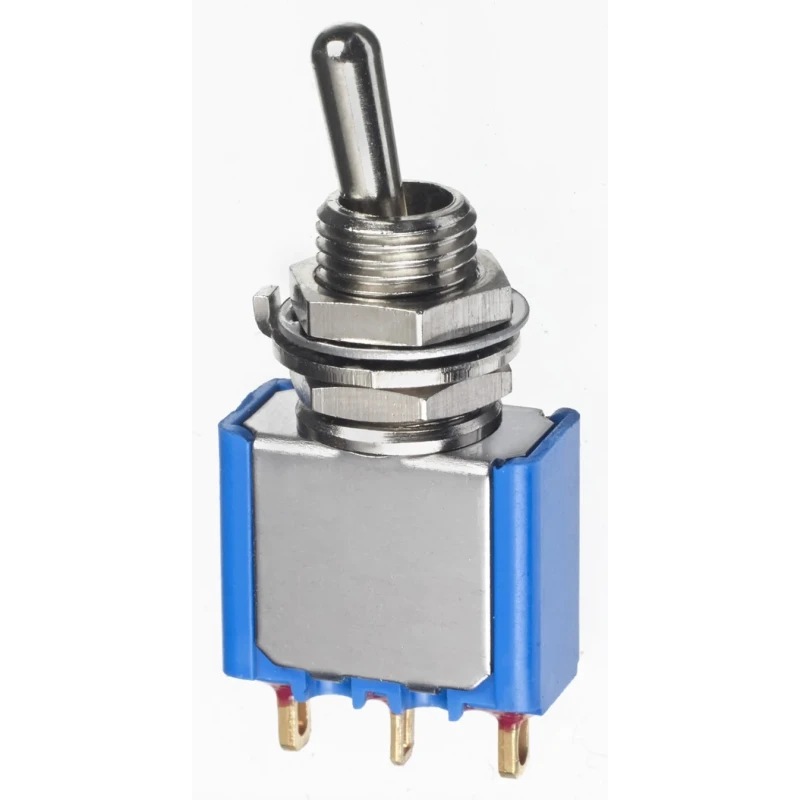

APEM Panel Mount Toggle Switch SPDT On-On Solder Lug 20V DC/AC Brass Actuator 5636CDB17
Specifications
| Country of Origin | India |
|---|---|
| Brand | APEM |
| Model | 5636CDB17 |
| Mount Type | Panel |
| Series | 5000 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 6.5 mm |
| Terminal type | Solder Lug |
| Standards/Approvals | UL, CSA, CECC 96201-007 |
| Switch Operation | On-On |
| Actuator Length | 7mm |
| Contact DC Voltage | 20V dc |
| Switch Contact Current | 10mA |
| Mechanical Life | 100000Cycles |
| Contact AC Voltage | 20V ac |
| Actuator Material | Brass |
Key Features
- Panel mount toggle switch suitable for industrial, automation, and electrical installations.
- Contact configuration is SPDT (Single Pole Double Throw) offering versatile On-On switching functions.
- Operates at 20V DC/AC for low voltage control circuits.
- Solder lug terminals allow secure and convenient connection.
- Brass actuator with 7 mm length ensures durability and easy operation.
- Panel cutout size of 6.5 mm for standard mounting.
- Rated for 10 mA switch contact current, supporting miniature signal control.
- Mechanical life rated for up to 100,000 cycles.
Product Description
APEM 5636CDB17 panel mount toggle switch is engineered for dependable performance in diverse electronics and electrical panel applications. Featuring an SPDT (Single Pole Double Throw) contact configuration, it enables On-On switching operation, ideal for signal controls, instrumentation, or compact automation setups. The switch is manufactured with robust brass actuator, 7 mm in length, delivering durability and smooth actuation. Installation is straightforward thanks to solder lug terminals, permitting secure connections in circuit boards and panel assemblies.
Panel mount toggle switch suitable for industrial, automation, and electrical installations. Contact configuration is SPDT (Single Pole Double Throw) offering versatile On-On switching functions. Operates at 20V DC/AC for low voltage control circuits.
Solder lug terminals allow secure and convenient connection. Brass actuator with 7 mm length ensures durability and easy operation. Panel cutout size of 6.5 mm for standard mounting. Rated for 10 mA switch contact current, supporting miniature signal control.
Mechanical life rated for up to 100,000 cycles. Operating temperature ranges from -40°C to 85°C, suitable for demanding environments. Complies with UL, CSA, and CECC 96201-007 standards.
It meets stringent compliance standards for quality and safety including UL, CSA, and CECC certifications, ensuring suitability for a wide range of professional and industrial settings. Typical use cases include control panels for manufacturing equipment, laboratory instrumentation, HVAC systems, and signal switching in water treatment or process automation environments.
With a mechanical life expectancy of up to 100,000 cycles and reliable performance across a broad temperature range, this switch is built to last in demanding conditions. Panel cutout requirement is 6.5 mm, making integration in new or retrofit projects seamless. Actuator material is high-quality brass, combining electrical conductivity with structural integrity. Solder lug terminals facilitate ease of wiring in prototyping or production environments.
Explore more Toggle Switches from APEM and other industrial switch categories on EnvMart for your electronics and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features an SPDT (Single Pole Double Throw) contact configuration, allowing for versatile On-On switching functions.
It operates at 20V DC and 20V AC, suitable for low voltage control circuits.
The mechanical life of this switch is rated for up to 100,000 cycles, ensuring long-term performance in applications.
The required panel cutout size for this switch is 6.5 mm, facilitating standard mounting.
The operating temperature range is from -40°C to 85°C, making it suitable for demanding environments.
It uses solder lug terminals, which allow for secure and convenient connections in circuit boards and panel assemblies.
The actuator is made of brass, providing durability and good electrical conductivity.
It complies with UL, CSA, and CECC 96201-007 standards, ensuring quality and safety for various applications.
The switch contact current is rated at 10 mA, suitable for miniature signal control.
This model is suitable for control panels in manufacturing equipment, laboratory instrumentation, HVAC systems, and signal switching in process automation.
The actuator length is 7 mm, facilitating smooth operation.
This toggle switch belongs to the 5000 series, designed for industrial and automation applications.
