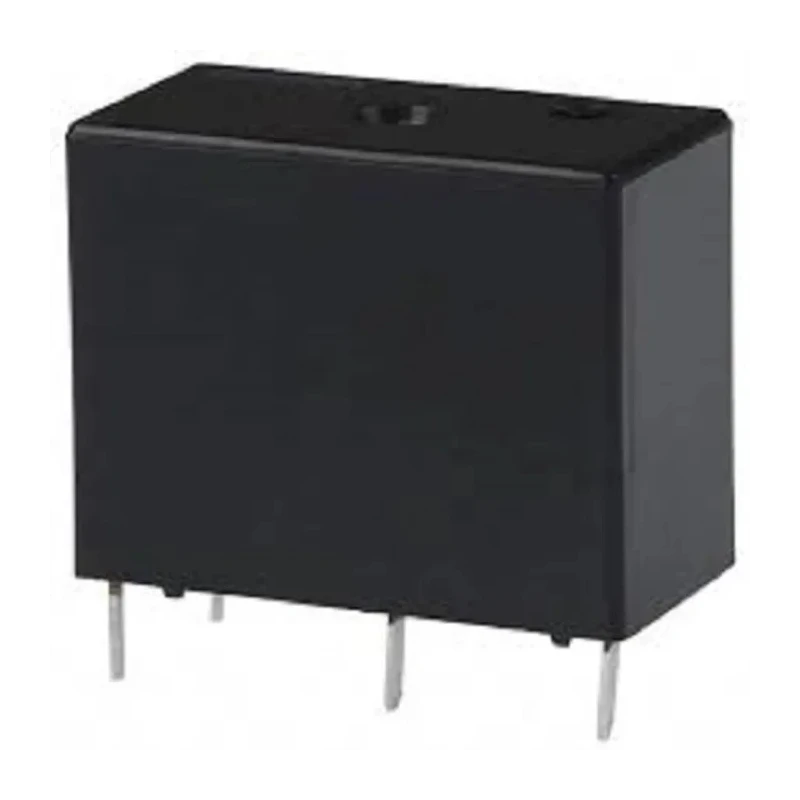

Omron PCB Non-Latching Relay SPDT 24V DC Coil, 3A Switching Current, Silver Alloy Contacts G5Q-14 DC24 (TY)
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 15.8mm |
| Length | 20.3mm |
| Model | G5Q-14 DC24 (TY) |
| Width | 10.3mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5Q |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPDT |
| Ambient Operating Humidity | 5% to 85% |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3A |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Standards/Approvals | IEC/EN 60335-1, RoHS, VDE |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 400mW |
Key Features
- Designed for PCB mounting with solder terminals for secure electrical connections.
- Operates with a 24V DC coil voltage and supports a maximum switching current of 3A.
- SPDT (Single Pole Double Throw) contact configuration suitable for versatile control logic.
- Silver alloy contact material ensures enhanced conductivity and durability.
- Compact design with dimensions 20.3mm (L) x 10.3mm (W) x 15.8mm (H) allows easy PCB integration.
- Wide operating temperature range from -40°C to 105°C for reliable function in demanding environments.
- Coil resistance rated at 1.4kΩ, minimizing power consumption and thermal rise.
- Complies with IEC/EN 60335-1, RoHS, and VDE standards for safety and environmental compatibility.
Product Description
Omron G5Q-14 DC24 (TY) PCB Non-Latching Relay is a specialized miniature power relay engineered for reliable and efficient power switching in automation, control, and signal conditioning systems. Featuring a robust SPDT contact configuration and a 24V DC coil, it offers enhanced versatility and ensures dependable switching for industrial, commercial, and laboratory applications.
This relay is constructed with high-quality silver alloy contacts, providing low contact resistance and outstanding durability. Its compact footprint (20.3mm x 10.3mm x 15.8mm) is ideal for PCB integration, supporting a maximum switching current of 3A and accommodating both DC (up to 30V) and AC (up to 277V) voltages.
Designed for PCB mounting with solder terminals for secure electrical connections. Operates with a 24V DC coil and supports a switching current up to 3A. SPDT configuration is versatile, enabling control over multiple circuits with a single relay.
Silver alloy contacts enhance electrical performance and longevity. Wide operating temperature range from -40°C to 105°C suitable for demanding conditions. Coil resistance of 1.4kΩ allows efficient energy usage. Compliant with IEC/EN 60335-1, RoHS, and VDE safety standards.
Additional features include a sealed enclosure rating and low power consumption, making this relay a preferred choice for industrial, manufacturing, HVAC, and automation designs where reliability and robustness are critical. The relay is suited for electronic control panels, signal transmission devices, and power management systems.
Its ambient operating humidity tolerance (5% to 85%) and contact resistance of 100mΩ further reinforce its capability in high-performance environments. The G5Q series delivers practical solutions for designers and engineers seeking compact, functional, and highly reliable relays in their electronic projects.
Explore other Omron relay solutions in the 'Power Relays' category on EnvMart for comprehensive automation and control options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 3A.
This model operates with a coil voltage of 24V DC.
The relay has dimensions of 20.3mm in length, 10.3mm in width, and 15.8mm in height.
It features a Single Pole Double Throw (SPDT) contact configuration.
The operating temperature range is from -40°C to 105°C.
The contacts are made of silver alloy, which enhances conductivity and durability.
The coil resistance is rated at 1.4kΩ.
It complies with IEC/EN 60335-1, RoHS, and VDE standards.
The ambient operating humidity tolerance is between 5% to 85%.
It can switch DC voltages up to 30V and AC voltages up to 277V.
This relay is designed for PCB mounting with solder terminals.
The coil power consumption is 400mW.
