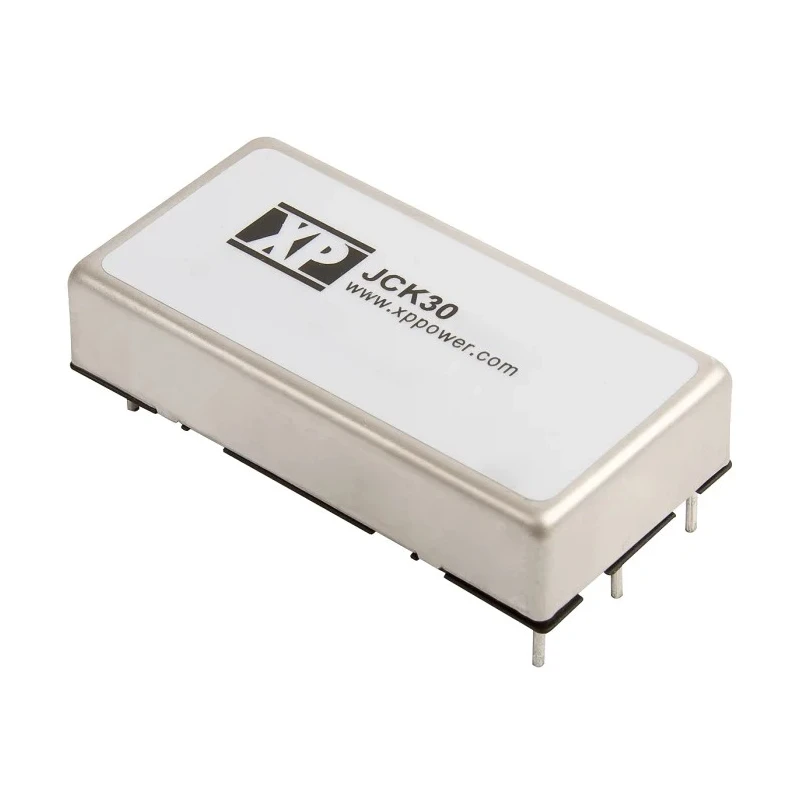

XP Power JCK30 Series DC/DC Converter 5V DC Output, 6A, 18 - 36V DC Input, Through Hole, 30W, -40°C to 100°C, 1600V JCK3024S05
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCK DC/DC Converter, 5V dc/ 6 A, 36V dc I |
| Brand | XP Power |
| Efficiency | 91% |
| Length | 50.8mm |
| Model | JCK3024S05 |
| Depth | 10.16mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JCK |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 430000h |
| Number of outputs | 1 |
| Maximum Output Power | 30W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 6 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 6A |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
Key Features
- High reliability DC/DC converter designed for demanding electronic applications.
- Provides 5V DC output voltage with maximum output current of 6A.
- Delivers up to 30W of output power, suitable for compact designs.
- Features 1600V DC isolation for electrical safety and robust performance.
- Through-hole mounting for secure board installation in industrial environments.
- Operates effectively from -40°C to 100°C, supporting harsh conditions.
- Efficiency up to 91%, minimizing heat and optimizing energy use.
- Single output channel with remote on/off capabilities.
Product Description
XP Power JCK3024S05 is an industrial-grade DC/DC converter engineered for high-performance electronic and power supply systems. This model is part of the JCK30 Series and delivers a regulated 5V DC output at up to 6A, with an input voltage range from 18V to 36V DC, supporting flexible operating conditions. Offering 30W output power, it is well-suited for applications requiring reliable board-level power conversion.
With its robust 1600V DC isolation, the device ensures safety and circuit protection in demanding environments. The converter features a 2:1 input ratio, allowing compatibility with a variety of DC source voltages. Its single-output design, combined with remote on/off functionality, enables precision control in automated systems.
High reliability DC/DC conversion for industrial, laboratory, and electronic installations. 5V DC output voltage with 6A maximum output current, suitable for powering sensors, controls, and embedded devices. Wide 18 - 36V DC input range accommodates versatile supply sources.
30W maximum output power supports compact PCB layouts. 1600V isolation for enhanced equipment safety. Board mount design using secure through-hole mounting in DIP package (50.8mm x 25.4mm x 10.16mm). Efficiency of up to 91% reduces heat generation and improves energy use.
Operates reliably from -40°C to 100°C for use in extreme industrial or outdoor environments. MTBF rated at 430,000 hours for long-term operation. Remote enable/disable for advanced board-level control.
The XP Power JCK3024S05 DC/DC Converter is ideal for industrial control, automation, instrumentation, telecommunication equipment, and sensitive electronics. Its compact physical form and high performance make it a strong solution for modern design needs.
Package contents: 1x XP Power JCK3024S05 DC/DC Converter. For more products in the DC-DC Converter category or the XP Power brand, browse EnvMart's listings.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 5V DC with a maximum output current of 6A.
The JCK3024S05 operates with an input voltage range of 18V to 36V DC.
It delivers a maximum output power of 30W.
The efficiency of this model is rated up to 91%, which helps minimize heat generation.
This converter features a robust isolation voltage of 1600V DC, ensuring electrical safety.
The dimensions of this model are 50.8mm in length, 25.4mm in width, and 10.16mm in depth.
It operates effectively in a temperature range from -40°C to 100°C.
This unit features a through-hole mounting design, suitable for secure board installation.
The mean time between failures (MTBF) for this model is rated at 430,000 hours.
Yes, it includes remote on/off capabilities for advanced control in automated systems.
It is ideal for industrial control, automation, instrumentation, telecommunication equipment, and sensitive electronics.
This model comes in a DIP package type.
