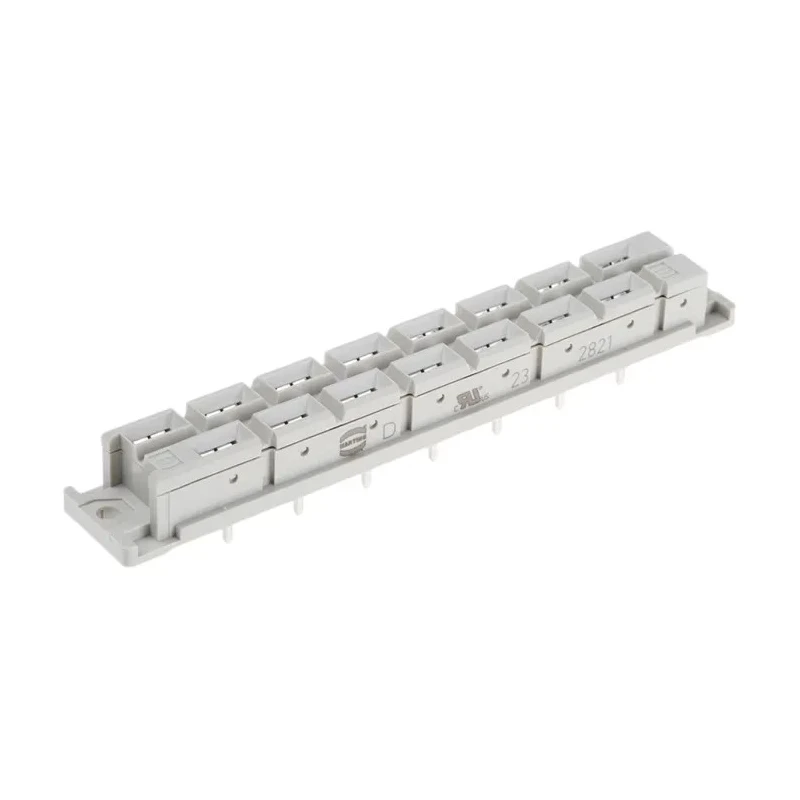

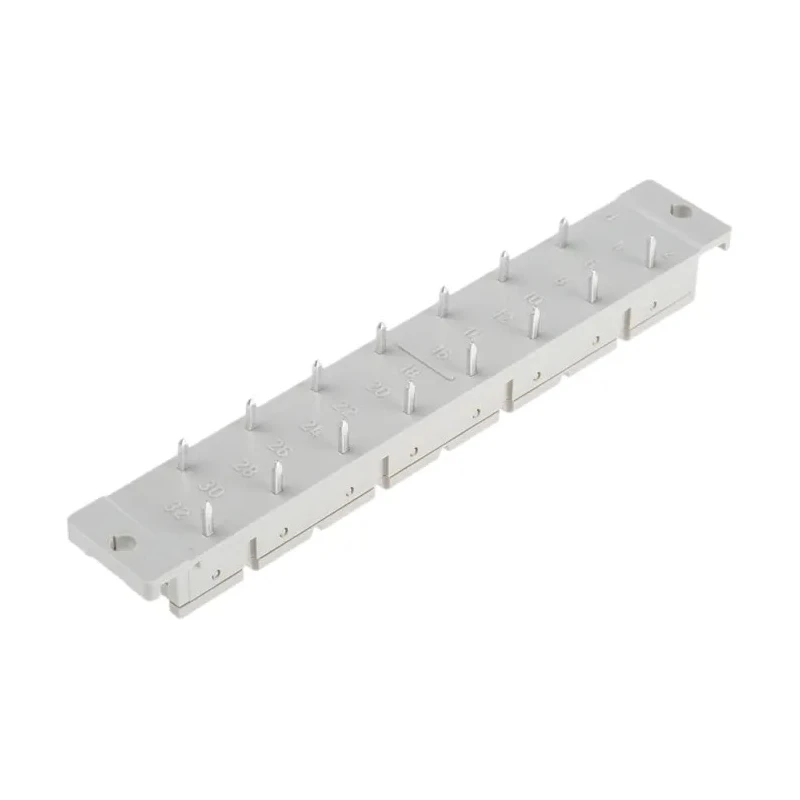

HARTING DIN 41612 Connector 15 Way, 10.16 mm Pitch, 2 Row, Straight, Female, Solder, H15 Type, Silver-Plated 09062152821

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 Connector 15 Way, 10.16 mm Pitch, 2 Row, Straight, Female, Solder, H15 Type, Silver-Plated 09062152821

Name: HARTING DIN 41612 Connector 15 Way, 10.16 mm Pitch, 2 Row, Straight, Female, Solder, H15 Type, Silver-Plated 09062152821
Brand: HARTING
SKU: 90445
Price: 14.44 USD
Availability: InStock



Category DIN 41612 Connector Brand HARTING Condition New

Specifications

Country of Origin	Romania
Brand	HARTING
Orientation	Straight
Current	15A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	H15
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	10.16mm
Contact Plating	Silver
Number of Contacts	15
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	8mΩ
Row Loading	D/Z
ERNI 15 Way 10.16mm Pitch, 2 Row, Straight DIN 41612 Connector, SocketBrand	ERNI

Key Features

Provides 15 contact positions arranged in 2 rows for dense, efficient PCB connections.
Supports up to 15A current per contact with low maximum contact resistance of 8 mΩ.
Silver-plated copper alloy contacts ensure excellent conductivity and signal integrity.
Robust polybutylene terephthalate thermoplastic housing withstands -55°C to +125°C ambient conditions.
Through-hole mounting and solder termination enable secure integration in backplane and rack assembly.
Designed as type H15, Class C1 for reliable performance in automation, industrial, and harsh environments.
Female straight connector is compatible with DIN 41612 series hardware.
Suitable for interconnections in control systems, electrical cabinets, and industrial equipment.

Product Description

HARTING 09062152821 DIN 41612 Connector provides a 15-way electrical interface with a 10.16 mm pitch, suited for robust and compact connections in industrial and automation systems. This high-performance connector features 2 rows of female contacts, arranged for efficient space utilization and reliable signal transmission on printed circuit boards.

With a straight body orientation, this connector is optimized for straightforward installation in through-hole PCB designs and backplane assemblies. Built with a durable thermoplastic (polybutylene terephthalate) housing, it delivers stability against vibration and mechanical stress, ensuring dependable operation in demanding technical environments.

The silver-plated copper alloy contacts guarantee low contact resistance (maximum 8 mΩ) and optimal signal integrity, while supporting high current requirements up to 15A. The solder termination method permits robust and secure attachment for industrial-grade wiring, and the H15 subtype with Class C1 rating highlights its suitability in complex, high-reliability control panels and electrical cabinets.

15 contact positions, organized in 2 rows for efficient PCB footprint. Rated 15A per contact, meeting industrial automation needs. Silver contact plating for superior conductivity and reduced signal loss. 55°C to 125°C operating temperature range for extended application versatility.

Female connector gender, through-hole mounting, and solder termination. Designed as H15 Sub-type, Class C1 for enhanced mechanical and electrical properties. Polybutylene terephthalate housing for environmental resilience.

This DIN 41612 connector is ideal for connecting printed circuit boards in automation, factory equipment, electrical distribution racks, and instrumentation systems. Its high current rating, thermal durability, and low resistance make it valuable in harsh industrial settings, such as process control and power management equipment.

Package Contents: 1 Female DIN 41612 Connector, 15 Way, Straight, H15, Solder, Silver-Plated. Explore similar connectors and discover more industrial electronic interconnect solutions in the HARTING DIN 41612 series on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It supports a current rating of up to 15A per contact, making it suitable for various industrial applications.

The connector features a pitch of 10.16 mm, allowing for efficient use of space on printed circuit boards.

It operates effectively within a temperature range of -55°C to +125°C, suitable for a variety of environments.

The housing is made of polybutylene terephthalate, and the contacts are silver-plated copper alloy, ensuring good conductivity and environmental resilience.

This model has a total of 15 contact positions arranged in 2 rows.

It utilizes a solder termination method, which allows for secure attachment to printed circuit boards.

Yes, it is designed as a type H15, Class C1 connector, making it reliable for use in industrial and harsh environments.

The maximum contact resistance is 8 mΩ, which helps ensure optimal signal integrity.

This connector supports through-hole mounting, facilitating secure integration into backplane and rack assemblies.

The connector is a female type, designed for compatibility with DIN 41612 series hardware.

The country of origin for this connector is Romania.

It is suitable for interconnections in control systems, electrical cabinets, and industrial equipment.
