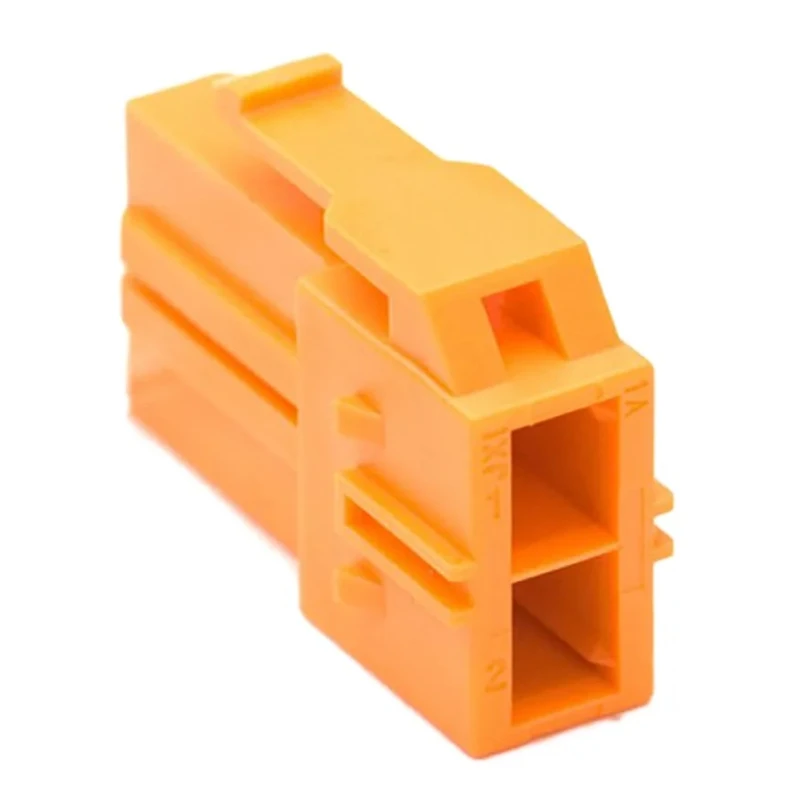

Molex CP-6.5 Female Connector Housing 6.5 mm Pitch, 2 Way, 2 Row Straight 151049-2200

Molex 151049-2200 CP-6.5 Female Connector Housing is a precision 2 way, 2 row straight cable mount connector housing with 6.5 mm pitch. Crafted from polybutylene terephthalate, it offers robust mechanical performance and excellent insulation properties necessary for reliable electrical connections.

This connector housing is designed for use with female crimp terminals accommodating wire sizes from 16 to 26 AWG and mates with matching CP-6.5 series PCB headers. It incorporates a positive lock mechanism that provides a secure connection with an audible click to confirm full engagement, improving safety and preventing accidental unmating.

Typical applications span consumer appliances such as washing machines, water heaters, and air conditioners, as well as industrial equipment including industrial controls, HVAC systems, copiers, vending machines, and security systems. Its compact dimensions with a length of 6.34 mm and width of 11.5 mm allow for efficient PCB space utilization in dense electronic assemblies.

The housing design features colour coding for simple identification and polarization keys on the housing rib to facilitate accurate mate alignment, reducing assembly errors. This 151049 series product from Molex is manufactured in India under stringent quality controls ensuring consistent performance.

Optional accessories compatible with this housing include terminal position assurance retainers for enhanced contact security. This connector housing is part of the CP-6.5 series wire-to-board solutions widely recognized for their reliability in industrial and consumer electrical systems.

The housing features a polybutylene terephthalate construction providing excellent durability and insulation. It supports female crimp terminals for 16-26 AWG wires compatible with CP-6.5 series terminals and headers. Includes a positive locking mechanism with audible click for secure mating.

Designed for consumer and industrial applications including appliances, HVAC, vending machines, and security systems. The 2 row, 2 contact layout and 6.34 mm length facilitate compact PCB mounting. Colour-coded housings allow foolproof identification of mating connectors.

Polarization keys on housing ribs ensure accurate alignment and mating. Manufactured in India with high reliability standards and no certifications specified. Explore our catalog of Molex Connector Housings and wire-to-board connectors for industry-leading quality and dependable performance in your electronics manufacturing projects.
