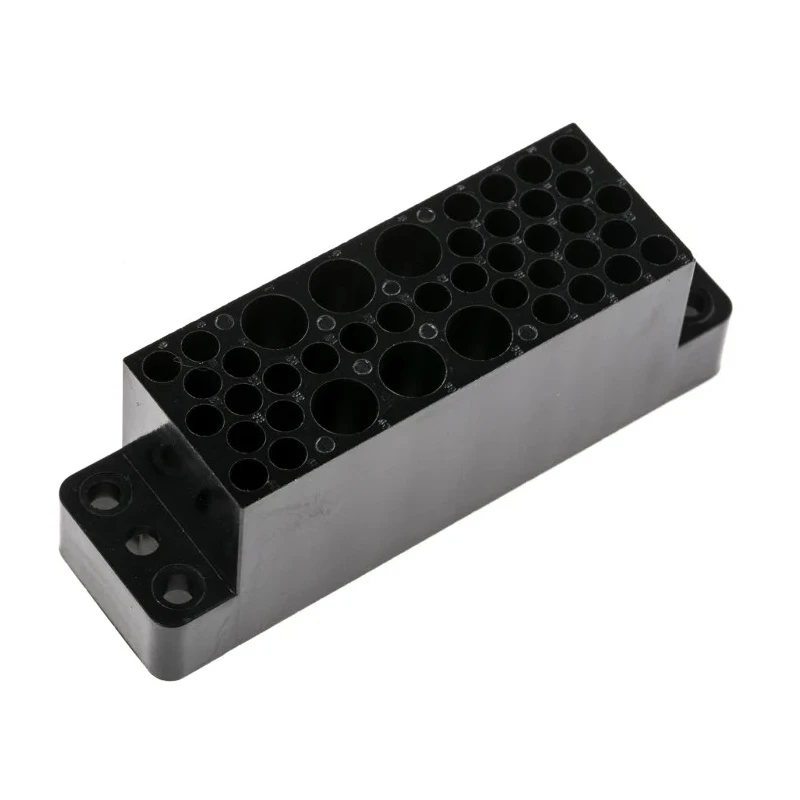

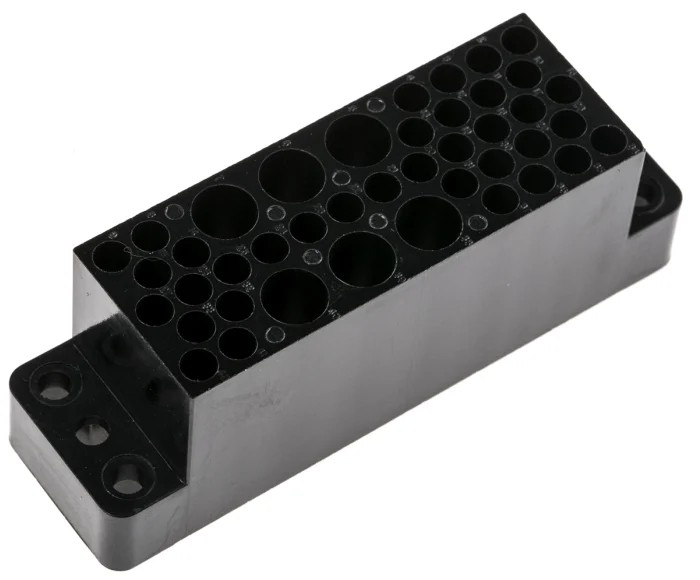

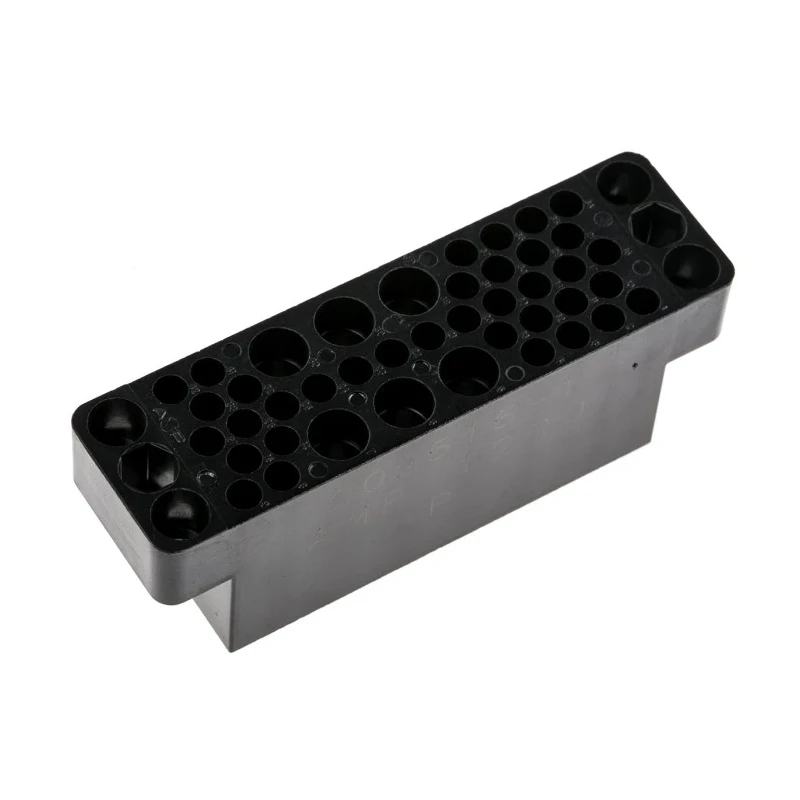

TE Connectivity M Series Male Connector Housing 42 Contacts 5 Row 4.11 mm Pitch Straight Panel Mount 202515-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 65.86mm |
| Model | 202515-1 |
| Width | 19.05mm |
| Mount Type | Panel |
| Housing Material | Phenolic Resin |
| Series | M |
| Number of Rows | 5 |
| Pitch | 4.11mm |
| For Use With | Standard 50 Position Hardware, Receptacle Block 202516 |
| Number of Contacts | 42 |
| Connector Gender | Male |
Key Features
- This male connector housing is designed for panel mounting applications.
- It supports standard 50-position hardware and is compatible with receptacle block model 202516.
- The housing is made from durable phenolic resin for reliability and electrical insulation.
- Its compact dimensions are 65.86 mm length and 19.05 mm width to fit constrained electronic assemblies.
- The straight orientation allows for straightforward connections in electronic components and power connectors.
- Ideal for use in electronic component assemblies requiring robust connector housings.
- Compatible with Multimate type II, III+, and subminiature COAXICON crimp-type contacts as well as type III+ solder-type contacts.
- Standard M series connector housing suitable for demanding industrial and electronic applications.
Product Description
TE Connectivity 202515-1 M Series Male Connector Housing is engineered for high-quality electronic and power connector applications. This panel mount housing accommodates 42 contacts arranged in 5 rows with a precise 4.11 mm pitch, supporting secure, straight connections in complex wiring assemblies.
The housing's phenolic resin construction provides excellent electrical insulation and mechanical robustness, ensuring component protection in industrial and commercial environments. Measuring 65.86 mm in length and 19.05 mm in width, it is designed to fit within compact electronic enclosures without sacrificing durability.
This connector housing supports standard 50-position hardware and is designed to be used in conjunction with receptacle block 202516, making it versatile within M series connector systems. The straight orientation simplifies installation and wiring, making it suitable for electronic components where reliable, repeatable connectivity is required.
Leveraging TE Connectivity’s established M series design, it supports multiple contact types including Type II, Type III+, and subminiature COAXICON crimp-type contacts, along with solder-type and posted contacts. This interchangeability enhances flexibility in assembly build-outs and repairs.
This connector housing features 42 contacts arranged in 5 rows for dense wiring applications. It has a pitch of 4.11 mm to match industry standards for M series connectors. Constructed from durable phenolic resin material for superior insulation and strength.
Panel mount design with straight connector orientation facilitates standardized installation. Compatibility with 50-position standard hardware and receptacle block 202516. Supports a variety of contact types including crimp and solder variants.
Dimensions are compact at 65.86 mm length and 19.05 mm width, allowing use in space-limited environments.
Applications for this connector housing span electronic components, power connectors, and other industrial electrical assemblies requiring reliable and durable connector solutions. It is suitable for manufacturing, industrial automation, telecom equipment, and other high-performance electronics.
Explore more Connector Housing options within TE Connectivity products at EnvMart for expert-grade industrial and electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector housing accommodates 42 contacts arranged in 5 rows with a pitch of 4.11 mm.
It features a panel mount design, allowing for straightforward installation in electronic assemblies.
The housing is made from phenolic resin, which provides electrical insulation and mechanical robustness.
The connector housing measures 65.86 mm in length and 19.05 mm in width, making it suitable for compact electronic enclosures.
It is compatible with Multimate type II, III+, subminiature COAXICON crimp-type contacts, as well as type III+ solder-type contacts.
Yes, it is designed for demanding industrial and electronic applications, providing reliable connectivity in complex wiring assemblies.
The connector housing features a straight orientation, which facilitates straightforward connections in electronic components.
It supports standard 50-position hardware and is designed for use with receptacle block model 202516.
This model is part of the M series connector housing from TE Connectivity.
The country of origin for this connector housing is India.
It is suitable for applications in manufacturing, industrial automation, telecom equipment, and other high-performance electronics.
This connector housing is designed as a male connector.
