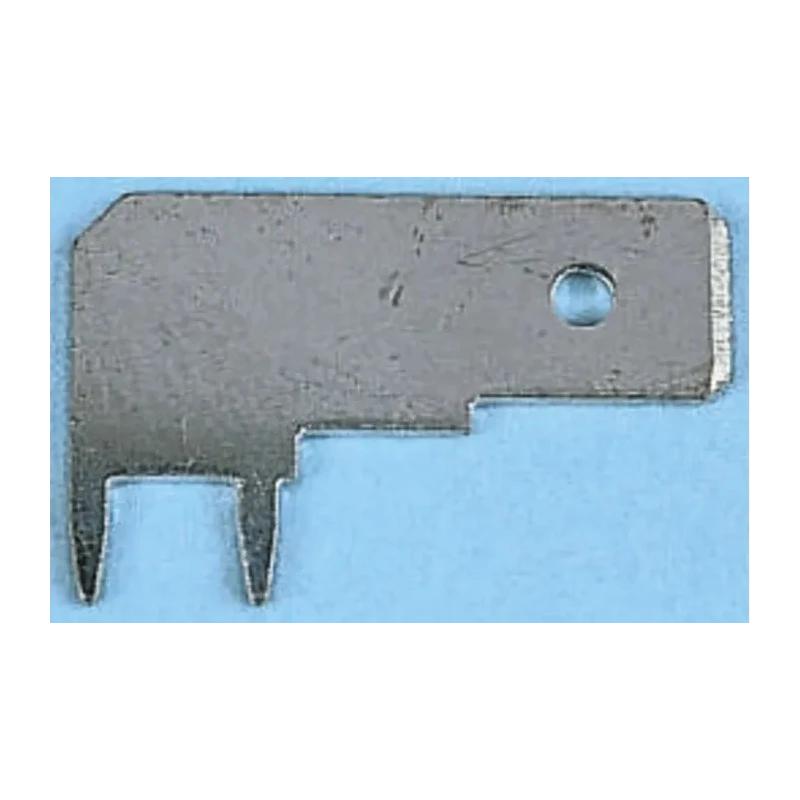

Keystone PC QUICK-FIT Black Uninsulated Male Spade Connector, Solder, 6.35 x 0.81 mm Tab Size 1266
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Keystone |
| Colour | Black |
| Orientation | Horizontal |
| Model | 1266 |
| Gender | Male |
| Insulation | Uninsulated |
| Overall Length | 20.04mm |
| Contact Material | Brass |
| Series | PC QUICK-FIT |
| Termination Type | Solder |
| Insulation Material | Thermoplastic |
| Contact Plating | Tin |
| Tab Width | 6.35mm |
| Tab Thickness | 0.81mm |
| Tab Size | 6.35 x 0.81 mm |
| RS PRO Uninsulated Crimp Blade Terminal 22.7 mm Blade LengthRS Stock No. | 534-840Brand: RS PRO |
| RS PRO Uninsulated Crimp Blade Terminal 22.7 mm Blade LengthBrand | RS PRO |
Key Features
- Features a 6.35 mm wide by 0.81 mm thick angled tab for secure PCB mounting.
- Designed for solder termination, ensuring stable electrical connection.
- Male spade connector configuration for quick and reliable mating.
- Composed of durable brass with a protective tin plating for enhanced conductivity.
- Uninsulated style allows for efficient heat dissipation during soldering.
- Black coloured thermoplastic base provides additional strength and identification.
- Overall length of 20.04 mm supports compact PCB layouts.
- Ideal for power electronics, prototyping, and custom PCB assembly.
Product Description
Keystone 1266 is a PC QUICK-FIT uninsulated male spade connector engineered for professional-grade PCB soldering applications. This connector features a 6.35 mm x 0.81 mm angled tab, which enables secure and reliable mounting with the output orientated perpendicular to the board, making it suitable for high-density electronics layouts.
The male connector is designed for solder terminations, allowing for stable electrical connections with minimal contact resistance. Constructed from high-quality brass and finished with tin plating, the 1266 ensures excellent conductivity and corrosion resistance, supporting long-term performance in demanding environments.
The uninsulated architecture permits effective heat dissipation while soldering and simplifies integration within compact PCBs. The black thermoplastic body not only reinforces the connector's structure but also aids in component identification during assembly or repair operations.
Measuring 20.04 mm in overall length, this compact connector is ideal for use in power distribution circuits, electronic manufacturing, industrial automation, and prototyping applications where space optimization is critical. Its horizontal tab orientation and robust build make it a preferred choice for both industrial and laboratory projects.
6.35 mm (width) x 0.81 mm (thickness) angled male tab for PCB soldering. Uninsulated design supports efficient heat transfer and easy soldering integration. Brass contact with tin plating provides enhanced electrical performance and durability.
Black thermoplastic supports and insulates the terminal body. 20.04 mm overall length for dense board layouts. Ideal for use in electronics assembly, power supplies, and test equipment. Compatible with standard PC board designs and wire terminals.
Provides quick, reliable connections in industrial and commercial electronic devices.
Use this Keystone PC QUICK-FIT spade connector for professional electronics, laboratory prototyping, and industrial manufacturing where dependable uninsulated male terminations are required.
Browse more PCB, wire, and Spade Connectors from Keystone and related global industrial brands on EnvMart for high-quality electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tab size of this male spade connector is 6.35 mm wide by 0.81 mm thick.
It is constructed from brass with a tin plating for enhanced conductivity, and the insulation material is thermoplastic.
The overall length of this connector is 20.04 mm.
This model uses solder termination for stable electrical connections.
This connector is uninsulated, which allows for efficient heat dissipation during soldering.
The tab is oriented horizontally, allowing for secure PCB mounting.
It is ideal for use in power distribution circuits, electronic manufacturing, industrial automation, and prototyping applications.
This connector is a male spade connector.
The thermoplastic body of this connector is black in color.
Its compact design with an overall length of 20.04 mm supports high-density PCB layouts, making it suitable for space optimization.
The contact material is brass, providing excellent conductivity and corrosion resistance.
This connector is manufactured in the United States.
