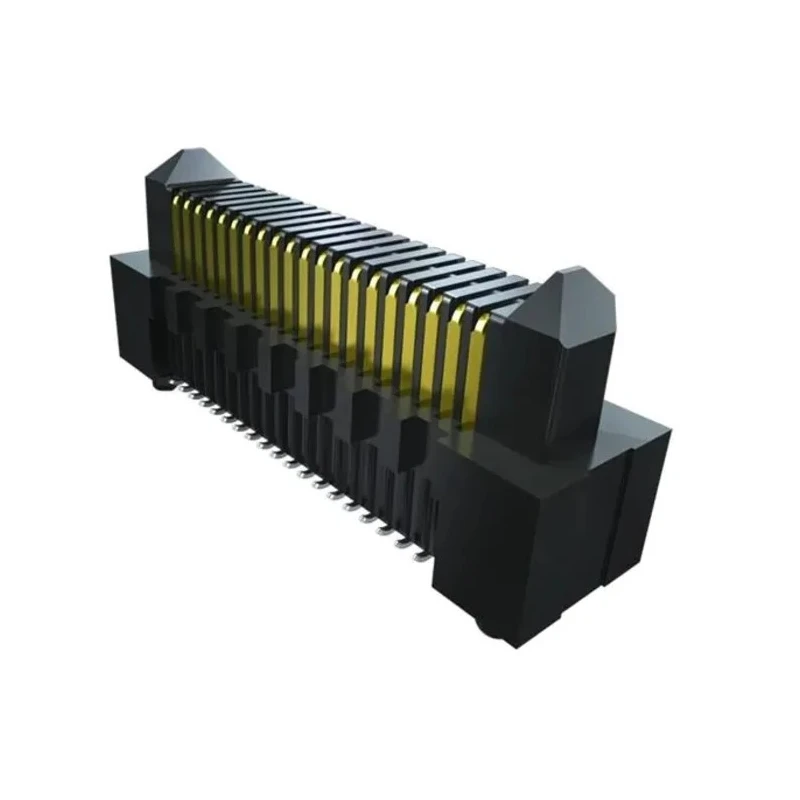

Samtec Horizontal Surface Mount PCB Header, 50 Contacts, 0.8mm Pitch, 2 Row, Shrouded ERM8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 318V |
| Brand | Samtec |
| Orientation | Horizontal |
| Current | 1.4A |
| Model | ERM8 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | ERM8 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Features 50 contacts arranged in 2 rows for secure high-density connection.
- 0.8mm pitch suitable for compact electronic assemblies.
- Surface mount type for efficient PCB integration.
- Shrouded header enhances protection and alignment accuracy.
- Gold-plated phosphor bronze contacts for excellent conductivity and durability.
- Liquid crystal polymer housing ensures mechanical robustness and high-temperature resistance.
- Rated for 1.4A current and 318V voltage, suitable for demanding applications.
- Operating temperature range from -55°C to 125°C for industrial reliability.
Product Description
The Samtec ERM8-025-09.0-S-DV-K-TR is a premium horizontal surface mount PCB header engineered for high-performance and robust board-to-board electronic connections. With a fine pitch of 0.8mm, it accommodates high-density circuit designs essential for modern electronics.
Designed with shrouded mechanism for reliable, protected mating and accurate alignment in board stacking applications. Contacts are crafted from phosphor bronze and plated with gold for superior corrosion resistance and excellent electrical conductivity.
Liquid crystal polymer housing allows the connector to withstand high processing and operating temperatures, making it suitable for industrial environments. Supports a 1.4A current rating and a voltage rating up to 318V, covering a broad range of signal and power applications.
Horizontal mounting orientation and surface mount design facilitate efficient automated PCB assembly. Solder termination ensures durable connections and long-term performance even in vibration-prone settings. Can operate reliably in extreme environments from -55°C up to +125°C.
Suited specifically for industrial control, communication equipment, test and measurement systems, and high-speed computing applications requiring precise, repeated interconnections.
This Samtec ERM8 header is part of the ERM8 series, known for ruggedness and high-speed signal transmission. It is widely used in industrial electronics, laboratory instrumentation, telecommunications infrastructure, and advanced embedded systems.
Shrouded and dual-row board-to-board designs make these headers ideal for compact modular equipment where density and secure mating are critical. The gold finish provides low contact resistance and durability during repeated insertions.
Whether in production environments, laboratory setup, or high-reliability computing, the ERM8-025-09.0-S-DV-K-TR Horizontal Surface Mount PCB Header delivers both mechanical and electrical excellence. Explore more electronic connectors and headers in the EnvMart catalog to match your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 0.8mm, making it suitable for compact electronic assemblies.
It is rated for a current of 1.4A, which is suitable for various signal and power applications.
The voltage rating of this header is 318V, allowing it to be used in demanding applications.
The contacts are made of phosphor bronze and are gold-plated for excellent conductivity and corrosion resistance.
The operating temperature range is from -55°C to 125°C, ensuring reliability in industrial environments.
This model features 50 contacts arranged in 2 rows, providing a secure high-density connection.
It uses a surface mount type, which facilitates efficient automated PCB assembly.
This header uses solder termination, ensuring durable connections even in vibration-prone settings.
The orientation of this header is horizontal, suitable for various board stacking applications.
This model is shrouded, which enhances protection and alignment accuracy during mating.
It is suited for industrial control, communication equipment, test and measurement systems, and high-speed computing applications.
The country of origin for this PCB header is India.
