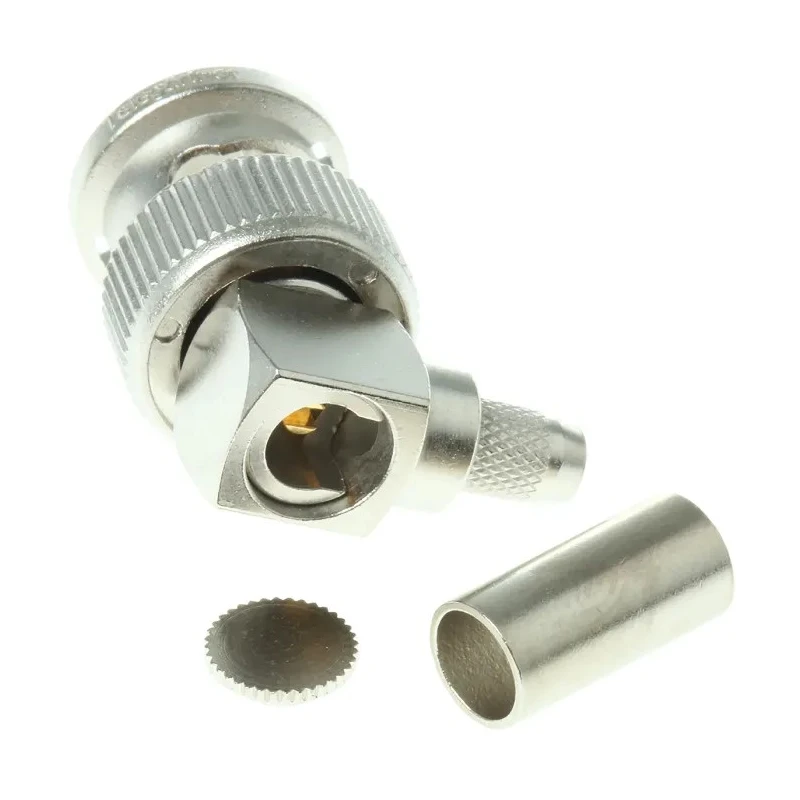

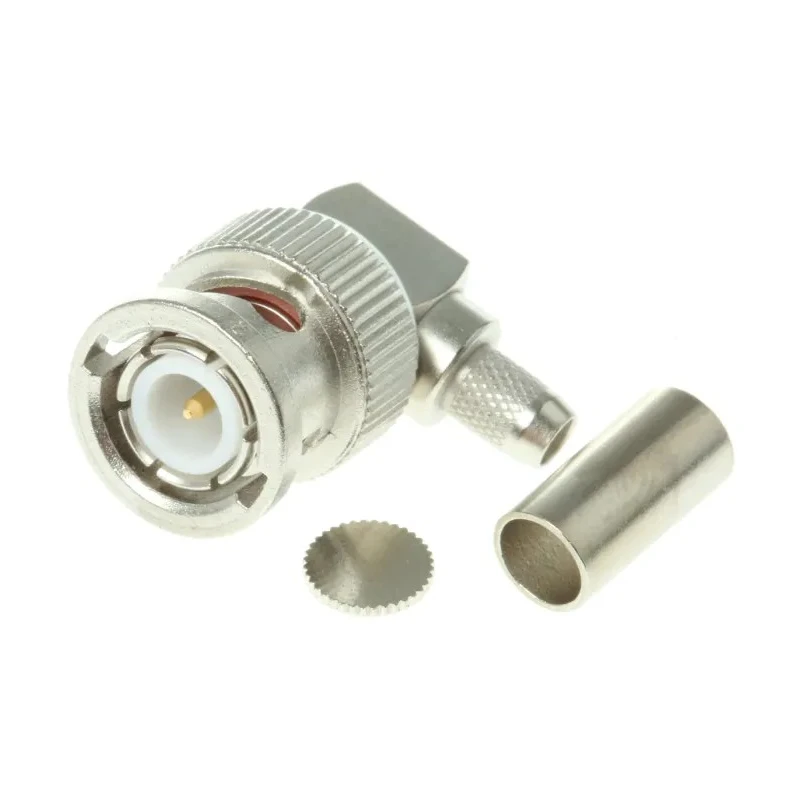

Telegartner BNC Series Coaxial Connector Cable Male BNC, 50 Ω, Right Angle Crimp J01000A1257
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Right Angle |
| Model | J01000A1257 |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | BNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG58C/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| Telegartner, Plug Cable Mount, 50Ω, Clamp Termination, Right Angle BodyBrand | Telegartner |
Key Features
- Compact BNC series right angle cable mount connector designed for RG58C/U cable applications.
- Features a male gender contact with a bayonet coupling mechanism for reliable connectivity.
- 50 Ω impedance suitable for signal, data, and video transmission requirements.
- Crimp termination type ensures secure and fast assembly for professional installations.
- Gold-plated beryllium copper contacts and nickel body plating for durable performance and corrosion resistance.
- Operating frequency up to 4 GHz and rated for temperatures from -65°C to 165°C.
- Right angle design facilitates installation in confined spaces and complex cable routing.
- IP54 rated (when mated) for moderate dust and moisture protection in industrial environments.
Product Description
Telegartner J01000A1257 BNC Series Coaxial Connector Cable is engineered for professional electronic and industrial signal transmission, featuring a robust right angle male BNC interface. Designed specifically for RG58C/U cable types, this connector provides a 50 Ω impedance, making it suitable for high-frequency data, signal, and video transmission tasks across various commercial and industrial environments.
This BNC connector incorporates a bayonet coupling mechanism that ensures a secure connection and fast locking/unlocking, with only a quarter turn required. Its crimp termination type enables rapid and reliable assembly, ideal for maintenance and installation work where dependability and efficiency are paramount. The connector body is plated with nickel for enhanced durability and corrosion resistance, while the contact material is high-grade beryllium copper alloy, gold plated for superior conductivity and long-life performance.
Supporting operating frequencies up to 4 GHz and temperatures ranging from -65°C to 165°C, the J01000A1257 offers outstanding reliability even under challenging environmental conditions. The right angle design is a practical solution for installations with limited space or complex cable routes, simplifying cable management and reducing strain.
Male connector with bayonet lock and normal polarity ensures versatile compatibility for signal, data, and video applications. PTFE insulator provides excellent dielectric strength, maintaining signal integrity at high frequencies.
IP54 environmental rating (when mated) offers moderate protection against dust and splash water, suitable for laboratory, industrial, broadcast, and commercial usage. Crimp termination type delivers secure cable fixing and vibration resistance, supporting professional-grade assembly.
No bulkhead mounting; dedicated for cable installation and integration. Gold-plated contacts enhance connectivity and reduce signal loss.
Applications include instrumentation, industrial automation, laboratory setups, broadcast systems, and other environments demanding reliable coaxial connector solutions. This product is engineered and manufactured in Germany, upholding stringent quality and performance standards.
Explore more connectors and industrial solutions from Telegartner and browse the full range of Coaxial Connectors at EnvMart for professional signal and data products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This BNC connector has an impedance of 50 Ω, making it suitable for signal, data, and video transmission applications.
The maximum operating frequency for this model is 4 GHz, allowing it to handle high-frequency data transmission effectively.
This connector is designed specifically for RG58C/U cable types, ensuring optimal performance and connectivity.
The operating temperature range for this connector is from -65°C to 165°C, allowing it to function in extreme conditions.
The crimp termination type enables secure and fast assembly, making it ideal for professional installations and maintenance work.
This model features a right angle design, which facilitates installation in confined spaces and complex cable routing.
The contact material is gold-plated beryllium copper alloy, while the body is nickel-plated for enhanced durability and corrosion resistance.
This connector has an IP54 rating when mated, providing moderate protection against dust and moisture in industrial environments.
This connector is suitable for applications in instrumentation, industrial automation, laboratory setups, and broadcast systems.
This connector has a male gender with normal polarity, ensuring versatile compatibility for various applications.
This model is designed for cable mounting and does not support bulkhead mounting, making it suitable for direct cable installations.
The Telegartner BNC connector is engineered and manufactured in Germany, adhering to stringent quality and performance standards.
