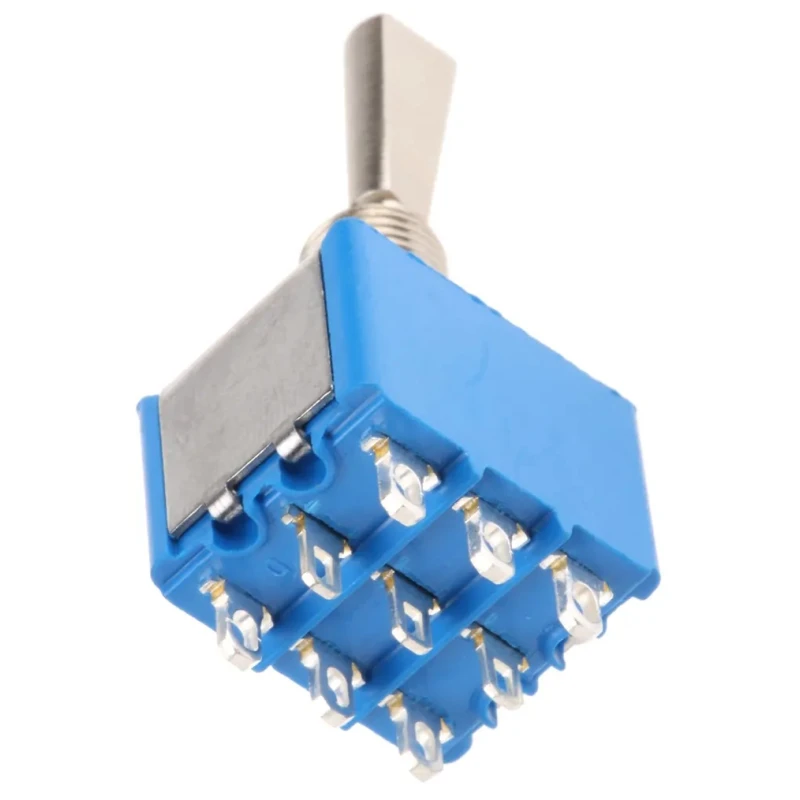

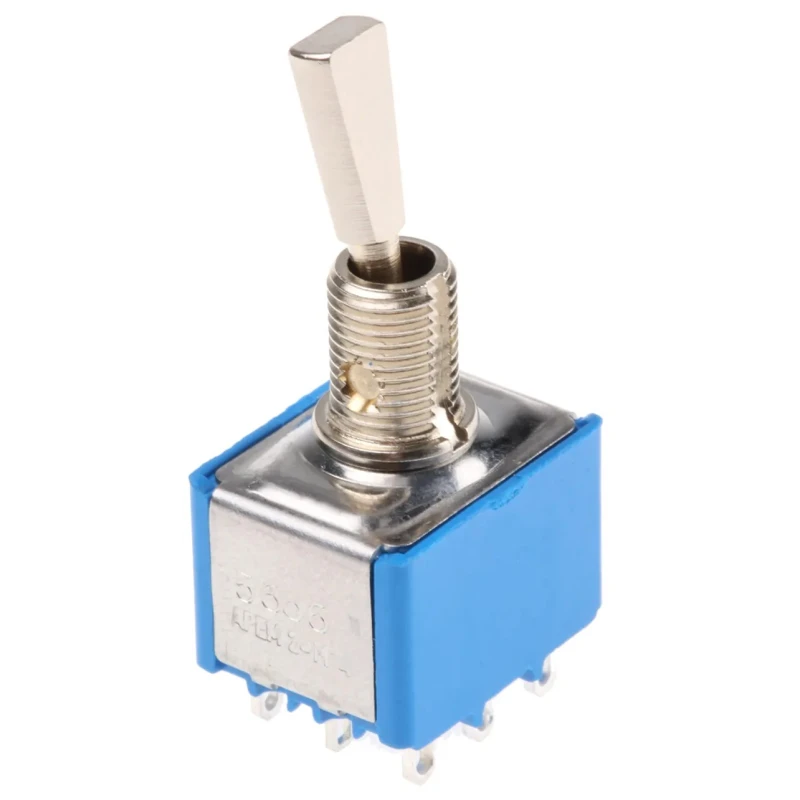

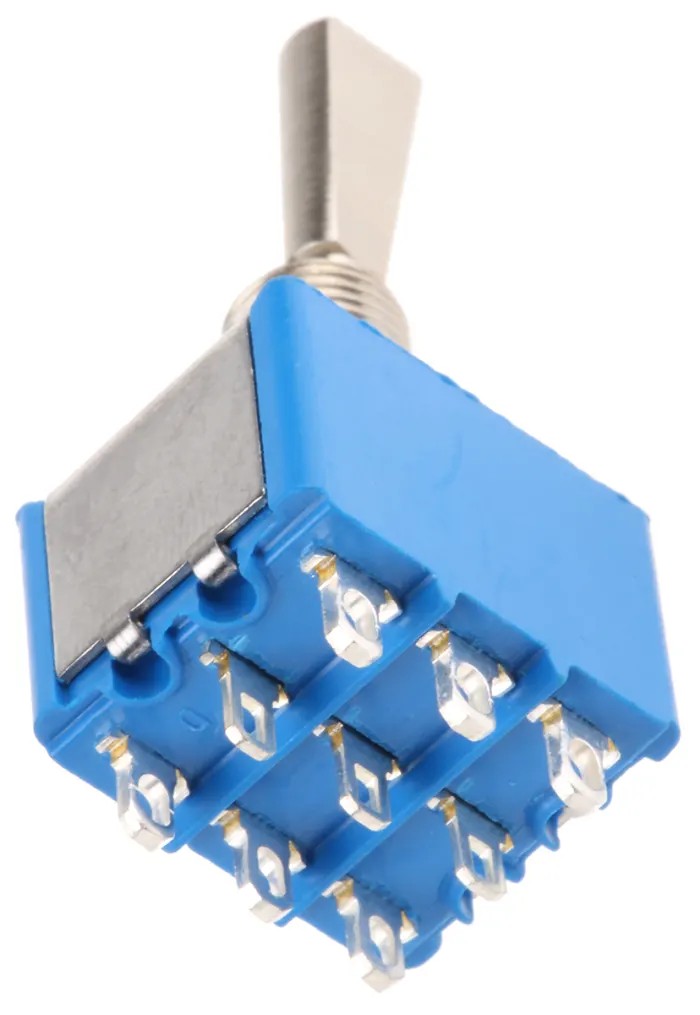

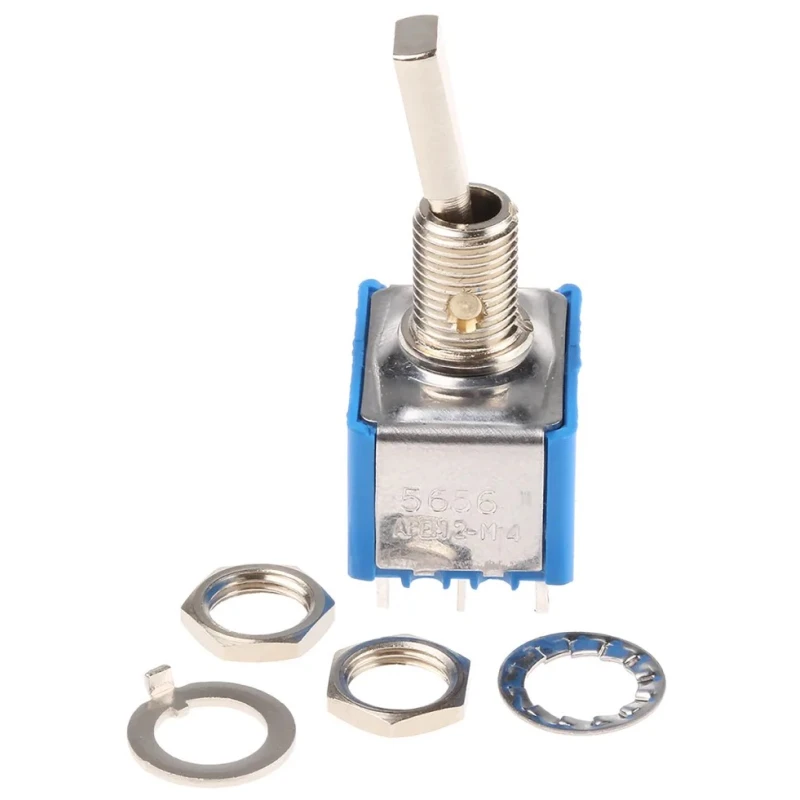

APEM Toggle Switch Panel Mount On-On 3PDT Solder Terminal 30V DC 250V AC 5656A9
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 35.3mm |
| Length | 21.2mm |
| Model | 5656A9 |
| Width | 13.2mm |
| Mount Type | Panel |
| Series | 5000 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 3PDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 6.5 mm |
| Terminal type | Solder |
| Standards/Approvals | CSA, CECC, RoHS, UL |
| Switch Operation | On-On |
| Actuator Length | 11.4mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 4A |
| Mechanical Life | 100000Operations |
| Contact AC Voltage | 250V ac |
| Actuator Material | Brass |
Key Features
- Designed for panel mounting in industrial and commercial applications.
- Features On-On switching operation with 3PDT contact configuration.
- Solder terminals ensure secure and reliable connections.
- Supports both 30V DC and 250V AC, suitable for various voltage standards.
- Robust brass actuator and durable Diallyl Phthalate case construction.
- Mechanical life rated at 100,000 operations for long-term reliability.
- Non-illuminated design, meets UL, CSA, CECC, and RoHS standards.
Product Description
APEM 5656A9 Toggle Switch is engineered for reliable panel mounting in demanding industrial, laboratory, and commercial environments. This switch provides On-On operation with 3PDT (Triple Pole Double Throw) contact configuration, ensuring versatile wiring for complex control circuits.
With solder lug terminals, installation is straightforward and secure, accommodating both 30V DC and 250V AC systems. The switch is constructed using a robust brass actuator and Diallyl Phthalate case, delivering durability and resistance to mechanical wear.
Designed for panel mounting in industrial and commercial applications. Features On-On switching operation with 3PDT contact configuration. Solder terminals ensure secure and reliable connections. Supports both 30V DC and 250V AC, suitable for various voltage standards.
Robust brass actuator and durable Diallyl Phthalate case construction. Mechanical life rated at 100,000 operations for long-term reliability. Non-illuminated design, meets UL, CSA, CECC, and RoHS standards. Compact dimensions: Height 35.3 mm, Length 21.2 mm, Width 13.2 mm.

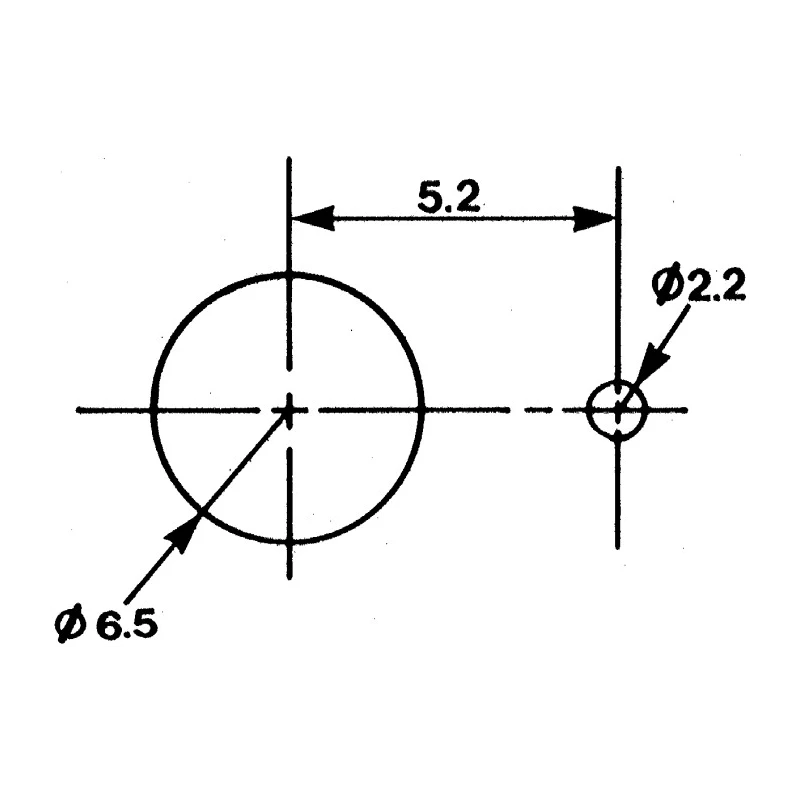

The switch incorporates a panel cut-out size of 6.5 mm and actuator length of 11.4 mm, fitting seamlessly into standard control panels. Its operating temperature range from -40°C to 85°C allows for performance in harsh environments.
Certification to UL, CSA, CECC, and RoHS standards assures compatibility with global regulatory requirements. The On-On configuration provides straightforward operation in automation, instrumentation, and power management systems.
Ideal for applications in electrical panels, automation control, laboratory instruments, and equipment requiring frequent switching operations. Trusted by integrators and OEMs for reliability, longevity, and easy integration.
Browse more Toggle Switches and discover APEM’s industrial switching solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 3PDT (Triple Pole Double Throw) contact configuration, allowing for versatile wiring in control circuits.
It supports a contact DC voltage of 30V and a contact AC voltage of 250V, making it suitable for various voltage standards.
The mechanical life of this switch is rated at 100,000 operations, indicating its longevity in use.
The switch has a height of 35.3 mm, a length of 21.2 mm, and a width of 13.2 mm, making it compact for panel mounting.
It uses solder terminals, which ensure secure and reliable connections during installation.
The operating temperature range is from -40°C to 85°C, allowing it to function in harsh environments.
It meets UL, CSA, CECC, and RoHS standards, ensuring compliance with global regulatory requirements.
The required panel cutout size for this switch is 6.5 mm, facilitating its integration into standard control panels.
The actuator is made of robust brass, contributing to the switch's durability and performance.
It is ideal for applications in electrical panels, automation control, laboratory instruments, and equipment requiring frequent switching operations.
The actuator length is 11.4 mm, which is designed for efficient operation in panel-mounted applications.
This model is designed for panel mounting, making it suitable for various industrial and commercial applications.
