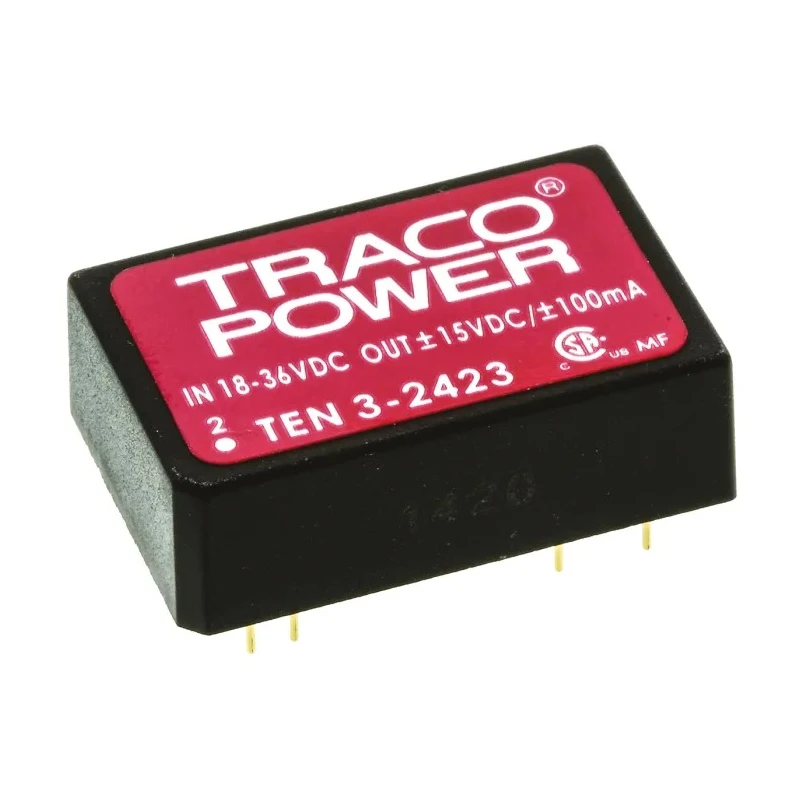

TRACOPOWER DC/DC Converter 15V/-15V, 100mA Dual Output, 3W, PCB Mount, 18 - 36V DC Input, TEN 3-2423

TRACOPOWER TEN 3-2423 DC/DC Converter is engineered to deliver reliable dual output voltages of +15V and -15V at up to 100mA, making it an essential component for precision electronics and industrial systems. Designed for a wide input voltage range of 18 - 36V DC, it seamlessly adapts to variable power supplies and ensures stable regulation for demanding loads.

This converter is housed in a compact PCB-mount DIP-24 package, simplifying integration even in space-constrained PCBs. Its 3W maximum output power efficiency and up to 82% performance minimize energy loss and heat generation, eliminating the need for additional cooling or heatsinks. With standardized pinout, installation is straightforward and compatible with industrial device layouts.

Advanced protection features include indefinite short-circuit protection with automatic self-recovery, as well as input-output isolation up to 1.5kV DC to protect sensitive circuits and prevent electrical surges. The converter's FR4 plastic housing provides durability, non-conductivity, and flame resistance, enhancing operator and equipment safety.

Provides dual regulated DC outputs: +15V and -15V for versatile applications. Supports an input voltage range from 18V to 36V DC, suitable for varied power sources. Compact 3W power rating enables efficient performance without need for external heatsink.

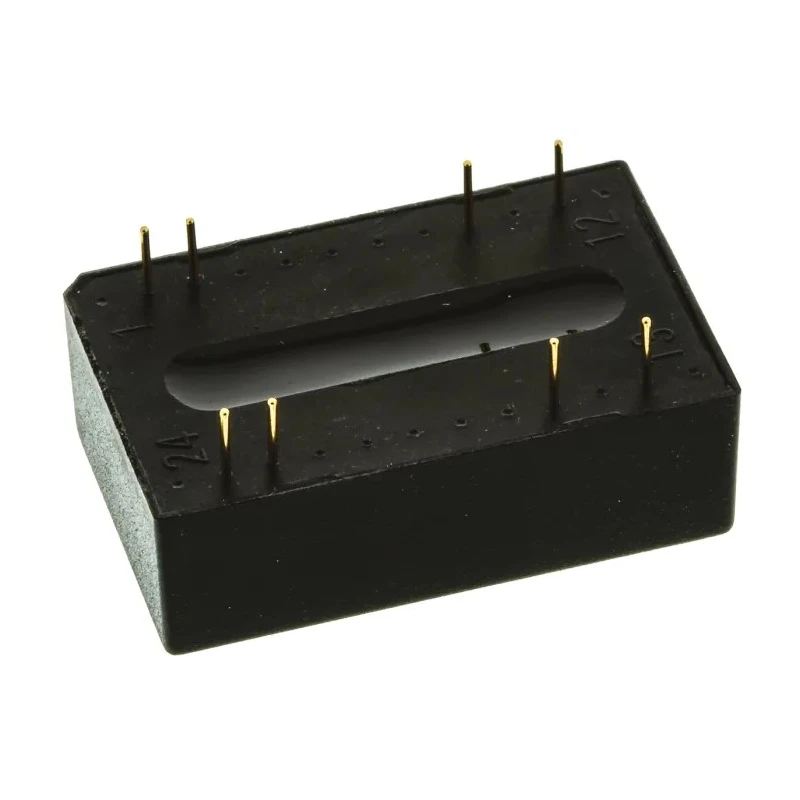

PCB mount, DIP-24 package with industry-standard pinout for easy integration. Extensive short-circuit protection with automatic recovery enhances reliability. Isolation voltage of 1.5kV DC ensures safety and surge resistance.

High efficiency of 82% minimizes power loss and heat build-up. Wide operating temperature range: -40°C to 85°C for robust environments. FR4 plastic housing provides non-conductive, non-flammable safety. MTBF up to 700,000 hours for long service life and low maintenance.

Industrial and laboratory electronics, communication systems, industrial automation, and automotive applications benefit from the TEN 3-2423's robust reliability and precise regulation. With a mean time between failures (MTBF) of up to 700,000 hours, it is ready for continuous operation in demanding environments. Package dimensions are 32mm (L) x 10.2mm (W), and its 24-pin configuration assures widespread PCB compatibility.
