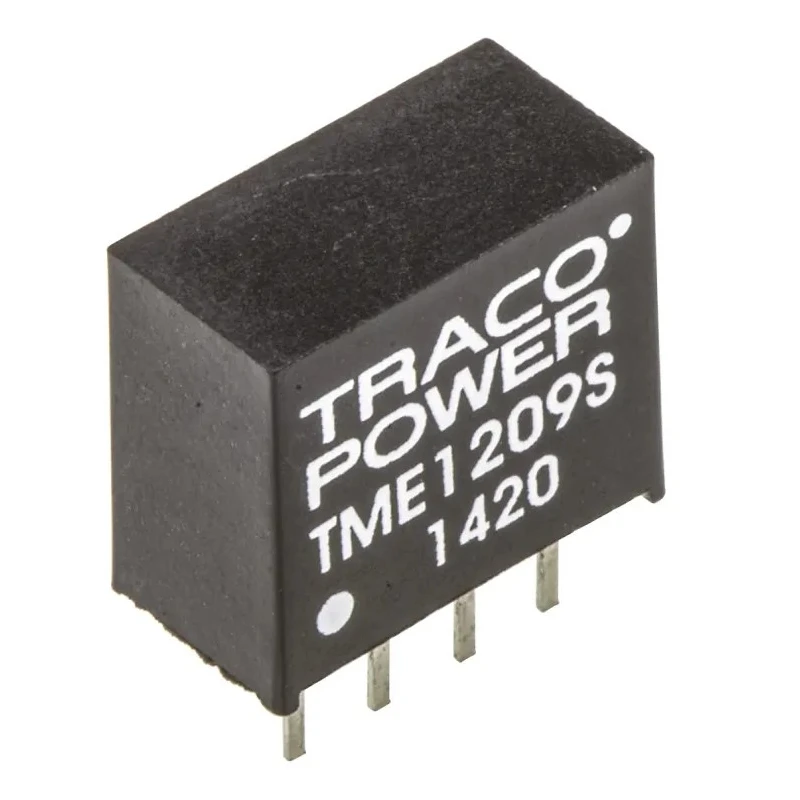

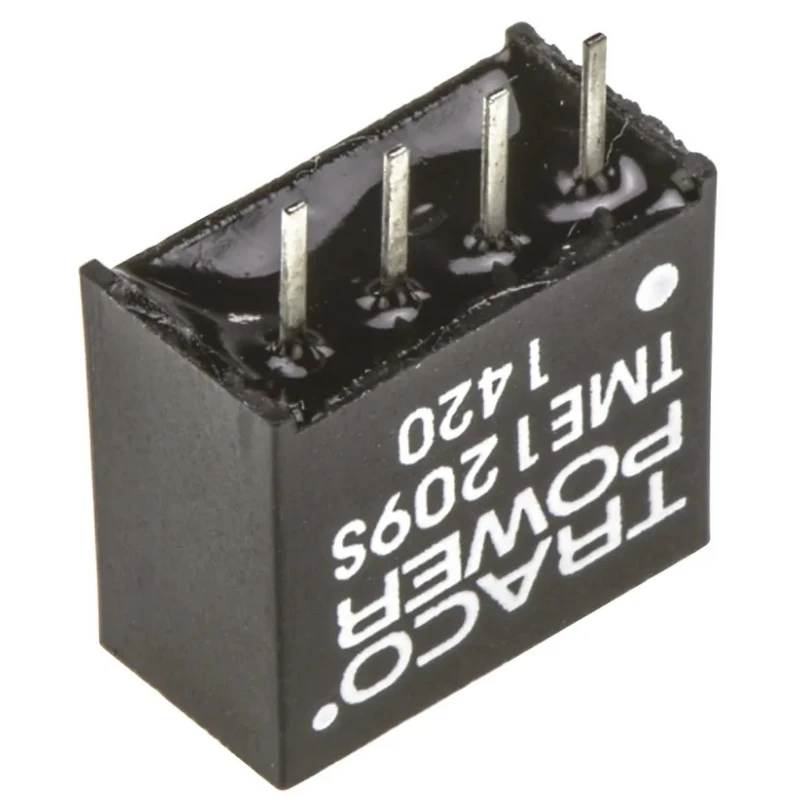

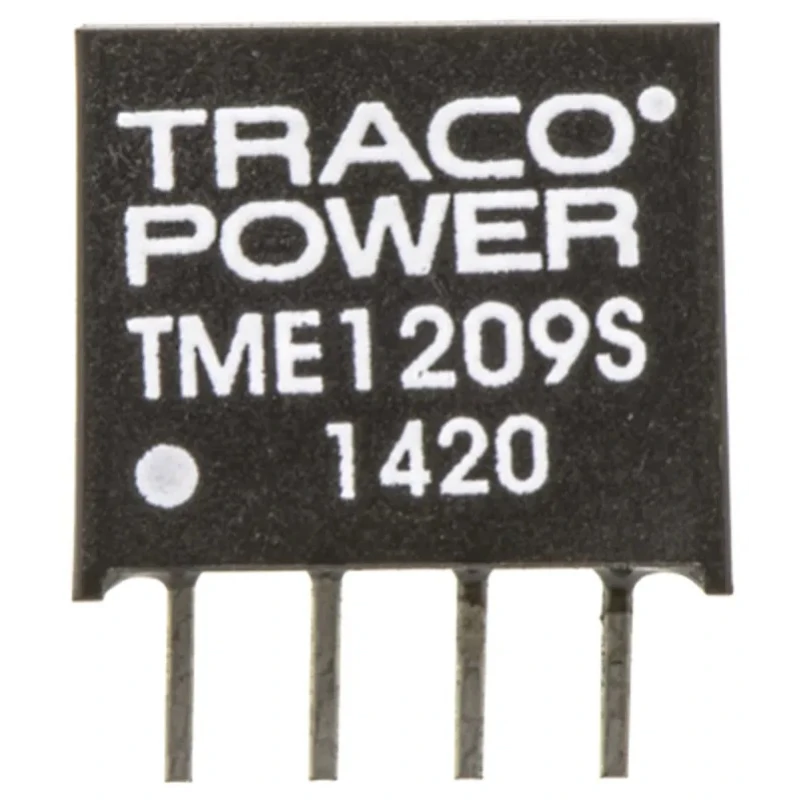

TRACOPOWER DC/DC Converter 1 W, 9V DC/110 mA Output, 10.8 - 13.2V DC Input, Through Hole, -40°C to 85°C, TME 1209S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TME DC/DC Converter, 9V dc/ 110 mA, 13 |
| Brand | TRACOPOWER |
| Efficiency | 77% |
| Length | 11.5mm |
| Model | TME 1209S |
| Depth | 10.2mm |
| Width | 6.1mm |
| Mount Type | Through Hole |
| Series | TME |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 1 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 13.2V dc |
| Minimum Input Voltage | 10.8V |
| Number of Pins | 4 |
| Output Voltage 1 | 9V dc |
| Output Current 1 | 110mA |
| Isolation Voltage | 1kV dc |
Key Features
- Highly compact isolated SIP DC/DC converter for space-critical designs.
- Outputs 9V DC at up to 110 mA with 1 W maximum power output.
- Accepts an input voltage range of 10.8V DC to 13.2V DC, nominally 12V DC.
- Efficient through-hole mounting in DIP package for easy integration on PCBs.
- Offers up to 77% conversion efficiency, reducing power loss.
- Wide operating temperature from -40°C to 85°C ensures suitability for industrial environments.
- Features 1kV DC input/output isolation for circuit protection.
- Supports single output and features short-circuit protection (limited duration).
Product Description
TRACOPOWER TME 1209S DC/DC Converter is engineered to provide reliable and isolated conversion of direct current power in demanding industrial and electronic applications. This converter delivers a precise 9V DC output at a maximum current of 110 mA and is rated for a total output power of 1 W. It operates over an input voltage range from 10.8V DC to 13.2V DC, making it compatible with 12V power rails commonly found in system designs.
Its highly compact SIP (Single Inline Package) form factor and through-hole mounting configuration allow for efficient integration into space-constrained printed circuit boards (PCBs). The TME 1209S features industry-standard pinout and robust construction, including a non-conductive black plastic case rated UL 94-V0 for enhanced safety. The DC-DC Converter is well-suited for use in industrial automation, communications, sensor modules, and distributed board-level power applications.
Output voltage: 9V DC with an output current of up to 110 mA. Input voltage range: 10.8V to 13.2V DC, optimized for nominal 12V sources. Maximum output power: 1 W, supporting small to medium-signal loads. Efficiency up to 77%, reducing energy loss in conversion.
Isolation voltage between input and output: 1,000 VDC for reliable electrical separation. MTBF (Mean Time Between Failures): 2,000,000 hours for long service life. Operating temperature: -40°C to +85°C for use in challenging environments.
Package: 4-pin DIP, with dimensions of 11.5mm (L) x 6.1mm (W) x 10.2mm (D). Reliable short-circuit protection, with a protective time of up to 0.5 seconds. Lead-free and compliant with RoHS requirements.
This product is ideal for industrial, laboratory, power supply, instrumentation, and other demanding environments where efficient, board-level DC voltage conversion and isolation are required. Applications include powering low-power sensors, actuators, and communication modules, as well as providing galvanic isolation to protect downstream circuits.
The package contains one TRACOPOWER TME 1209S DC/DC Converter. For more isolated DC/DC converter options or to browse additional power supply solutions, explore related categories and the TRACOPOWER brand on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a 9V DC output at a maximum current of 110 mA.
The TME 1209S operates over an input voltage range of 10.8V DC to 13.2V DC, optimized for nominal 12V sources.
It is rated for a maximum output power of 1 W, suitable for small to medium-signal loads.
The converter offers an efficiency of up to 77%, reducing energy loss during conversion.
This model has dimensions of 11.5mm in length, 6.1mm in width, and 10.2mm in depth.
It features a through-hole mounting configuration, allowing for easy integration on PCBs.
The isolation voltage between input and output is 1,000 VDC, providing reliable electrical separation.
It operates effectively in a wide temperature range from -40°C to +85°C, suitable for industrial environments.
This converter has a single output.
It includes short-circuit protection with a limited duration of up to 0.5 seconds.
The MTBF for the TME 1209S is rated at 2,000,000 hours, indicating a long service life.
The country of origin for this product is Taiwan.
