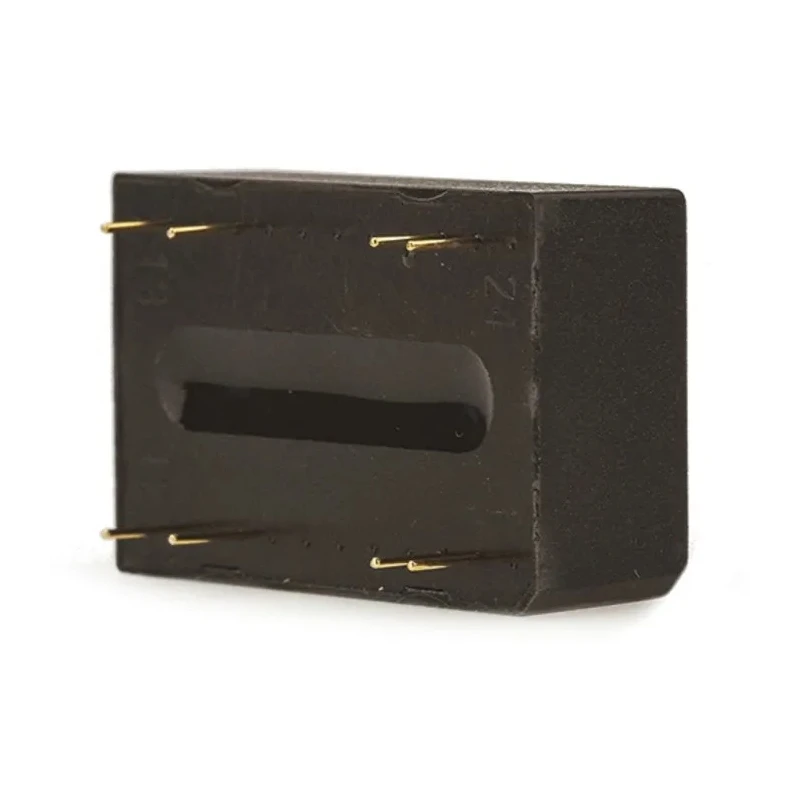

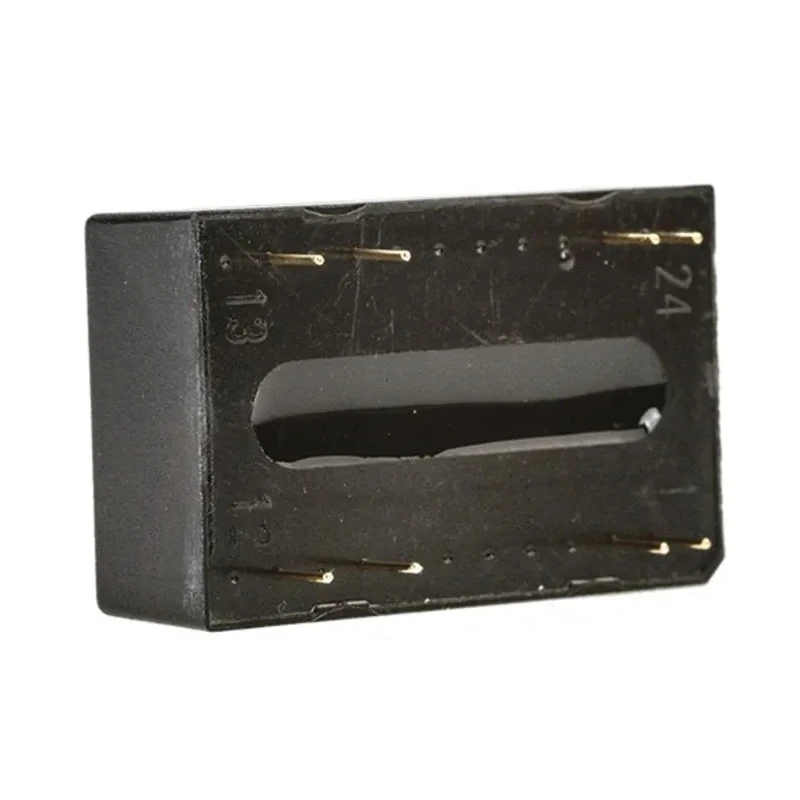

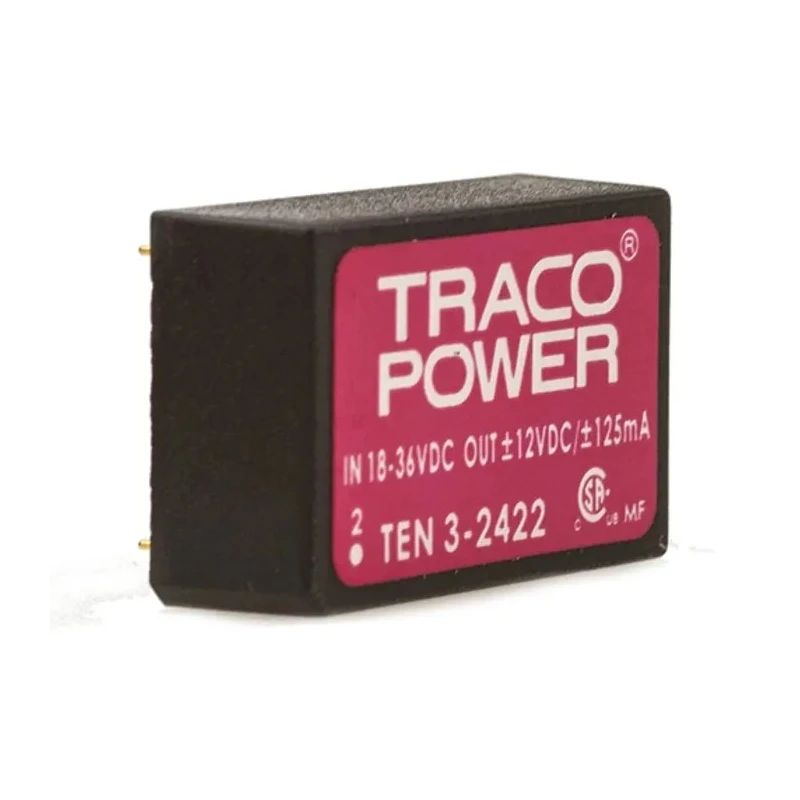

TRACOPOWER DC/DC Converter 12V, -12V 125mA Dual Output PCB Mounted, 18 - 36V Input Range, 3W, Surface Mount, TEN 3-2422
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 3 DC/DC Converter, 12V, -12 V/ 125 |
| Brand | TRACOPOWER |
| Efficiency | 82% |
| Length | 32mm |
| Model | TEN 3-2422 |
| Depth | 10.2mm |
| Width | 20.3mm |
| Mount Type | PCB |
| Series | TEN 3 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 700000h |
| Number of outputs | 2 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 12, -12V |
| Output Current 1 | 125mA |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
Key Features
- Dual output voltages of 12V and -12V for versatile powering requirements.
- Wide 18V to 36V DC input range suitable for various industrial power sources.
- Delivers up to 125mA current per output channel with 3W total power capacity.
- PCB surface mount format streamlines integration into compact electronic assemblies.
- High efficiency rated at 82%, supports reliable operation and reduced energy loss.
- Isolation voltage of 1.5kV DC enhances electrical safety in demanding environments.
- Operational temperature range from -40°C to +85°C, enabling robust performance.
- Includes short-circuit and overvoltage protection for safe, continuous operation.
Product Description
The TRACOPOWER TEN 3-2422 DC/DC Converter is a robust, dual-output power solution designed for a wide range of industrial and electronic applications. With the ability to supply both +12V and -12V output at up to 125mA each, it supports PCB-based projects that require reliable bipolar power rails for analog circuits, data acquisition systems, and precision sensors.
This converter accepts an input voltage range of 18V to 36V DC, making it ideal for systems operating on standard industry bus voltages including 24V DC. Its efficient conversion capabilities allow up to 3W of total output power. The surface mount package type and 24-pin configuration streamline integration onto PCBs, simplifying hardware design and assembly processes.
Dual output voltages of 12V and -12V for analog and digital circuitry. 3W maximum power supports mid-power device requirements. PCB mounting and surface-mount format provides a compact footprint. High efficiency (82%) reduces thermal load and saves energy.
Input voltage ratio 2:1 offers flexibility for various source voltages. Isolation voltage up to 1.5kV DC for enhanced safety in power architecture. Continuous short-circuit and overvoltage protection safeguards devices. Temperature operation from -40°C to +85°C supports harsh environments.
With EMI filtering and maximum ripple/noise of 60mVp-p, the TEN 3-2422 is well-suited for sensitive industrial and laboratory electronics, server rooms, cleanrooms, automation systems, and test boards. Flame-retardant potting and long MTBF (700,000 h) further enhance reliability and operational safety.
This DC/DC converter is a preferred choice for designers seeking highly reliable bipolar power in compact modules, and it is frequently used in controlling devices, signal conditioning equipment, and isolated supplies in medical and measurement setups.
Browse more DC-DC Converters from TRACOPOWER on EnvMart for innovative power management solutions in your industrial, laboratory, manufacturing, and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 18V to 36V DC.
It provides dual output voltages of +12V and -12V.
The maximum output power of this converter is 3W.
This model has an efficiency rating of 82%.
The isolation voltage is rated at 1.5kV DC.
The dimensions are 32mm in length, 20.3mm in width, and 10.2mm in depth.
The operational temperature range is from -40°C to +85°C.
It has two outputs, providing both +12V and -12V.
This converter supports PCB mounting in a surface mount package type.
It includes short-circuit and overvoltage protection for safe operation.
The MTBF for the TEN 3-2422 is rated at 700,000 hours.
It is suitable for industrial and electronic applications requiring reliable bipolar power rails, such as analog circuits and data acquisition systems.
