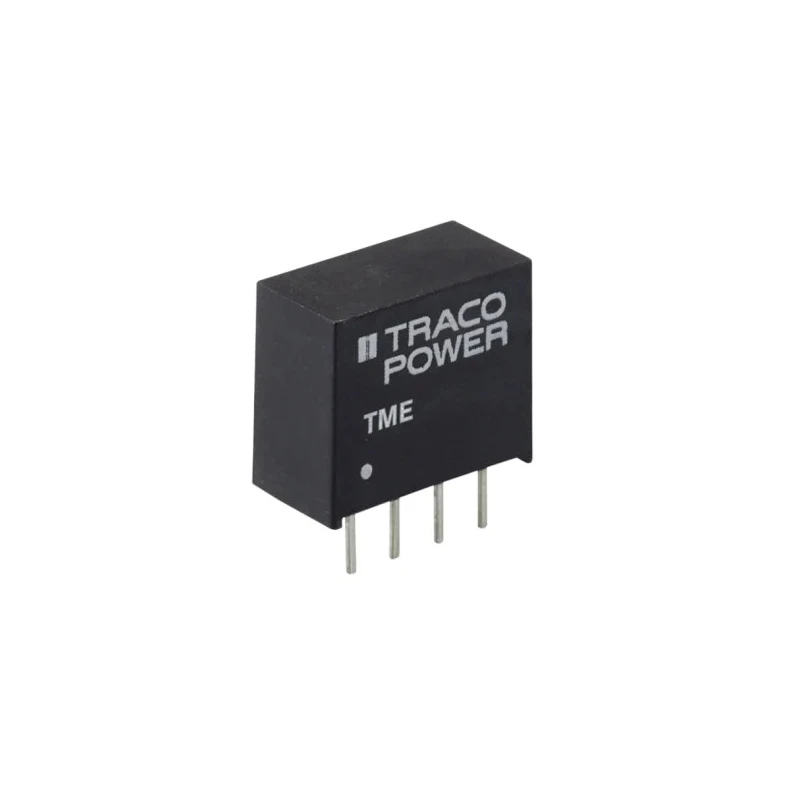

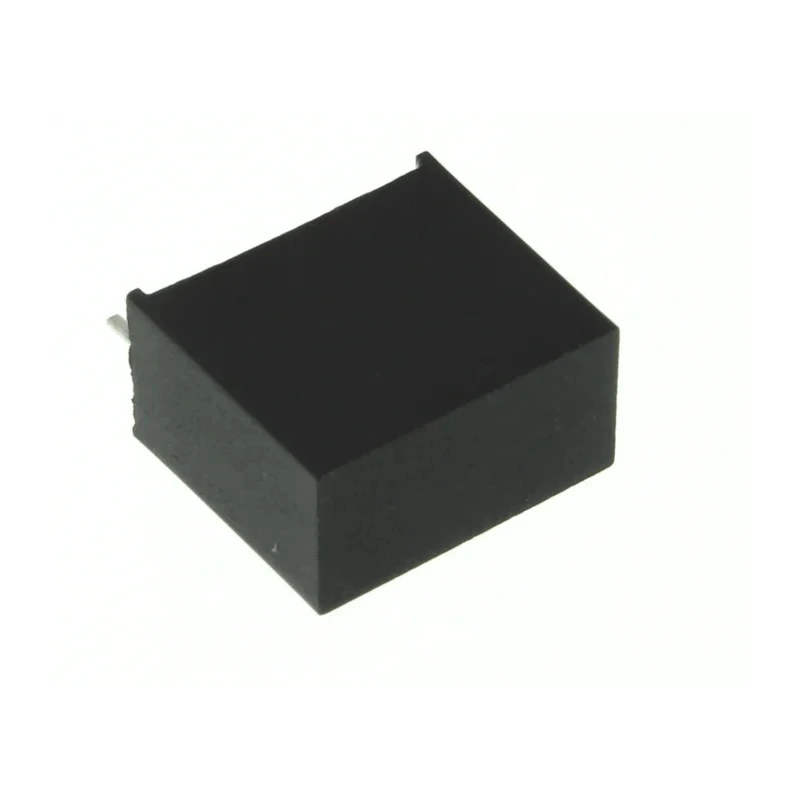

TRACOPOWER DC/DC Converter 9V DC Output 110mA 1W SIP4 Through Hole TME 0509S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TME DC/DC Converter, 9V dc/ 110 mA, 5 |
| Brand | TRACOPOWER |
| Efficiency | 76% |
| Length | 11.5mm |
| Model | TME 0509S |
| Depth | 10.2mm |
| Width | 6.1mm |
| Mount Type | Through Hole |
| Series | TME |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Load Regulation | 1.5 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 1 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5.5V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 4 |
| Output Voltage 1 | 9V dc |
| Output Current 1 | 110mA |
| Isolation Voltage | 1kV dc |
| TME0509S unregulated DC-DC,9V 1WBrand | TRACOPOWER |
Key Features
- Compact DC/DC converter offering 9V DC output at 110mA from a 4.5 - 5.5V input range.
- Delivers high efficiency with 76% typical, reducing energy loss in electronic applications.
- SIP4 package for easy through-hole mounting and integration in circuit boards.
- Isolation voltage of 1kV DC ensures electrical safety and reliability.
- Operational temperature range from -40°C to 85°C supports use in demanding environments.
- Supports 1W maximum output power for low to moderate loads.
- Stable performance with load regulation of 1.5% and MTBF of 2 million hours.
- Suitable for industrial automation, communication devices, and test & measurement equipment.
Product Description
TRACOPOWER TME 0509S is a high-efficiency DC/DC Converter designed for demanding industrial and electronic applications. Delivering a regulated 9V DC output at 110mA, this converter operates from a 4.5 - 5.5V DC input, supporting up to 1W output power. Its SIP4 package with through-hole mounting ensures ease of integration and flexibility in circuit board layouts.
This model features an isolation voltage of 1kV DC for safety, supporting robust operation across a wide temperature range from -40°C to 85°C. With an efficiency rating of 76%, it minimizes energy loss while guaranteeing reliable performance for critical systems such as automation controllers, communication devices, and test measurement instruments.
The converter stands out for its compact footprint (11.5mm x 6.1mm x 10.2mm), stable load regulation of 1.5%, and MTBF of over two million hours, making it well-suited for continuous operation in commercial and industrial environments. Its single-output design is optimized for precise voltage regulation on sensitive circuit boards, including those for medical and safety applications where electrical isolation is essential.
Mounting and installation are streamlined thanks to the SIP4 package, allowing quick integration and minimizing board space requirements. The device is engineered for reliable performance with a consistent output and efficient conversion even under variable input voltages.
Compact DC/DC converter providing 9V DC output at 110mA. Operates from 4.5 to 5.5V input voltage range and offers 1W power. High efficiency (76%) reduces heat and maximizes component lifespan. Electrical isolation up to 1kV DC for safe operation.
Through-hole SIP4 design for straightforward circuit incorporation. Wide operating temperature from -40°C to 85°C. Long MTBF (2,000,000 hours) suits industrial, laboratory, and communication uses. Load regulation of 1.5% assures stable voltage output under varying load conditions.
Applications include powering communication devices, automation systems, test equipment, and medical electronics needing isolated power channels. The TME 0509S is valued for its reliability, safety, and precision, making it a go-to component for many commercial and technical projects.
Explore more DC-DC Converters from TRACOPOWER and browse related power management and automation categories on EnvMart for industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 9V DC and a maximum output current of 110mA.
The converter operates with an input voltage range of 4.5V to 5.5V DC.
It supports a maximum output power of 1W.
The efficiency of the TME 0509S is rated at 76%, which helps reduce energy loss.
The dimensions of this model are 11.5mm in length, 6.1mm in width, and 10.2mm in depth.
It features an isolation voltage of 1kV DC, ensuring electrical safety.
This model operates within a temperature range of -40°C to 85°C.
It has a load regulation of 1.5%, providing stable voltage output under varying load conditions.
This converter features a SIP4 package, designed for through-hole mounting.
The TME 0509S has a mean time between failures (MTBF) of 2 million hours.
It is suitable for industrial automation, communication devices, and test & measurement equipment.
This model has a single output design.
