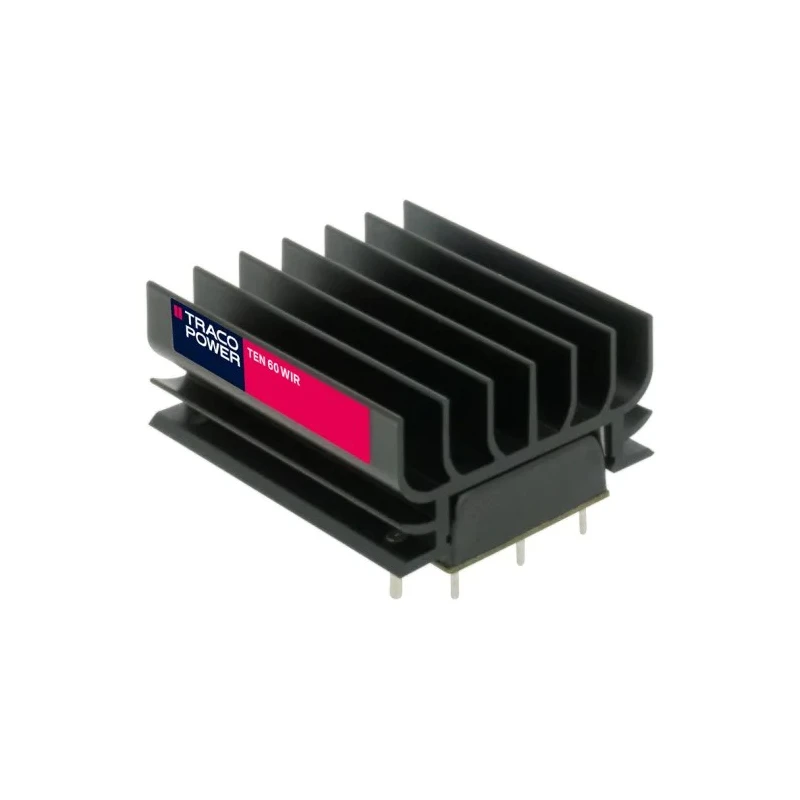

TRACOPOWER DC/DC Converter 48V DC 1.25A Output, 9 - 36V DC Input, 60W, PCB Mount, -40°C to 90°C, High Efficiency TEN 60-2418WIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEP 60WIR DC/DC Converter, 48V dc/ 1 |
| Brand | TRACOPOWER |
| Efficiency | 92% |
| Length | 50.8mm |
| Model | TEN 60-2418WIR |
| Depth | 25.4mm |
| Gross Weight | 66.9g |
| Width | 40.7mm |
| Mount Type | PCB |
| Series | TEP 60WIR |
| Maximum Operating Temperature | 90°C |
| Package Type | Encapsulated |
| Minimum Operating Temperature | -40°C |
| MTBF | 724500h |
| Number of outputs | 1 |
| Ripple and Noise | 300mV Pk-Pk |
| Maximum Output Power | 60W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 8 |
| Output Voltage 1 | 48V dc |
| Output Current 1 | 1.25A |
| Isolation Voltage | 3kV |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
Key Features
- Operates with an input voltage of 9 - 36V DC.
- Provides a stable output voltage of 48V DC at 1.25A.
- Delivers a maximum output power of 60W for demanding applications.
- High efficiency rated up to 92% reduces energy loss.
- PCB mountable encapsulated package ensures robust integration.
- Features an isolation voltage of 3kV for enhanced electrical safety.
- Wide temperature operating range from -40°C to 90°C.
- Designed primarily for railway, industrial, and automation sectors.
Product Description
TRACOPOWER TEN 60-2418WIR DC/DC Converter is engineered to provide reliable and efficient voltage conversion for demanding industrial, railway, and automation applications. This converter supports a wide input voltage range from 9V to 36V DC, delivering a regulated 48V DC output at 1.25A, with a maximum output power of 60W. Its encapsulated PCB mount design ensures secure installation and protection against environmental stress.
Operates with an input voltage of 9 - 36V DC. Provides a stable output voltage of 48V DC at 1.25A. Delivers a maximum output power of 60W for demanding applications. High efficiency rated up to 92% reduces energy loss. PCB mountable encapsulated package ensures robust integration.
Features an isolation voltage of 3kV for enhanced electrical safety. Wide temperature operating range from -40°C to 90°C. Designed primarily for railway, industrial, and automation sectors. Output voltage adjustment range of ±10% using external trim resistor.
Compact dimensions: 50.8mm (L) x 40.7mm (W) x 25.4mm (D).
Featuring an MTBF of over 724,500 hours, the TEN 60-2418WIR guarantees long-term stability and dependability in critical setups. Isolation voltage up to 3kV safeguards sensitive equipment. Ripple and noise are restrained to 300mV peak-to-peak to ensure clean power delivery.
Applications span railway infrastructure power conditioning, control systems, transportation automation, industrial control panels, and wherever resilient DC/DC conversion is required. The adjustable output allows customization to varied load needs, while the encapsulated build protects against dust and vibration.
Operating within a temperature range from -40°C to 90°C, this converter is suitable for extreme environments. Its small footprint (50.8 mm x 40.7 mm x 25.4 mm) is ideal for integration in confined spaces, supporting advanced circuit designs.
Browse more DC-DC Converters and TRACOPOWER products on EnvMart to meet your industrial electronics requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with an input voltage range of 9V to 36V DC.
It provides a stable output voltage of 48V DC at a current of 1.25A.
The maximum output power is 60W, suitable for demanding applications.
This unit has a high efficiency rating of up to 92%, which reduces energy loss.
The dimensions are 50.8mm in length, 40.7mm in width, and 25.4mm in depth.
It features an isolation voltage of 3kV, enhancing electrical safety.
The operating temperature range is from -40°C to 90°C.
The ripple and noise are restrained to 300mV peak-to-peak, ensuring clean power delivery.
It is designed for PCB mounting, which ensures robust integration.
It is primarily designed for railway, industrial, and automation sectors.
The MTBF is over 724,500 hours, indicating long-term stability and dependability.
This model has one output.
