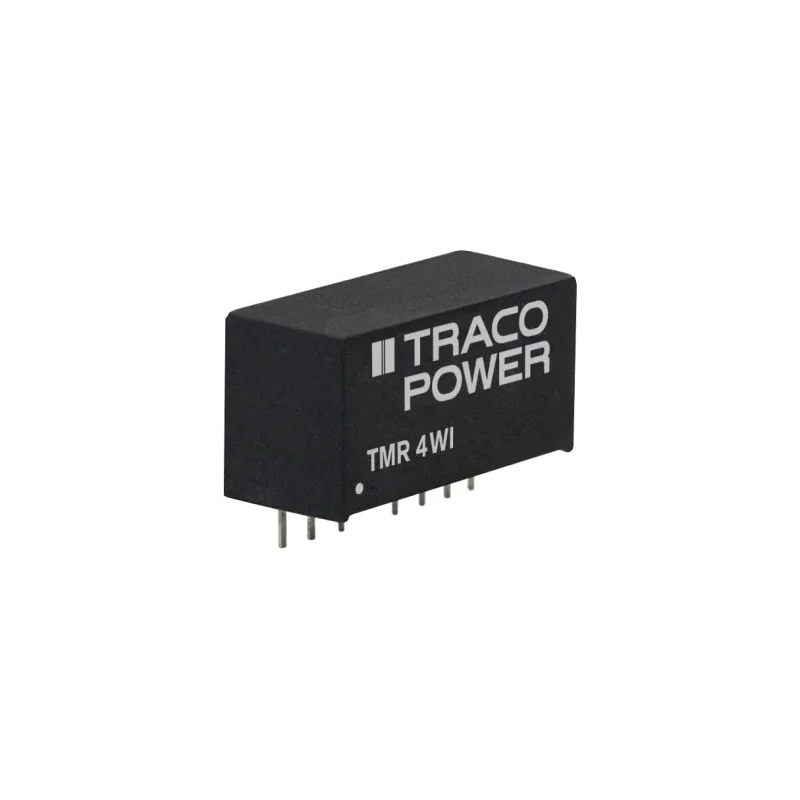

TRACOPOWER DC/DC Converter 15V DC / 133mA, -15V DC Output, 36V DC Max Input, 9V Min Input, 4W, Through Hole TMR 4-2423WI

TRACOPOWER TMR 4-2423WI DC/DC Converter is a high-performance industrial power module providing dual output voltages of +15V DC and -15V DC, both rated at 133mA maximum output current. Designed to accommodate demanding PCB designs, it features a wide 4:1 input voltage range, operating from 9V to 36V DC, enabling versatile integration in complex electronic systems across industrial, laboratory, and automation applications.

Offering a through-hole mount in a compact SIP-8 package, the converter supports up to 4W continuous output power without derating, making it ideal for projects where reliability, efficient power management, and isolation are crucial. Its robust electrical isolation of 1.6kV safeguards sensitive equipment and ensures stable operation in challenging environments.

Output voltages of +15V DC and -15V DC with 133mA current. Supports a wide 4:1 input voltage range from 9V to 36V DC. Maximum output power of 4W suitable for demanding applications. Mounts as a through-hole device in SIP-8 package for PCB integration.

Features high isolation voltage of 1.6kV for enhanced electrical safety. Guaranteed operating temperature range from -40°C up to 70°C. Ripple and noise rated at 80mV peak-to-peak. Efficiency rated up to 83% for energy savings.

Protection against short-circuit and overload conditions included. Compact form factor with dimensions of 21.8mm (L) x 9.3mm (W) x 11.2mm (D).

This converter series is specifically engineered for use in industrial control systems, instrumentation, measurement equipment, and automation technology. Its longevity and rugged build are backed by an MTBF of 2,860,000 hours, supporting continuous operation during extended deployments. The SIP-8 package enables easy assembly on standard PCB layouts, while the fully regulated outputs and remote On/Off control allow flexible power management strategies.

TRACOPOWER converters are recognized for their RoHS compatibility and assure compliance with modern safety and environmental standards. The TMR 4-2423WI is manufactured in Taiwan, ensuring quality and precision for high-throughput environments. This module offers a cost-effective solution for bridging the performance gap between typical 3W and 6W DC/DC converters, delivering reliability and efficiency for power supply systems.

Suitable for deployment in electronics manufacturing, laboratory instrumentation, programmable logic controllers, sensors, and communication devices. Its robust design and wide temperature range allow operation in harsh environments, such as industrial automation, process control, and HVAC systems.
